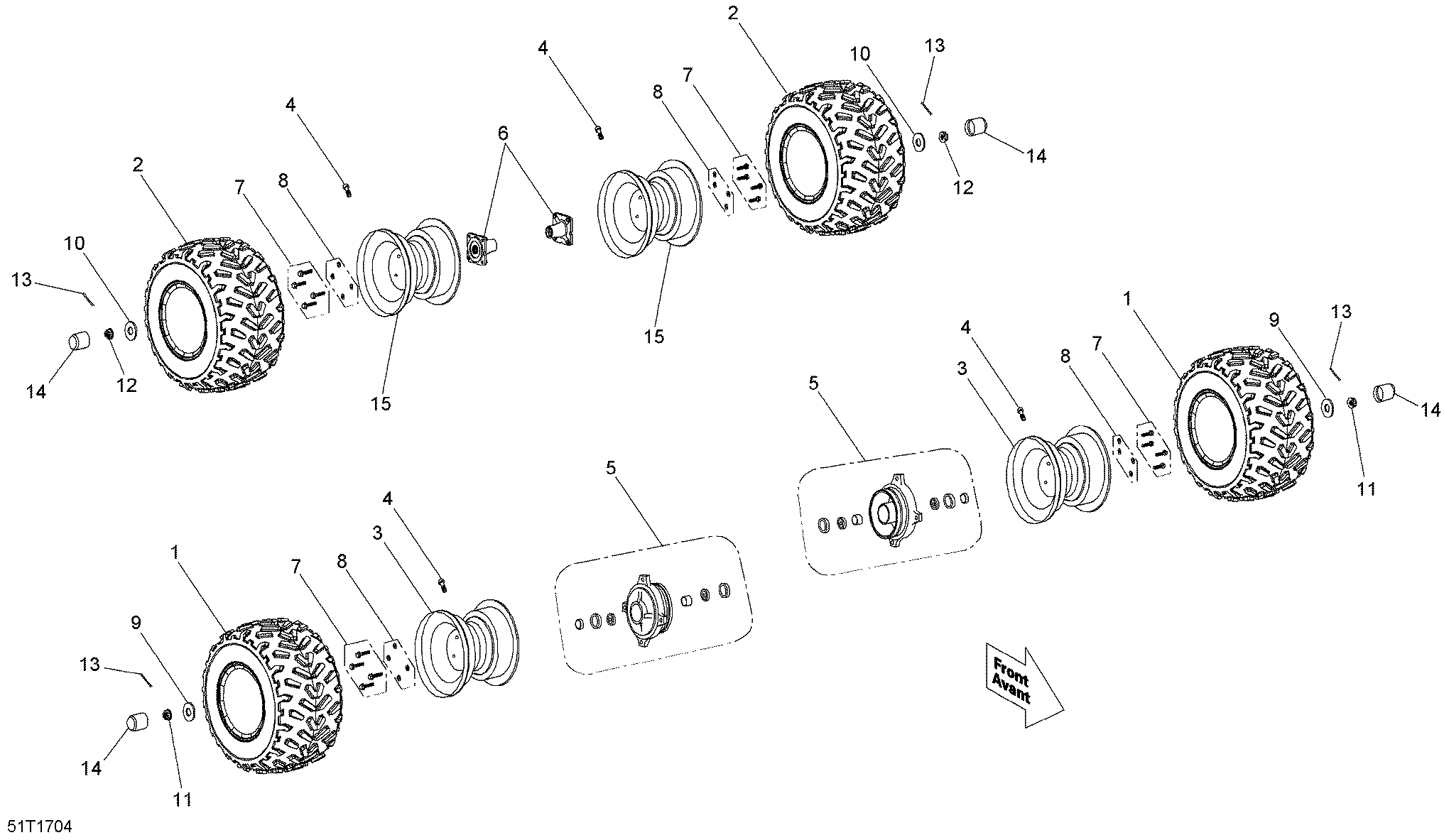

07- Wheels And Tires для BRP 1- DS 70 - 2019
-
№АртикулНазвание
-
1V42711DGF000LL Front TireFront Tire
-
2V42712DGF010LL Rear TireRear Tire
-
3V42707DGF020LL Black Front RimBlack Front Rim
-
4V42751MAA000LL Rim ValveRim Valve
-
5V44610MAA00GSL Front HubFront Hub
-
6V44630MAA00GSL Rear Wheel Axle Fixed BracketRear Wheel Axle Fixed Bracket
-
7V9200010020 Bolt M10 X 20Bolt M10 X 20
-
8234101601 Helicoidal Lock Washer M10Helicoidal Lock Washer M10
-
9V55001MAA000LL Front Wheel WasherFront Wheel Washer
-
10V55002MAA010LL WasherWasher
-
11V9405112000 Castle Nut M12Castle Nut M12
-
12V9405214000LL Castle Nut M14Castle Nut M14
-
13V9420130032LL Cotter PinCotter Pin
-
14V53456DGF010LL Rubber CapRubber Cap
-
15V40706DGF020LL Black Rear RimBlack Rear Rim
