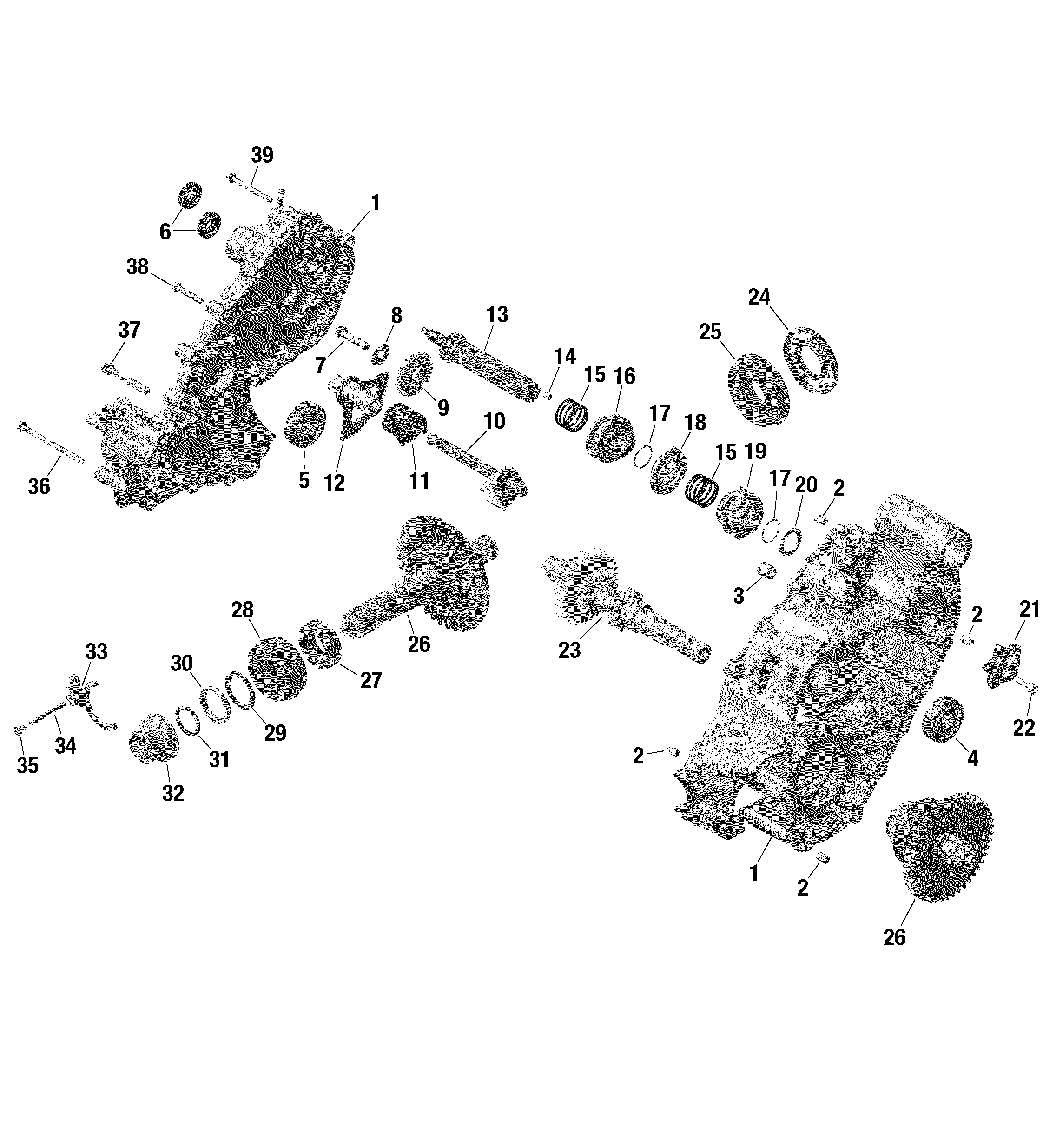

05- Gear Box 1 - 420686565 - North Edition для BRP 008 - Outlander MAX 850 EFI - North America - 2020
-
№АртикулНазвание
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
4420932816 Ball BearingBall Bearing
-
5420932433 Ball Bearing 6204Ball Bearing 6204
-
6420250452 Oil SealOil Seal
-
7420440861 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
8420227937 Plain WasherPlain Washer
-
9420620922 Shift Shaft Ass'y. Includes 9 to 12Shift Shaft Ass'y. Includes 9 to 12
-
13420657235 Shifting Drum Ass'y. Includes 13 to 20Shifting Drum Ass'y. Includes 13 to 20
-
22420241939 Allen Screw M6 X 20Allen Screw M6 X 20
-
23420637708 CountershaftCountershaft
-
24420831956 Oil SealOil Seal
-
32420257674 Shifting SleeveShifting Sleeve
-
33420257606 Shifting ForkShifting Fork
-
34420832650 Needle PinNeedle Pin
-
35420841581 Hex Screw M6 X 8Hex Screw M6 X 8
-
36420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
37420641213 Flanged Torx Screw M8 X 55Flanged Torx Screw M8 X 55
-
38420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
39420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
