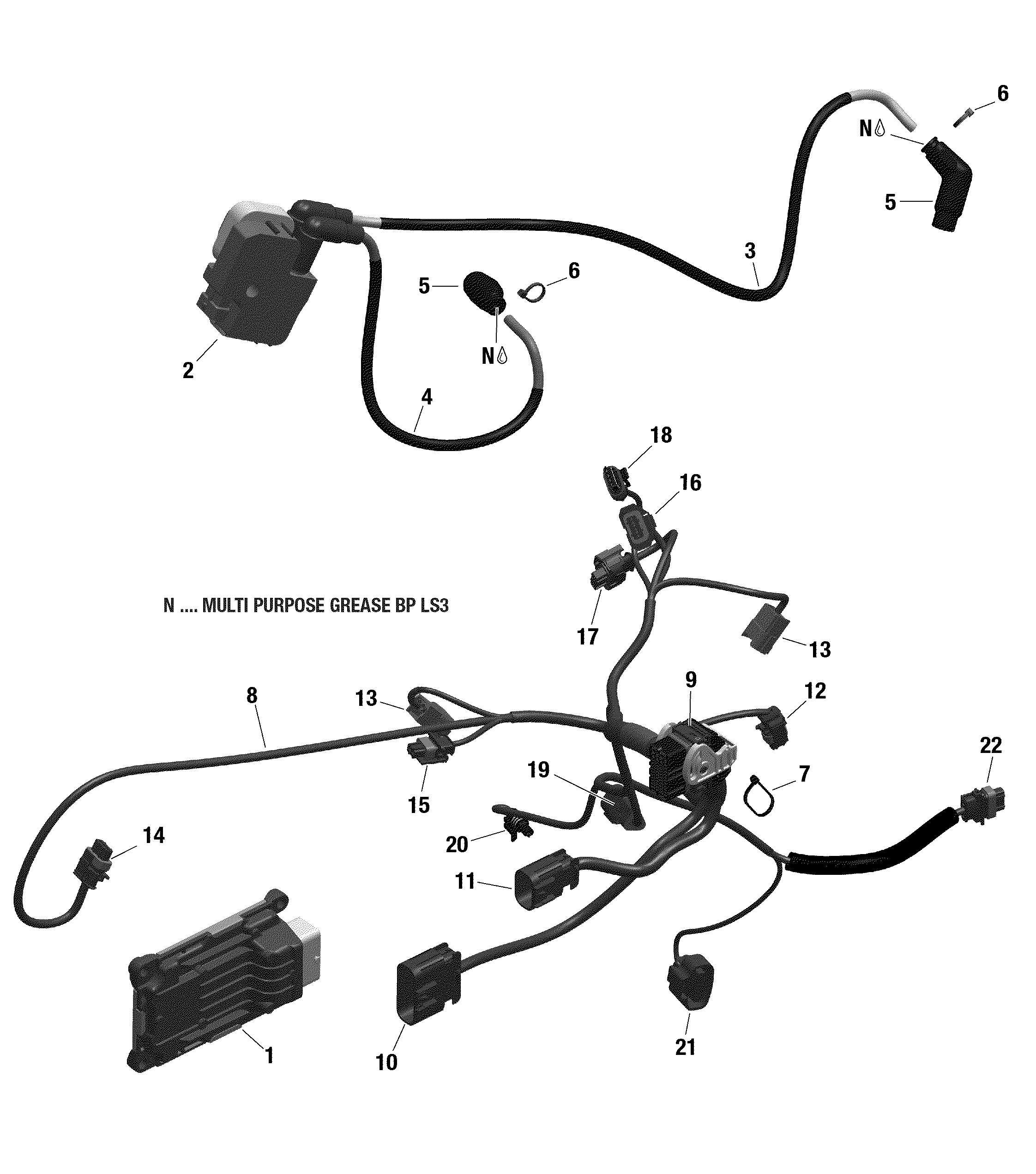

10- Engine Harness And Electronic Module - 850 EFI - North Edition Only для BRP 008 - Outlander MAX 850 EFI - North America - 2020
-
№АртикулНазвание
-
1420464350 ECU ModuleECU Module
-
1420464355 ECU ModuleECU Module
-
2278001546 Ignition CoilIgnition Coil
-
3420464166 Spark Plug Cable, 570 mm, PTO SideSpark Plug Cable, 570 mm, PTO Side
-
4420464155 Spark Plug Cable, 315 mm, MAG SideSpark Plug Cable, 315 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8>23420265956 Wiring HarnessWiring Harness
-
10710001227 HousingHousing
-
11710001927 HousingHousing
-
12278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
14278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
15278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
16278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
19278002378 Male HousingMale Housing
-
21710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
22278001007 Insulated SheathInsulated Sheath
-
22278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
