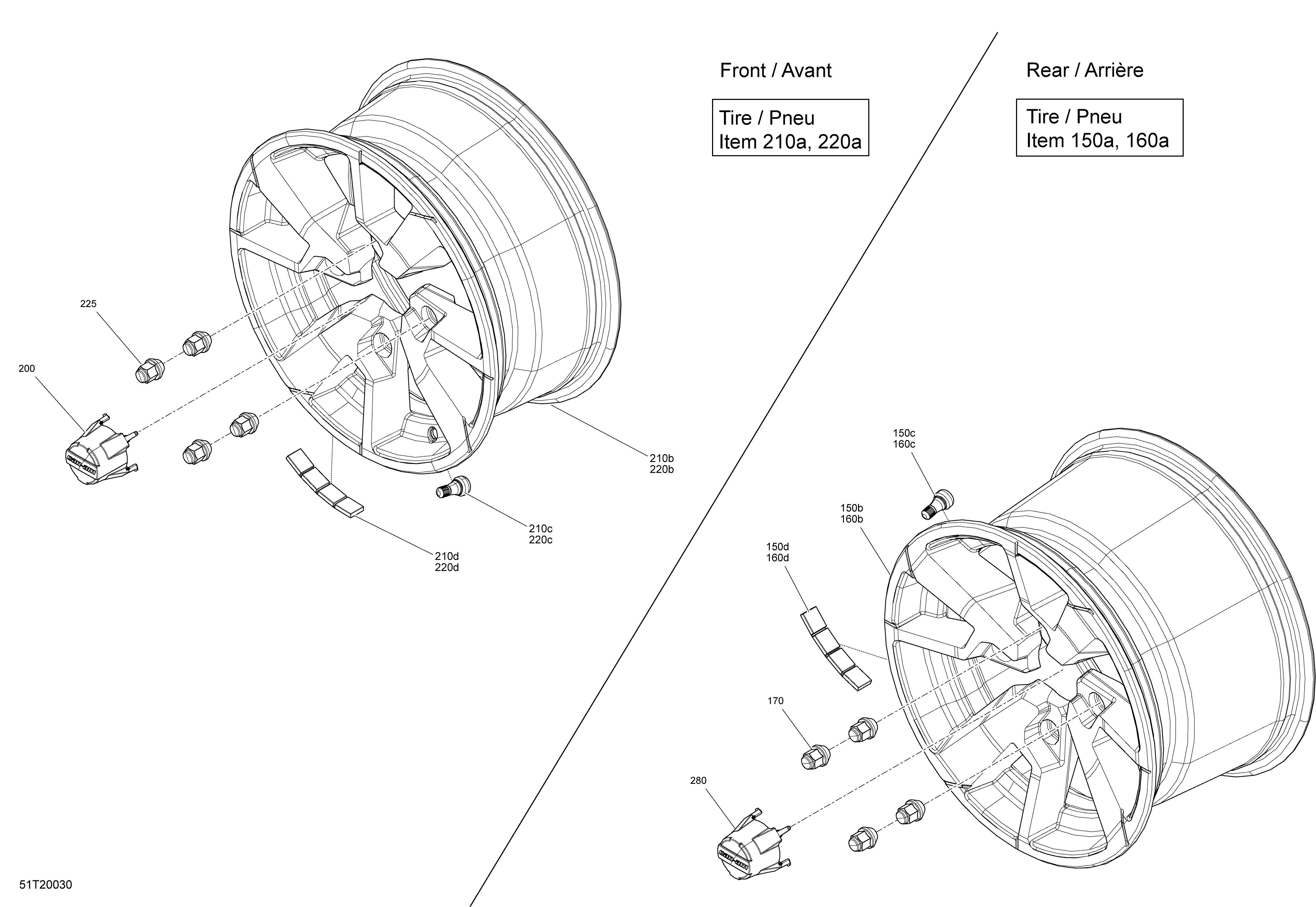

07- Wheels - North Edition для BRP 008 - Outlander MAX 850 EFI - North America - 2020
-
№АртикулНазвание
-
200705400928 Wheel CapWheel Cap
-
150a705502421 TireTire
-
150b705502770 Rear WheelRear Wheel
-
150c705402595 Valve Tire AssyValve Tire Assy
-
150d705501385 1/2 OZ Weight1/2 OZ Weight
-
160a705502421 TireTire
-
160b705502770 Rear WheelRear Wheel
-
160c705402595 Valve Tire AssyValve Tire Assy
-
160d705501385 1/2 OZ Weight1/2 OZ Weight
-
170250100185 Chrome Wheel Nut M10 X 1.25Chrome Wheel Nut M10 X 1.25
-
210a705401906 Front TireFront Tire
-
210b705402307 Front WheelFront Wheel
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d705501385 1/2 OZ Weight1/2 OZ Weight
-
220a705401906 Front TireFront Tire
-
220b705402307 Front WheelFront Wheel
-
220c705400193 Rim Valve With CapRim Valve With Cap
-
220d705501385 1/2 OZ Weight1/2 OZ Weight
-
225250100185 Chrome Wheel Nut M10 X 1.25Chrome Wheel Nut M10 X 1.25
-
280705400928 Wheel CapWheel Cap
