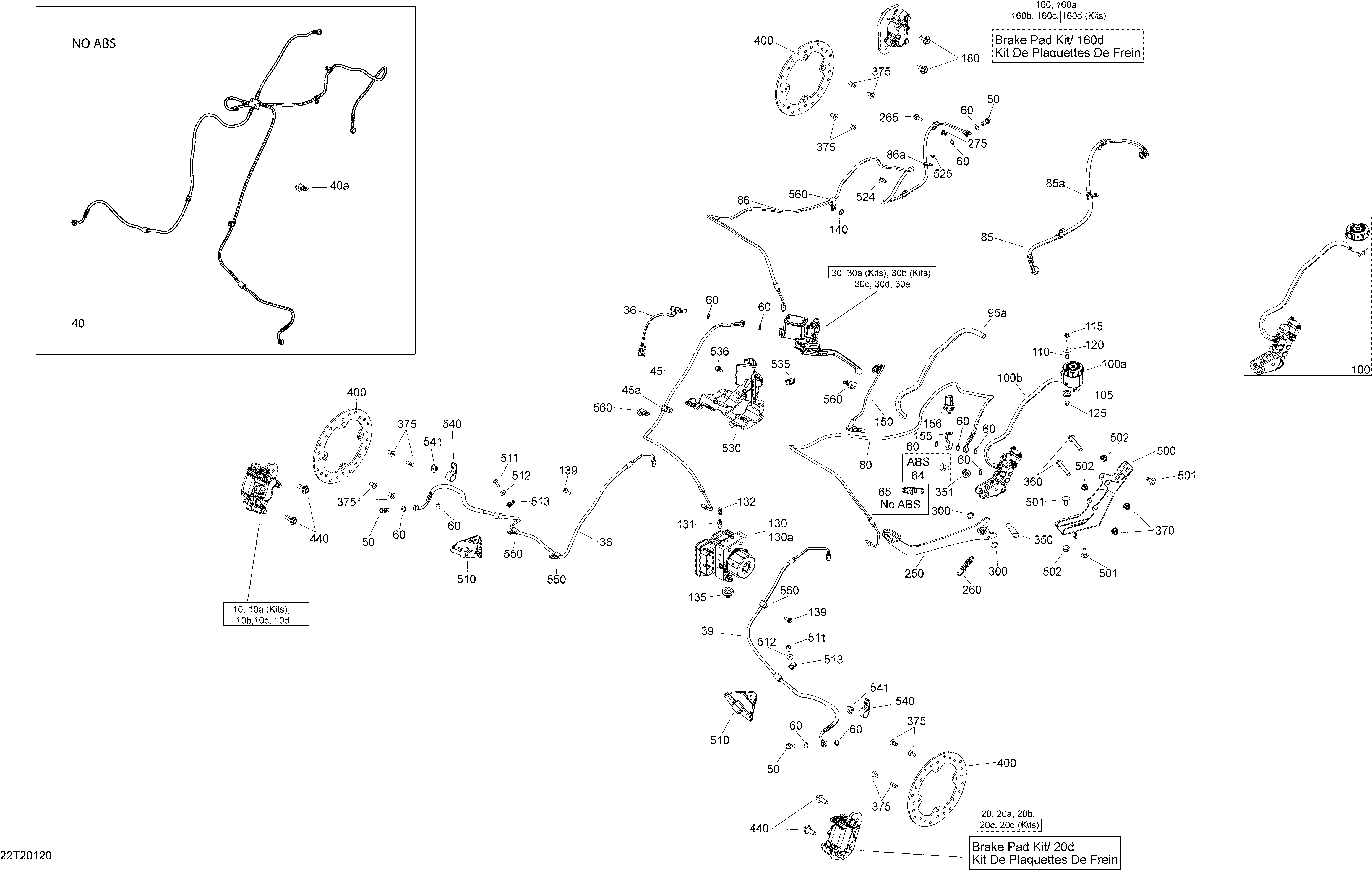

06- Brakes для BRP 001 - Outlander T 650 EFI - T Regulation - 2020

№

Артикул

Название
10

705600861 RH Front Caliper Ass'y. Includes 10 to 10d

RH Front Caliper Ass'y. Includes 10 to 10d

90 650 ₽
10a

705601014 RH Brake Pad Kit

RH Brake Pad Kit

12 200 ₽
10b

705601016 Pin Set

Pin Set

3 200 ₽
10c

705601017 Bleeding Screw

Bleeding Screw

2 480 ₽
10d

705601018 Spring

Spring

3 200 ₽
20

705600862 LH Front Caliper Ass'y. Includes 20 to 20d

LH Front Caliper Ass'y. Includes 20 to 20d

90 650 ₽
20a

705601016 Pin Set

Pin Set

3 200 ₽
20b

705601017 Bleeding Screw

Bleeding Screw

2 480 ₽
20c

705601018 Spring

Spring

3 200 ₽
20d

705601015 LH Brake Pad Kit

LH Brake Pad Kit

16 420 ₽
30

705601430 LH Front Master Cylinder. PRO +

LH Front Master Cylinder. PRO +

36 960 ₽
30

705601431 LH Front Master Cylinder Ass'y. XT

LH Front Master Cylinder Ass'y. XT

73 500 ₽
30a

705601013 Lever Set

Lever Set

24 470 ₽
30b

507032477 Clamp And Screw Kit. Includes to

Clamp And Screw Kit. Includes to

8 370 ₽
30c

250000447 Hex Flanged Screw M6 X 25

Hex Flanged Screw M6 X 25

740 ₽
30d

219800096 Cap Set. Includes to

Cap Set. Includes to

8 720 ₽
30e

415129356 Screw M4 X 20

Screw M4 X 20

210 ₽
36

705601669 Brake Switch. XT

Brake Switch. XT

16 420 ₽
38

705601688 RH Brake Line. XT

RH Brake Line. XT

4 920 ₽
39

705601689 LH Brake Line. XT

LH Brake Line. XT

18 450 ₽
40

705601686 Brake Line. PRO +

Brake Line. PRO +

57 400 ₽
40a

705600459 Clamp

Clamp

420 ₽
45

705601574 Brake Hose. XT

Brake Hose. XT

4 190 ₽
45a

293650256 Clamp

Clamp

1 980 ₽
50

705600609 Banjo Bolt (M10 x 1.25 thread). XT

Banjo Bolt (M10 x 1.25 thread). XT

390 ₽
50

705600609 Banjo Bolt (M10 x 1.25 thread). PRO +

Banjo Bolt (M10 x 1.25 thread). PRO +

390 ₽
60

705601628 Copper Washer

Copper Washer

2 660 ₽
64

250000163 Hex. Screw M10 X 14, Scotch Grip. XT

Hex. Screw M10 X 14, Scotch Grip. XT

380 ₽
65

705601051 Bleeding Screw. PRO +

Bleeding Screw. PRO +

4 620 ₽
80

705601575 Brake Hose. XT

Brake Hose. XT

6 020 ₽
85

705601301 RH Rear Hose. PRO +

RH Rear Hose. PRO +

13 410 ₽
85a

293650256 Clamp

Clamp

1 980 ₽
86

705601576 RH Rear Hose. XT

RH Rear Hose. XT

7 380 ₽
86a

293650256 Clamp

Clamp

1 980 ₽
95a

415079900 Tubing 10 mm

Tubing 10 mm

980 ₽
100

705601273 Rear Master Cylinder. PRO +

Rear Master Cylinder. PRO +

40 480 ₽
100a

705601020 Oil Tank

Oil Tank

13 410 ₽
100b

705601019 Housing Oil Hose

Housing Oil Hose

1 320 ₽
100

705601274 Rear Master Cylinder Ass'y. XT

Rear Master Cylinder Ass'y. XT

23 230 ₽
100a

705601020 Oil Tank

Oil Tank

13 410 ₽
100b

705601019 Housing Oil Hose

Housing Oil Hose

1 320 ₽
105

414036300 Grommet

Grommet

1 470 ₽
110

293900112 Bushing

Bushing

3 540 ₽
115

207652044 Flanged Hex. Screw M5 X 20

Flanged Hex. Screw M5 X 20

180 ₽
120

224060201 Flat Washer

Flat Washer

420 ₽
125

233251434 Flanged Elastic Nut M5

Flanged Elastic Nut M5

740 ₽
130

703500984 VCM Module. XT

VCM Module. XT

521 500 ₽
130a

710003279 Damper Shock

Damper Shock

850 ₽
131

705600502 Bleeder Screw. XT

Bleeder Screw. XT

1 130 ₽
132

705601190 Bleeder Bolt Cap. XT

Bleeder Bolt Cap. XT

410 ₽
135

710003279 Damper Shock. XT

Damper Shock. XT

850 ₽
139

210261640 Hex Flanged Screw M6 X 16. PRO +

Hex Flanged Screw M6 X 16. PRO +

200 ₽
139

210261640 Hex Flanged Screw M6 X 16. XT

Hex Flanged Screw M6 X 16. XT

200 ₽
140

390406500 Pop Rivet 3/16''

Pop Rivet 3/16''

320 ₽
150

705601250 Brake Switch. PRO +

Brake Switch. PRO +

13 210 ₽
150

705601670 Dual Brake Switch. XT

Dual Brake Switch. XT

16 420 ₽
155

705601617 Banjo Coupling. XT

Banjo Coupling. XT

12 080 ₽
156

705601578 Pressure Sensor. XT

Pressure Sensor. XT

29 860 ₽
160

705600859 RH Rear Caliper Ass'y. Includes 160 to 160d

RH Rear Caliper Ass'y. Includes 160 to 160d

103 250 ₽
160a

705601016 Pin Set

Pin Set

3 200 ₽
160b

705601017 Bleeding Screw

Bleeding Screw

2 480 ₽
160c

705601018 Spring

Spring

3 200 ₽
160d

705601014 RH Brake Pad Kit

RH Brake Pad Kit

12 200 ₽
180

207502046 Hex. Flanged Screw M10 X 20

Hex. Flanged Screw M10 X 20

340 ₽
250

705601155 Brake Pedal

Brake Pedal

12 080 ₽
260

705600792 Brake Pedal Spring

Brake Pedal Spring

940 ₽
265

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
275

233261414 Hex. Flanged Elastic Nut M6 x 1.0

Hex. Flanged Elastic Nut M6 x 1.0

490 ₽
300

293300144 O-Ring

O-Ring

1 410 ₽
350

250000513 Shoulder Screw M10

Shoulder Screw M10

700 ₽
351

233201416 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

820 ₽
360

207685544 Hex. Flanged Screw M8 X 55

Hex. Flanged Screw M8 X 55

1 890 ₽
370

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
375

235381646 Torx Screw M8 X 16, Scotch Grip

Torx Screw M8 X 16, Scotch Grip

900 ₽
400

705600999 Disc Brake

Disc Brake

20 130 ₽
440

207503046 Hex. Flanged Screw M10 X 30, Scotch Grip

Hex. Flanged Screw M10 X 30, Scotch Grip

1 050 ₽
500

705202000 Bracket Brake Pedal

Bracket Brake Pedal

3 370 ₽
501

207782044 Carriage Bolt, M8 X 20

Carriage Bolt, M8 X 20

670 ₽
502

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
510

705600962 Front Hose Protector

Front Hose Protector

470 ₽
511

250000724 Torx Screw M5 X 20

Torx Screw M5 X 20

600 ₽
512

250200025 Washer M5

Washer M5

270 ₽
513

250000958 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8

1 240 ₽
524

250000755 Torx Screw M6 X 16

Torx Screw M6 X 16

320 ₽
525

390402400 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
530

705600983 Front Hose Bracket

Front Hose Bracket

4 970 ₽
535

250000957 Extruded Panel Nut M6

Extruded Panel Nut M6

170 ₽
536

207562034 Hex. Flanged Screw M6 X 20, Scotch Grip. XT

Hex. Flanged Screw M6 X 20, Scotch Grip. XT

740 ₽
536

207563044 Hex. Flanged Screw M6 X 30, Scotch Grip. PRO +

Hex. Flanged Screw M6 X 30, Scotch Grip. PRO +

1 540 ₽
540

518321570 Open Clamp

Open Clamp

2 320 ₽
541

390402300 Pop Rivet 3/16''

Pop Rivet 3/16''

280 ₽
550

293650219 Clamp. XT

Clamp. XT

100 ₽
560

293650220 Clamp. XT

Clamp. XT

100 ₽
