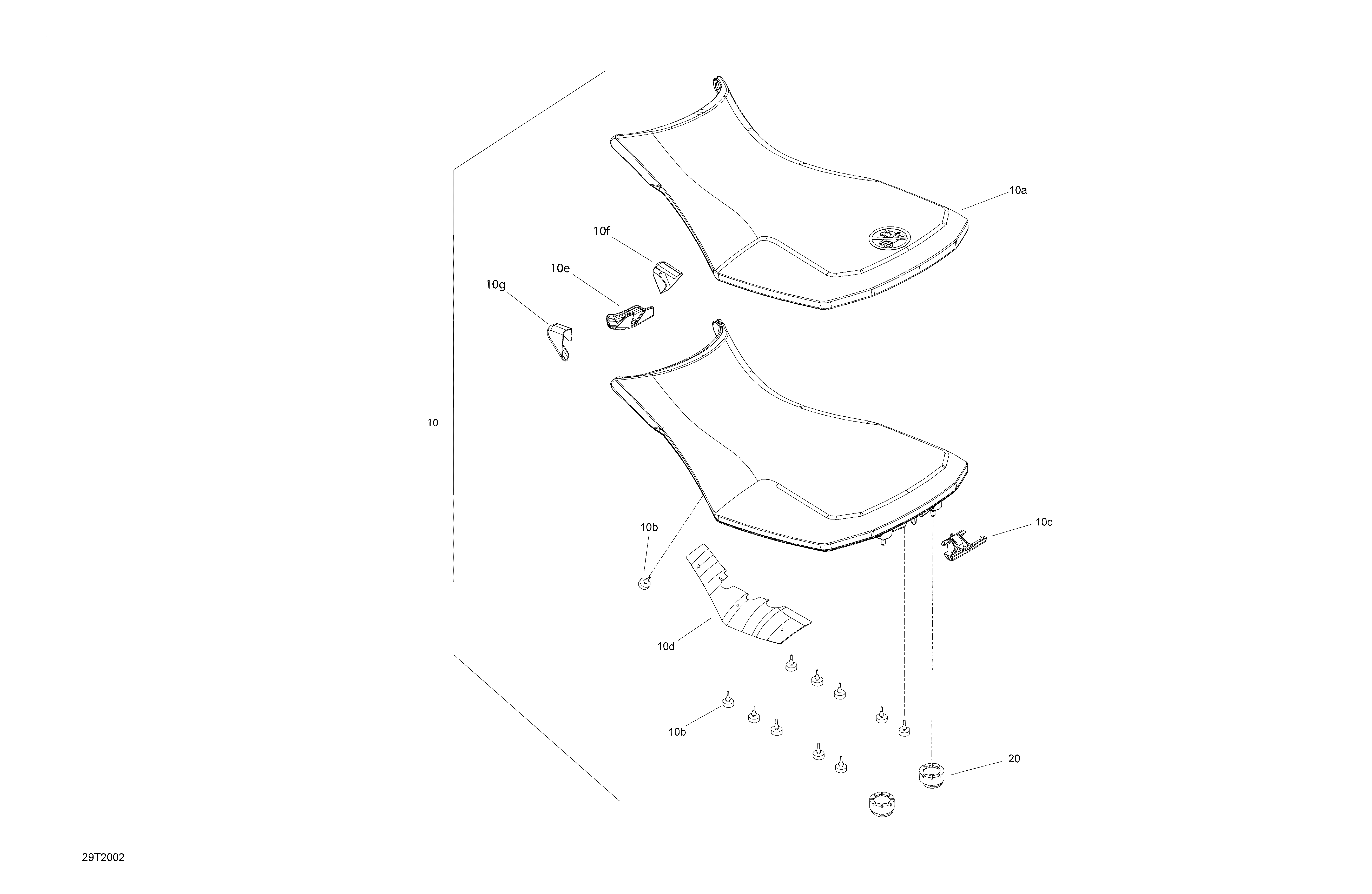

09- Seat для BRP 001 - Outlander T 650 EFI - T Regulation - 2020
-
№АртикулНазвание
-
10708002491 Seat Ass'y. XT. Includes 10 to 10dSeat Ass'y. XT. Includes 10 to 10d
-
10a708000724 Black, Seat Cover. XTBlack, Seat Cover. XT
-
10b708000759 Rubber Stopper. XTRubber Stopper. XT
-
10c708000909 Latch. XTLatch. XT
-
10d705005761 Heat Shield. XTHeat Shield. XT
-
10708002493 Assembly Seat. PRO +. Includes 10 to 10hAssembly Seat. PRO +. Includes 10 to 10h
-
10a708001972 Seat Cover. PRO +Seat Cover. PRO +
-
10b708000759 Rubber Stopper. PRO +Rubber Stopper. PRO +
-
10c708000909 Latch. PRO +Latch. PRO +
-
10d705005761 Heat Shield. PRO +Heat Shield. PRO +
-
10e708002077 Center Corner Seat. PRO +Center Corner Seat. PRO +
-
10f269001669 RH Corner Seat. PRO +RH Corner Seat. PRO +
-
10g269001670 LH Corner Seat. PRO +LH Corner Seat. PRO +
-
20708003053 Stopper RubberStopper Rubber
