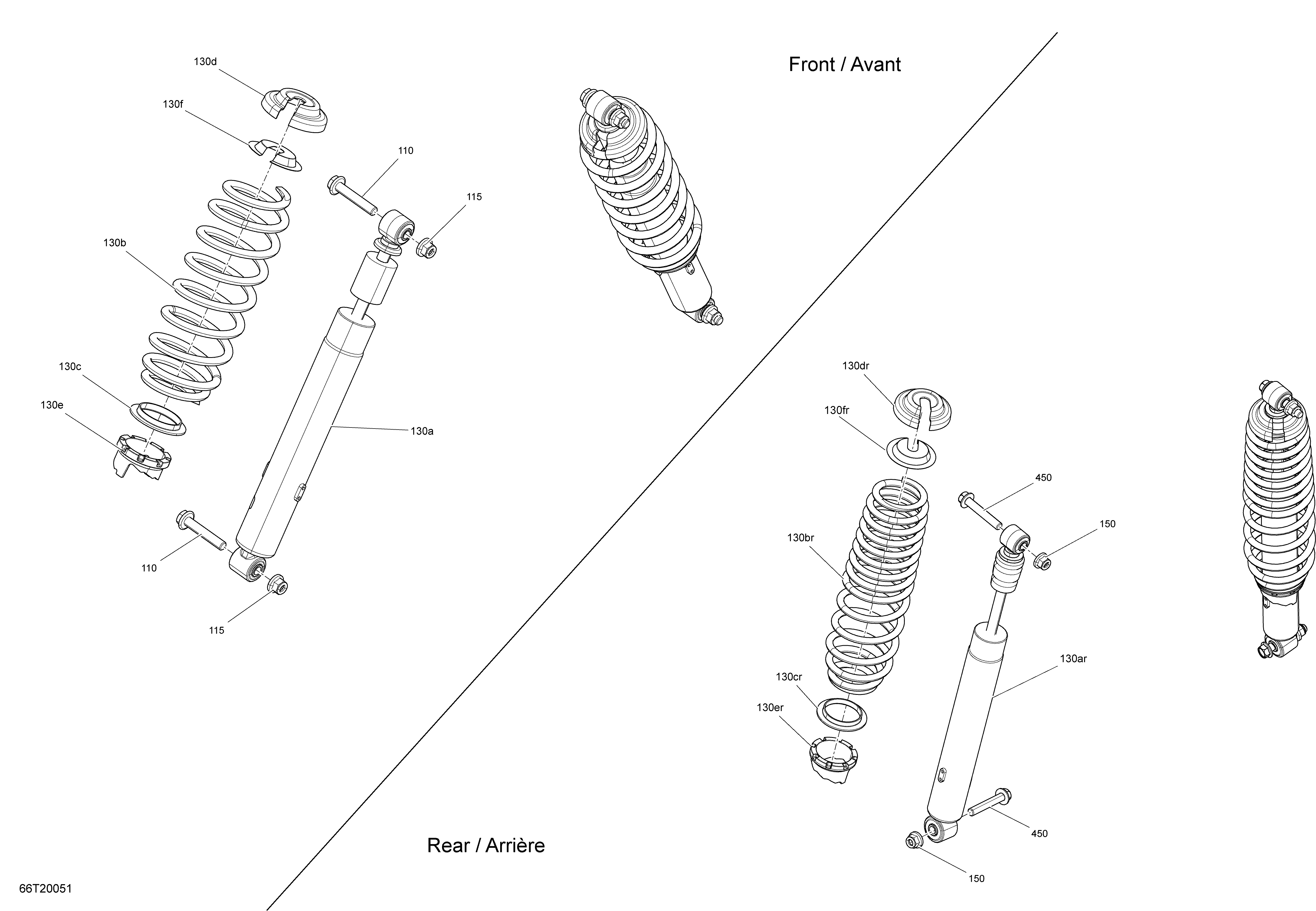

08- Shocks - XT для BRP 001 - Outlander T 650 EFI - T Regulation - 2020
-
№АртикулНазвание
-
110207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
115233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
130a706203204 Shock AbsorberShock Absorber
-
130b706203412 Black, Spring. Model CamoBlack, Spring. Model Camo
-
130b706203413 Red, Spring. Model Timeless BlackRed, Spring. Model Timeless Black
-
130b706203860 Compression Spring. Model Mineral Gray SatinCompression Spring. Model Mineral Gray Satin
-
130c505073625 Adjustment CamAdjustment Cam
-
130d706200881 Spring StopperSpring Stopper
-
130e503187500 Spring GuideSpring Guide
-
130f706200785 CapCap
-
130ar706003033 Rear Shock AbsorberRear Shock Absorber
-
130br706003056 Black Spring. Model CamoBlack Spring. Model Camo
-
130br706003248 Red Spring. Model Timeless BlackRed Spring. Model Timeless Black
-
130br706003680 Compression Spring. Model Mineral Gray SatinCompression Spring. Model Mineral Gray Satin
-
130cr505073625 Adjustment CamAdjustment Cam
-
130dr706200881 Spring StopperSpring Stopper
-
130er503187500 Spring GuideSpring Guide
-
130fr706200785 CapCap
-
150233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
450207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
