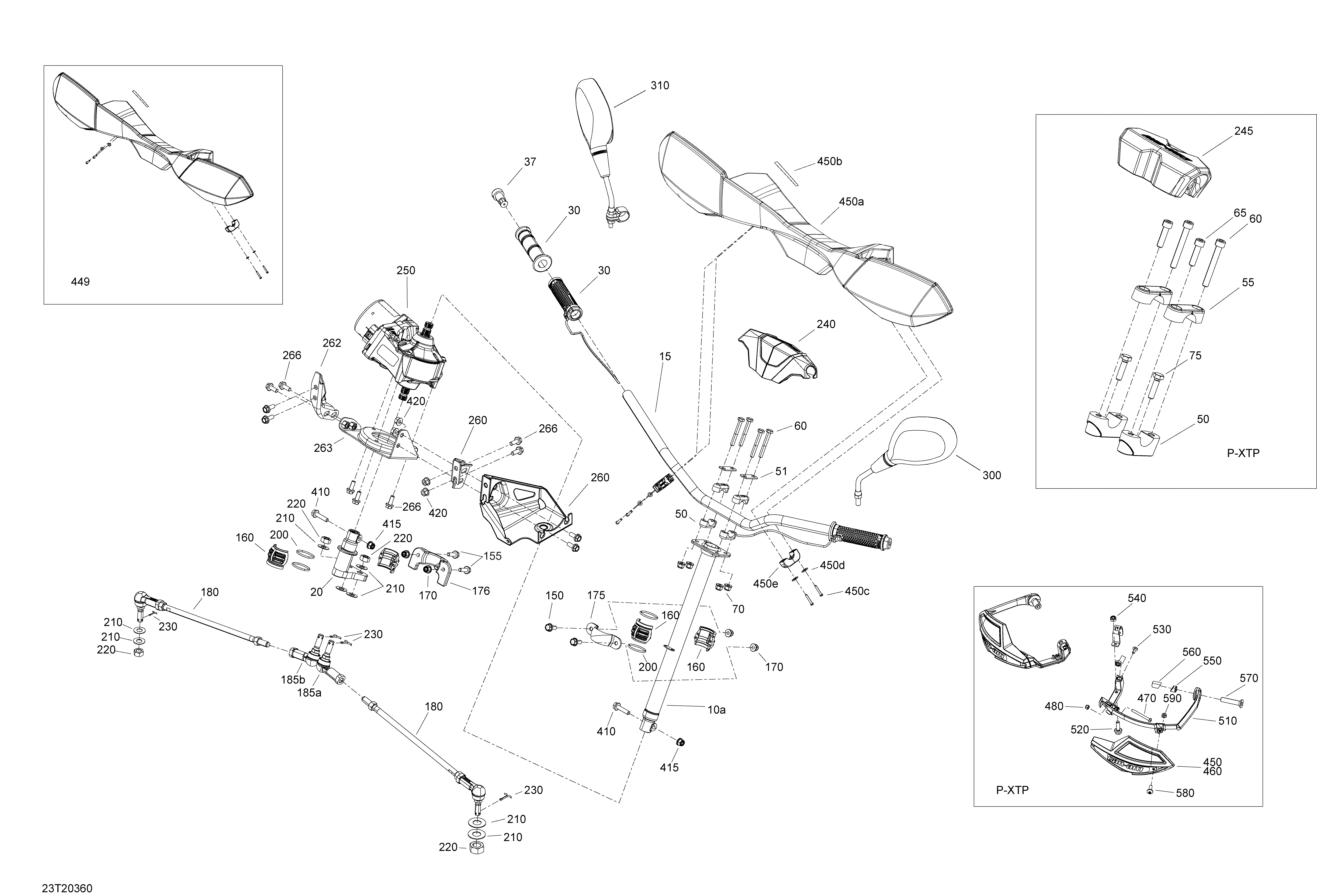

07- Steering для BRP 004 - Outlander T MAX 650 EFI - PRO+_XT_XTP - T Regulation - 2020
-
№АртикулНазвание
-
10a709401750 Black, Upper Main TubeBlack, Upper Main Tube
-
15709401240 Black, Handle BarBlack, Handle Bar
-
15709402292 Handlebar Anodized. XTPHandlebar Anodized. XTP
-
20709401748 Pitman ArmPitman Arm
-
30709400493 Handle Grip. XTHandle Grip. XT
-
30710005038 Heated Hand Grip With Connector. PRO+Heated Hand Grip With Connector. PRO+
-
30709400493 Handle Grip. XTPHandle Grip. XTP
-
37709400449 End PieceEnd Piece
-
50709401799 Steering SupportSteering Support
-
50709400497 Steering Support. XTPSteering Support. XTP
-
51709400509 StiffnerStiffner
-
55709400496 Support. XTPSupport. XTP
-
60207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
60205086060 Socket Head Screw M8 X 60. XTPSocket Head Screw M8 X 60. XTP
-
65205083060 Socket Screw M8 X 30. XTPSocket Screw M8 X 30. XTP
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
75207183060 Hex. Screw M8 X 30. XTPHex. Screw M8 X 30. XTP
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
155207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
160709400783 Spherical Half BushingSpherical Half Bushing
-
170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
175709400827 Upper Column AttachmentUpper Column Attachment
-
176709401428 Column AttachmentColumn Attachment
-
180703501039 Tie-Rod Ass`y. Includes 180 to 180aTie-Rod Ass`y. Includes 180 to 180a
-
185a709402303 LH Ball JointLH Ball Joint
-
185b709402302 RH Ball JointRH Ball Joint
-
180703501039 Tie-Rod Ass`y. Includes 180 to 180bTie-Rod Ass`y. Includes 180 to 180b
-
185a709402303 LH Ball JointLH Ball Joint
-
185b709402302 RH Ball JointRH Ball Joint
-
200293300068 O-RingO-Ring
-
210250200086 Flat WasherFlat Washer
-
220250100099 Nut M12Nut M12
-
230211400013 Cotter PinCotter Pin
-
240709400939 Cover. PRO+Cover. PRO+
-
245709402327 Steering Cover. XTPSteering Cover. XTP
-
250709402230 Power SteeringPower Steering
-
260709402184 LH Power Steering Bracket. PRO+LH Power Steering Bracket. PRO+
-
260709402192 Power Steering Module Bracket. XT_XTPPower Steering Module Bracket. XT_XTP
-
262709402185 RH BracketRH Bracket
-
263709401743 Power Steering SupportPower Steering Support
-
266207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
300709400406 LH MirrorLH Mirror
-
310709400407 RH MirrorRH Mirror
-
410250000986 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
415233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
420233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
449703100352 Handle Guard Ass'y, XT. XT. Includes 450 to 450eHandle Guard Ass'y, XT. XT. Includes 450 to 450e
-
450a709400822 Handle Bar Protector. XTHandle Bar Protector. XT
-
450b704902966 DPS Decal. XTDPS Decal. XT
-
450c241142560 Hex. Flanged Screw K40 X 25. XTHex. Flanged Screw K40 X 25. XT
-
450d211200035 Flat Washer. XTFlat Washer. XT
-
450e517303264 U-Clamp. XTU-Clamp. XT
-
450709401303 RH Air Deflector. XTPRH Air Deflector. XTP
-
460709401304 LH Air Deflector. XTPLH Air Deflector. XTP
-
470205444056 Socket Head Screw M4 X 40. XTPSocket Head Screw M4 X 40. XTP
-
480232541414 Elastic Stop Nut M4. XTPElastic Stop Nut M4. XTP
-
510715001378 Air Deflector Support Kit. XTPAir Deflector Support Kit. XTP
-
510715001378 Air Deflector Support Kit. XTPAir Deflector Support Kit. XTP
-
510715001378 Air Deflector Support Kit. XTPAir Deflector Support Kit. XTP
-
520207662044 Hex. Flanged Screw M6 X 20. XTPHex. Flanged Screw M6 X 20. XTP
-
530250000717 Torx Head Screw M6 X 16. XTPTorx Head Screw M6 X 16. XTP
-
540232561600 Hex. Elastic Stop Nut M6. XTPHex. Elastic Stop Nut M6. XTP
-
550709400161 Bracket Small. XTPBracket Small. XTP
-
560709400162 Bracket Large. XTPBracket Large. XTP
-
570205384034 Socket Head Screw. XTPSocket Head Screw. XTP
-
580250000145 Torx Screw M5 X 14. XTPTorx Screw M5 X 14. XTP
-
590232551600 Hex. Elastic Nut M5. XTPHex. Elastic Nut M5. XTP
