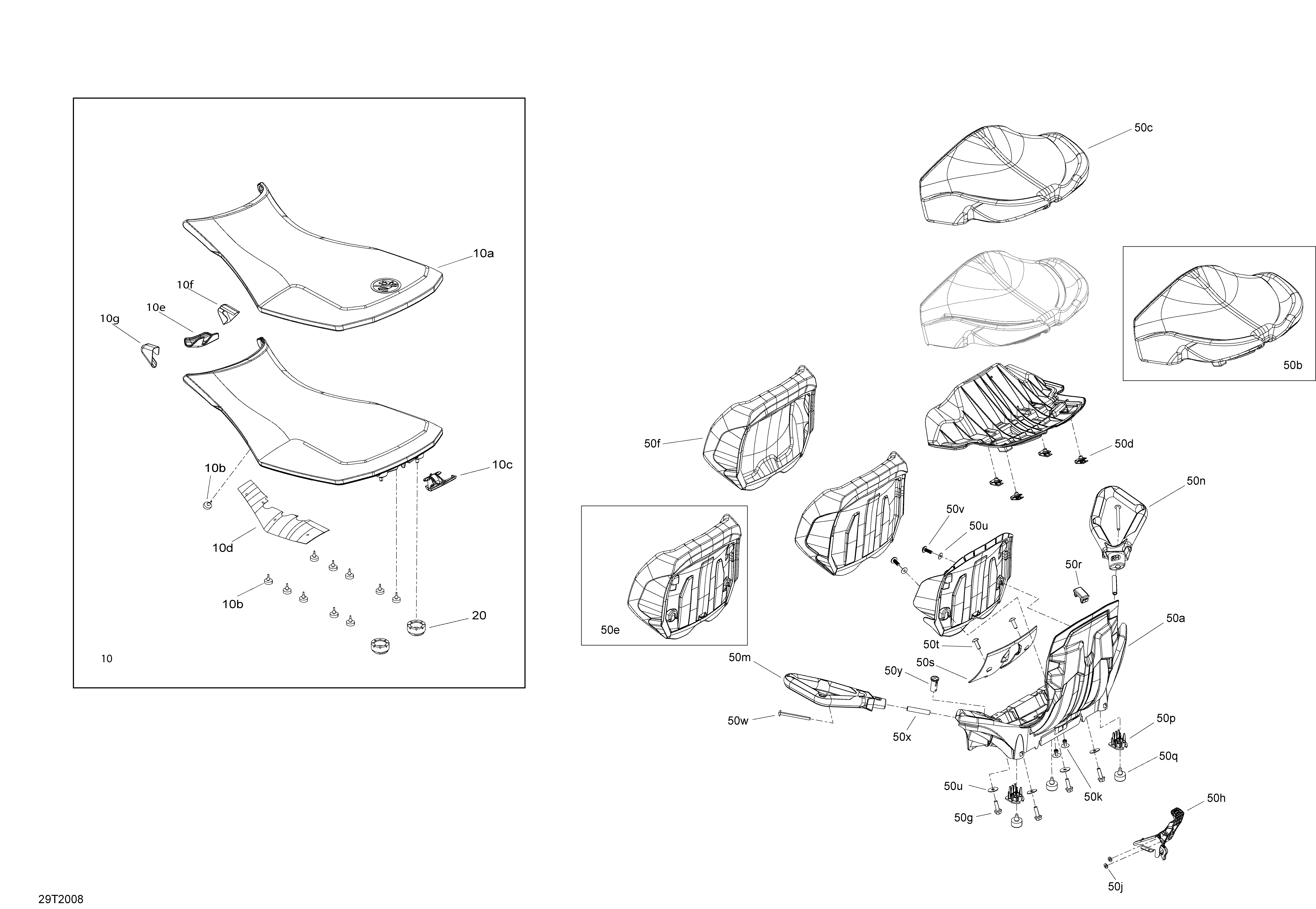

09- Seat для BRP 004 - Outlander T MAX 650 EFI - PRO+_XT_XTP - T Regulation - 2020
-
№АртикулНазвание
-
10708002491 Seat Ass'y. XTP_XT. Includes 10 to 10dSeat Ass'y. XTP_XT. Includes 10 to 10d
-
10a708000724 Black, Seat Cover. XTP_XTBlack, Seat Cover. XTP_XT
-
10b708000759 Rubber Stopper. XTP_XTRubber Stopper. XTP_XT
-
10c708000909 Latch. XTP_XTLatch. XTP_XT
-
10d705005761 Heat Shield. XTP_XTHeat Shield. XTP_XT
-
10708002493 Assembly Seat. PRO +. Includes 10 to 10hAssembly Seat. PRO +. Includes 10 to 10h
-
10a708001972 Seat Cover. PRO +Seat Cover. PRO +
-
10b708000759 Rubber Stopper. PRO +Rubber Stopper. PRO +
-
10c708000909 Latch. PRO +Latch. PRO +
-
10d705005761 Heat Shield. PRO +Heat Shield. PRO +
-
10e708002077 Center Corner Seat. PRO +Center Corner Seat. PRO +
-
10f269001669 RH Corner Seat. PRO +RH Corner Seat. PRO +
-
10g269001670 LH Corner Seat. PRO +LH Corner Seat. PRO +
-
20708003053 Stopper RubberStopper Rubber
-
50a708002574 Seat Base. PRO +Seat Base. PRO +
-
50b708002086 Seat. PRO +. Includes 50b to 50dSeat. PRO +. Includes 50b to 50d
-
50c708001581 Passenger Seat Cover. PRO +Passenger Seat Cover. PRO +
-
50d250000957 Extruded Panel Nut M6. PRO +Extruded Panel Nut M6. PRO +
-
50e708002081 Backrest. PRO +. Includes 50e to 50fBackrest. PRO +. Includes 50e to 50f
-
50f708001847 Back Rest Cover. PRO +Back Rest Cover. PRO +
-
50g207562034 Hex. Flanged Screw M6 X 20, Scotch Grip. PRO +Hex. Flanged Screw M6 X 20, Scotch Grip. PRO +
-
50h708001532 Latch. PRO +. Includes 50h to 50jLatch. PRO +. Includes 50h to 50j
-
50j234051410 Flat Washer M5. PRO +Flat Washer M5. PRO +
-
50k293150108 Pop Rivet 3/16”. PRO +Pop Rivet 3/16”. PRO +
-
50m703500806 LH Passenger Seat Handle Kit. PRO +LH Passenger Seat Handle Kit. PRO +
-
50n703500807 RH Passenger Seat Handle Kit. PRO +RH Passenger Seat Handle Kit. PRO +
-
50p708001483 Seat Support. PRO +Seat Support. PRO +
-
50q708000758 Rubber Stopper. PRO +Rubber Stopper. PRO +
-
50r708001511 Insert. PRO +Insert. PRO +
-
50s708001512 Cap. PRO +Cap. PRO +
-
50t250000577 Torx Truss Screw K40 X 12. PRO +Torx Truss Screw K40 X 12. PRO +
-
50u224060201 Flat Washer. PRO +Flat Washer. PRO +
-
50v250000546 Oval Head Torx Screw K60 X 16. PRO +Oval Head Torx Screw K60 X 16. PRO +
-
50w250000806 Torx Truss M8 X 90. PRO +Torx Truss M8 X 90. PRO +
-
50x705009248 Sleeve. PRO +Sleeve. PRO +
-
50y710003910 Pilot Lamp Cap. PRO +Pilot Lamp Cap. PRO +
-
50a708002574 Seat Base. XTP_XTSeat Base. XTP_XT
-
50b708002086 Seat. XTP_XT. Includes 50b to 50dSeat. XTP_XT. Includes 50b to 50d
-
50c708001581 Passenger Seat Cover. XTP_XTPassenger Seat Cover. XTP_XT
-
50d250000957 Extruded Panel Nut M6. XTP_XTExtruded Panel Nut M6. XTP_XT
-
50e708002081 Backrest. XTP_XT. Includes 50e to 50fBackrest. XTP_XT. Includes 50e to 50f
-
50f708001847 Back Rest Cover. XTP_XTBack Rest Cover. XTP_XT
-
50g207562034 Hex. Flanged Screw M6 X 20, Scotch Grip. XTP_XTHex. Flanged Screw M6 X 20, Scotch Grip. XTP_XT
-
50h708001532 Latch. XTP_XT. Includes 50h to 50jLatch. XTP_XT. Includes 50h to 50j
-
50j234051410 Flat Washer M5. XTP_XTFlat Washer M5. XTP_XT
-
50k293150108 Pop Rivet 3/16”. XTP_XTPop Rivet 3/16”. XTP_XT
-
50m703500806 LH Passenger Seat Handle Kit. XTP_XTLH Passenger Seat Handle Kit. XTP_XT
-
50n703500807 RH Passenger Seat Handle Kit. XTP_XTRH Passenger Seat Handle Kit. XTP_XT
-
50p708001483 Seat Support. XTP_XTSeat Support. XTP_XT
-
50q708000758 Rubber Stopper. XTP_XTRubber Stopper. XTP_XT
-
50r708001511 Insert. XTP_XTInsert. XTP_XT
-
50s708001512 Cap. XTP_XTCap. XTP_XT
-
50t250000577 Torx Truss Screw K40 X 12. XTP_XTTorx Truss Screw K40 X 12. XTP_XT
-
50u224060201 Flat Washer. XTP_XTFlat Washer. XTP_XT
-
50v250000546 Oval Head Torx Screw K60 X 16. XTP_XTOval Head Torx Screw K60 X 16. XTP_XT
-
50w250000806 Torx Truss M8 X 90. XTP_XTTorx Truss M8 X 90. XTP_XT
-
50x705009248 Sleeve. XTP_XTSleeve. XTP_XT
-
50y710003910 Pilot Lamp Cap. XTP_XTPilot Lamp Cap. XTP_XT
