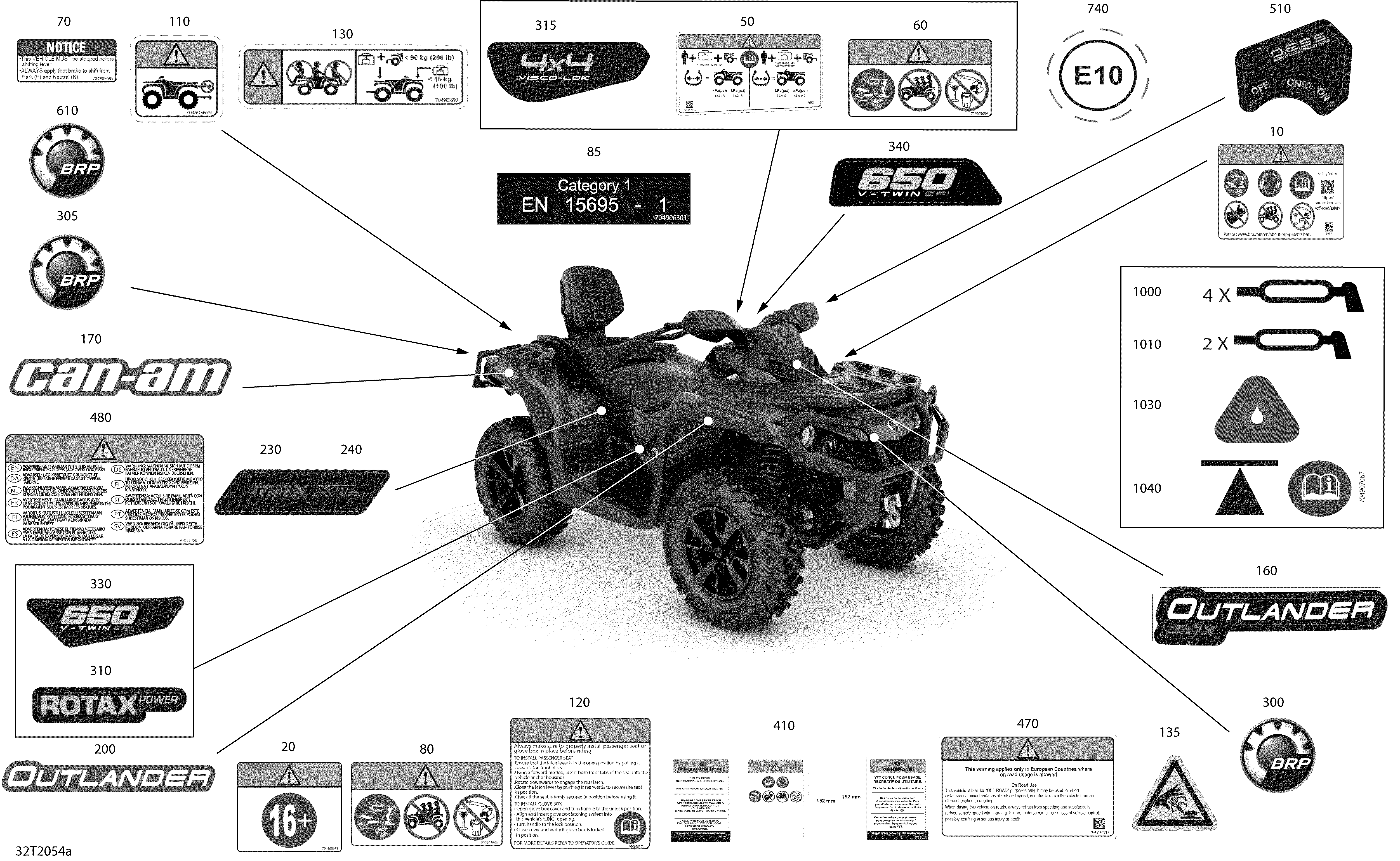

09- Decals - XTP для BRP 004 - Outlander T MAX 650 EFI - PRO+_XT_XTP - T Regulation - 2020
-
№АртикулНазвание
-
10704908013 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
20704905679 Warning Decal Over 16Warning Decal Over 16
-
50704907517 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
60704905694 Warning Decal PassengerWarning Decal Passenger
-
70704905695 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
-
80704906894 Parking Brake DecalParking Brake Decal
-
85704906301 Warning Decal ''Category 1 EN 15695''Warning Decal ''Category 1 EN 15695''
-
110704905699 Warning DecalWarning Decal
-
120704905701 Warning Decal, Seat PassengerWarning Decal, Seat Passenger
-
130704905997 Warning DecalWarning Decal
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
160704905723 Console Decal ''Outlander Max''Console Decal ''Outlander Max''
-
170704906878 Decal ''Can-Am''Decal ''Can-Am''
-
200704906879 Front Side Decal, ''Outlander''Front Side Decal, ''Outlander''
-
230704906026 LH Decal ''MAX XTp''LH Decal ''MAX XTp''
-
240704906027 RH Decal ''Max XTp''RH Decal ''Max XTp''
-
300516008739 Logo 68mm ''BRP''Logo 68mm ''BRP''
-
305516008739 Logo 68mm ''BRP''Logo 68mm ''BRP''
-
310704905746 Decal ''Rotax Power''Decal ''Rotax Power''
-
315704907066 Decal ''4X4''Decal ''4X4''
-
330704906034 LH Engine Decal ''650 V-Twin EFI''LH Engine Decal ''650 V-Twin EFI''
-
340704906035 RH Engine Decal ''650 V-Twin EFI''RH Engine Decal ''650 V-Twin EFI''
-
410704903947 Warning Decal, General Use ModelWarning Decal, General Use Model
-
470704907111 Warning Decal, Road UseWarning Decal, Road Use
-
480704905720 Decal, MutltilingualDecal, Mutltilingual
-
510704906243 Decal Key ''DESS Off On On''Decal Key ''DESS Off On On''
-
610704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
740704907278 Decal Ethanol Percantage ''E10''Decal Ethanol Percantage ''E10''
-
1000704906895 Decal Front Grease FittingDecal Front Grease Fitting
-
1010704906896 Decal Rear Grease FittingDecal Rear Grease Fitting
-
1030704906395 Brake Liquid DecalBrake Liquid Decal
-
1040704907067 Decal Support PointDecal Support Point
