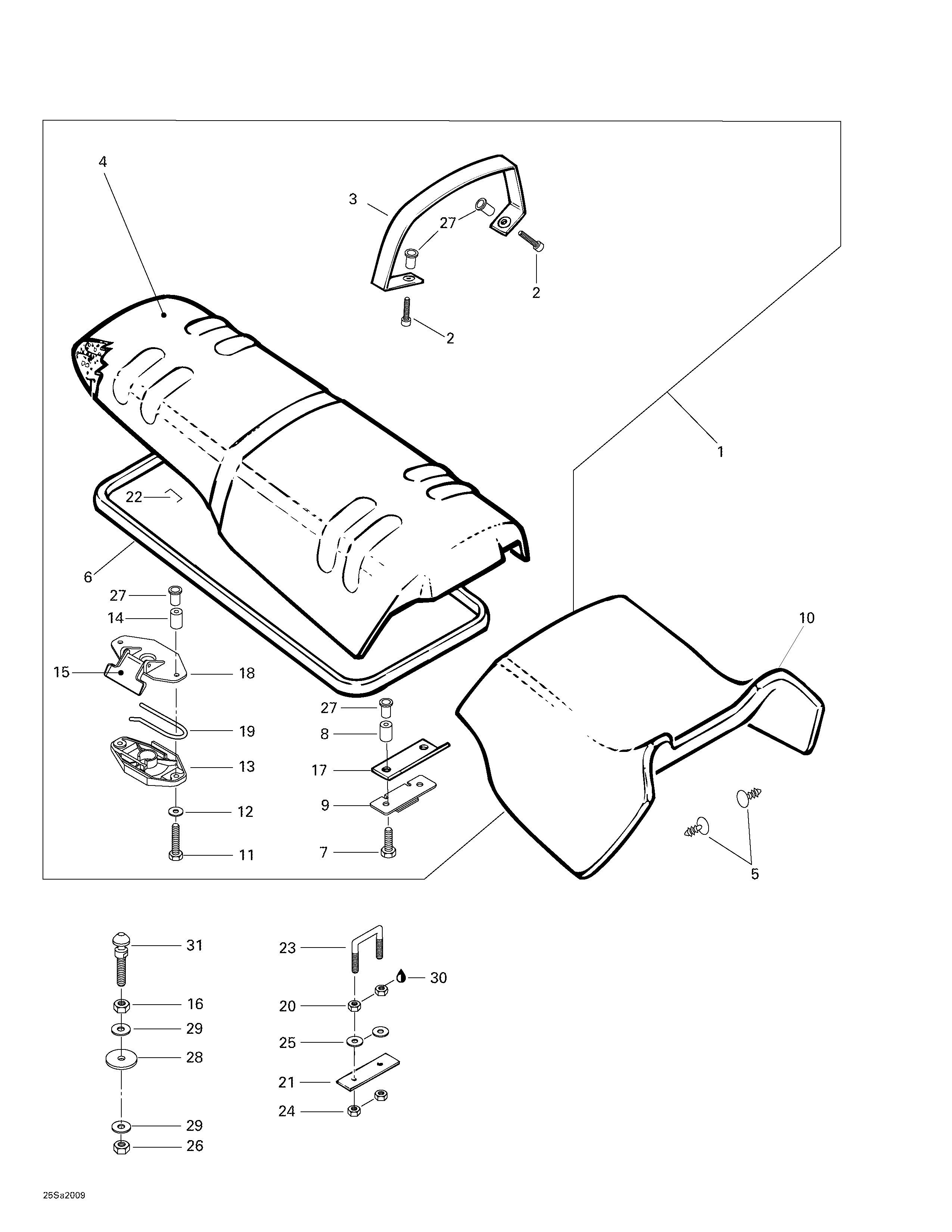

09- Seat And Engine Cover для BRP GTS, 5639 - 2000
-
№АртикулНазвание
-
1269000656 Seat Ass'ySeat Ass'y
-
2205961060 Socket Head Screw M6 x 10 (Scotch Grip)Socket Head Screw M6 x 10 (Scotch Grip)
-
3269000565 Seat StrapSeat Strap
-
4269000540 Seat Cover and FoamSeat Cover and Foam
-
5293730010 Dart (Black)Dart (Black)
-
6293200017 > Neoprene Seal (Meter)> Neoprene Seal (Meter)
-
7207362060 Hex. Screw M6 x 20 (Scotch Grip)Hex. Screw M6 x 20 (Scotch Grip)
-
8291000176 Spacer 8 mmSpacer 8 mm
-
9291000174 Base KeeperBase Keeper
-
10269000564 Front Seat Ass'yFront Seat Ass'y
-
11207363060 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
12234061600 Flat Washer 6 mmFlat Washer 6 mm
-
13269000015 Latch BaseLatch Base
-
14291000177 Spacer 12 mmSpacer 12 mm
-
15269000016 Latch LeverLatch Lever
-
16232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
17269000043 Protection PlateProtection Plate
-
18269700020 Latch CoverLatch Cover
-
19269700017 SpringSpring
-
20232061600 Hex. Nut M6Hex. Nut M6
-
21291000079 Reinforcement PlateReinforcement Plate
-
22293730005 Staples (Seat Cover)Staples (Seat Cover)
-
23291000468 Hook (Seat)Hook (Seat)
-
24232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
25234062600 Flat Washer 6 mmFlat Washer 6 mm
-
26232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
27293100003 Nut M6Nut M6
-
28291000628 Rubber WasherRubber Washer
-
29234002600 Flat Washer 10 mmFlat Washer 10 mm
-
30293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
31291000691 Latch Stud (Seat)Latch Stud (Seat)
