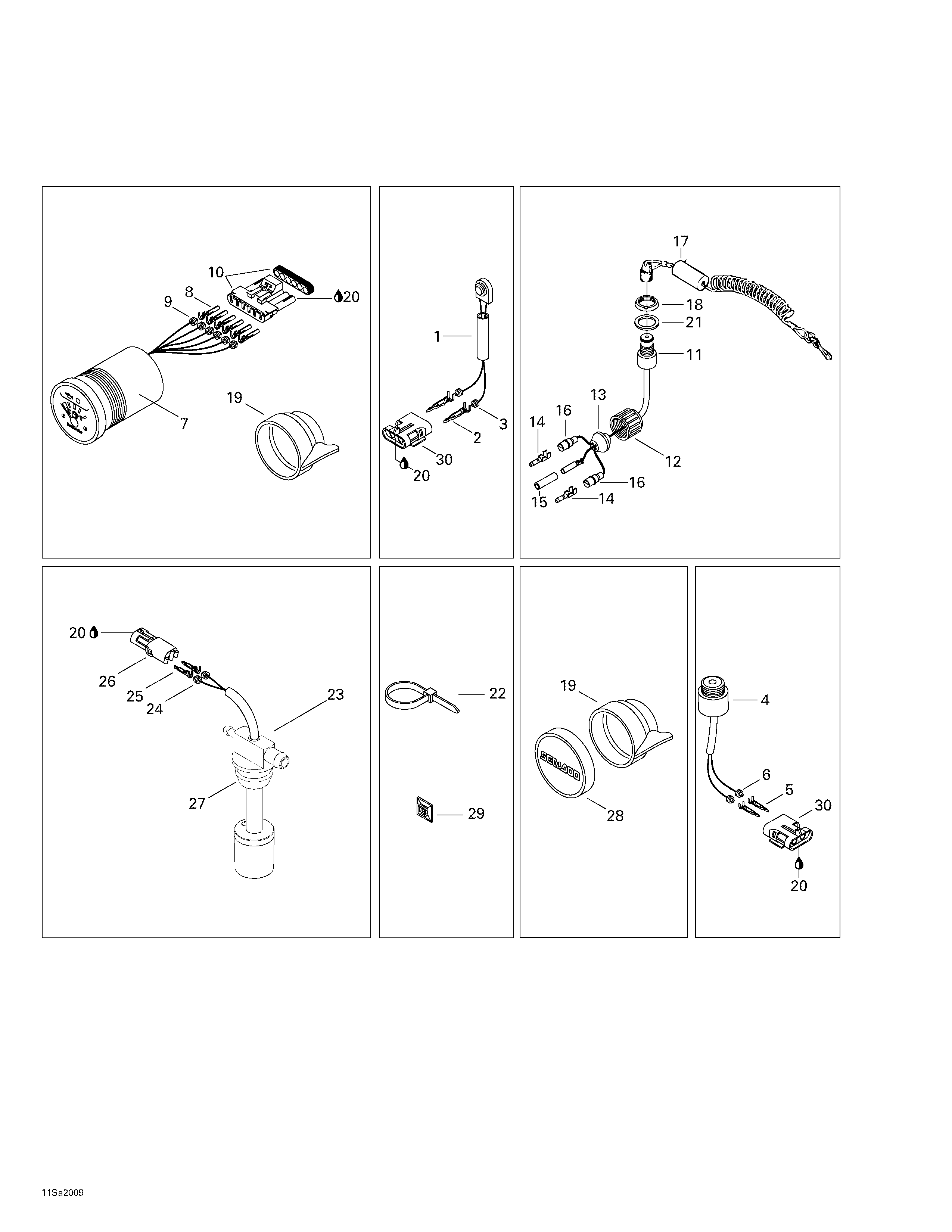

10- Electrical Accessories для BRP GTS, 5639 - 2000
-
№АртикулНазвание
-
1278000427 Ignition Switch Ass'y (Stop / Start). Includes 1 - 3.Ignition Switch Ass'y (Stop / Start). Includes 1 - 3.
-
2278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
3278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
4278001564 Buzzer Ass'y. Includes 4 - 6.Buzzer Ass'y. Includes 4 - 6.
-
5278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
6278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
7278001338 Oil/Fuel Level Gauge. Includes 7 - 10.Oil/Fuel Level Gauge. Includes 7 - 10.
-
8278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
9278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
10278000221 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
11278000638 Safety Switch. Includes 11 - 16.Safety Switch. Includes 11 - 16.
-
12278000100 Electric CapElectric Cap
-
13278000193 Grommet (3 Circuits) BlackGrommet (3 Circuits) Black
-
14278000230 Male Terminal (20 Gauge)Male Terminal (20 Gauge)
-
15278001007 Insulating Sheath (Female Terminal)Insulating Sheath (Female Terminal)
-
16278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
17278001543 Safety Lanyard Ass'ySafety Lanyard Ass'y
-
18278000508 Safety Switch NutSafety Switch Nut
-
19293720005 Gauge SupportGauge Support
-
20293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
21211200027 WasherWasher
-
22414115200 Tie RapTie Rap
-
23278001289 Oil Level Sensor Ass'y. Includes 23 - 27.Oil Level Sensor Ass'y. Includes 23 - 27.
-
24278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
25278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
26278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
27293720008 GrommetGrommet
-
28269700062 Gauge CapGauge Cap
-
29293750010 Tie Rap MountTie Rap Mount
-
30278000217 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
