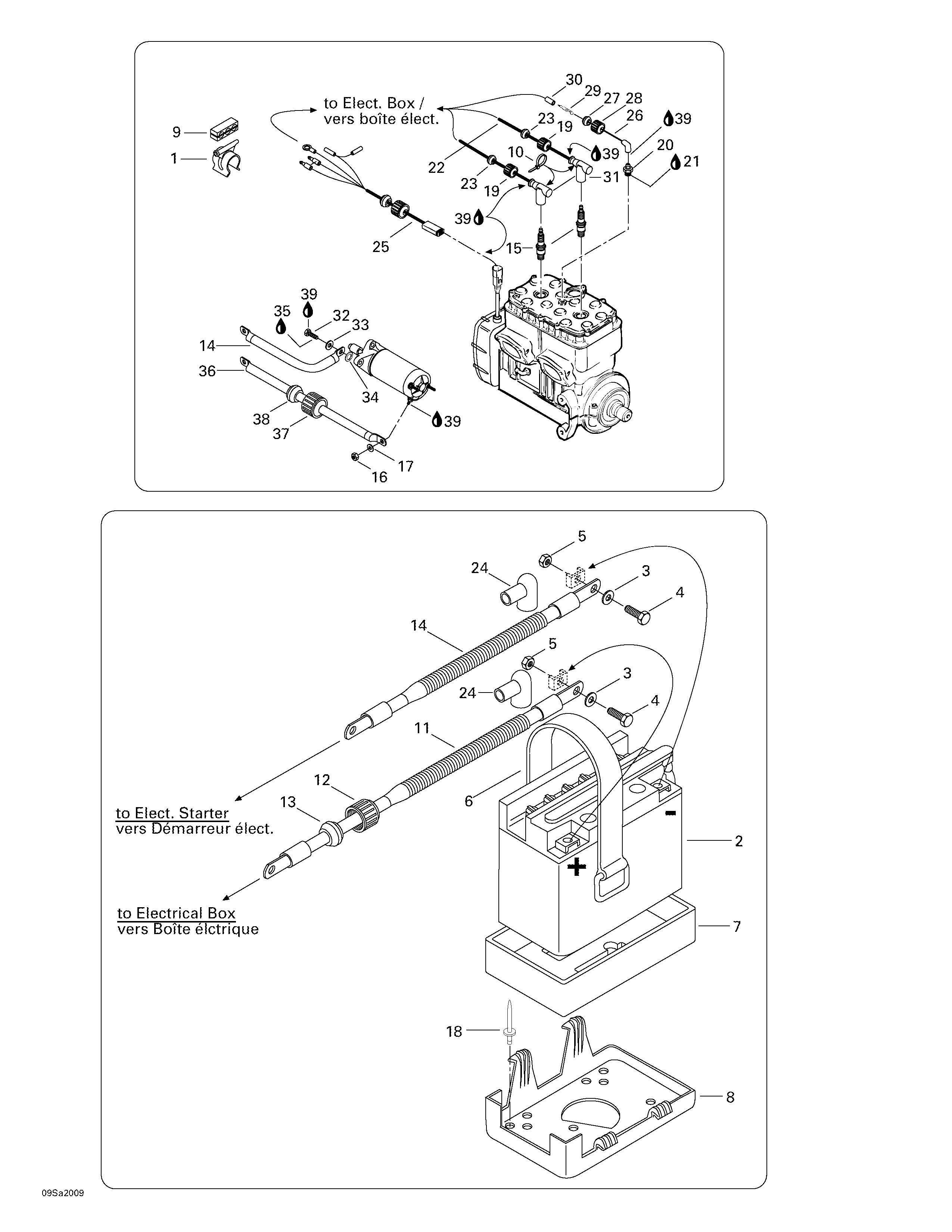

10- Electrical System для BRP GTS, 5639 - 2000
-
№АртикулНазвание
-
1278000559 Clamp BracketClamp Bracket
-
2278000712 BatteryBattery
-
3211200018 Flat Washer 6 mmFlat Washer 6 mm
-
4211000045 Hex. ScrewHex. Screw
-
5211100022 Nut M6Nut M6
-
6293850021 StrapStrap
-
7278001234 Battery Lower PadBattery Lower Pad
-
8278001580 Battery SupportBattery Support
-
9278000245 3 Wire Support3 Wire Support
-
10293750002 Tie Rap 130 mmTie Rap 130 mm
-
11278000514 Battery Cable (Red). Includes 11 - 13.Battery Cable (Red). Includes 11 - 13.
-
12278000100 Electric Box CapElectric Box Cap
-
13278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
14278000681 Battery Ground CableBattery Ground Cable
-
15278000609 Spark Plug (NGK BR8-ES)Spark Plug (NGK BR8-ES)
-
16232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
17234061600 Flat Washer 6 mmFlat Washer 6 mm
-
18293150037 Rivet 3/16Rivet 3/16
-
19278000100 Electrical Box CapElectrical Box Cap
-
20278000965 Temperature SensorTemperature Sensor
-
21293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
22278001268 Wire Spark Plug 650Wire Spark Plug 650
-
23278000682 Grommet (1 Circuit) (Gray)Grommet (1 Circuit) (Gray)
-
24278000020 Protector CapProtector Cap
-
25278000472 Engine HarnessEngine Harness
-
26278001204 Temperature Harness Ass'y. Includes 26 - 30.Temperature Harness Ass'y. Includes 26 - 30.
-
27293720030 Grommet (1 Circuit)Grommet (1 Circuit)
-
28278000100 Electric Box CapElectric Box Cap
-
29278000230 Terminal Male (20 Gauge)(AMP)Terminal Male (20 Gauge)(AMP)
-
30278000231 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
31278000237 Spark Plug CapSpark Plug Cap
-
32207182060 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
33234081600 Flat Washer 8 mmFlat Washer 8 mm
-
34234381608 Ext. Tooth Lock Washer 8 mmExt. Tooth Lock Washer 8 mm
-
35293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
36278000192 Starter Cable (Red). Includes 36 - 38.Starter Cable (Red). Includes 36 - 38.
-
37278000100 Electric Box CapElectric Box Cap
-
38278000098 Grommet (Black, 1 Circuit)Grommet (Black, 1 Circuit)
-
39293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
