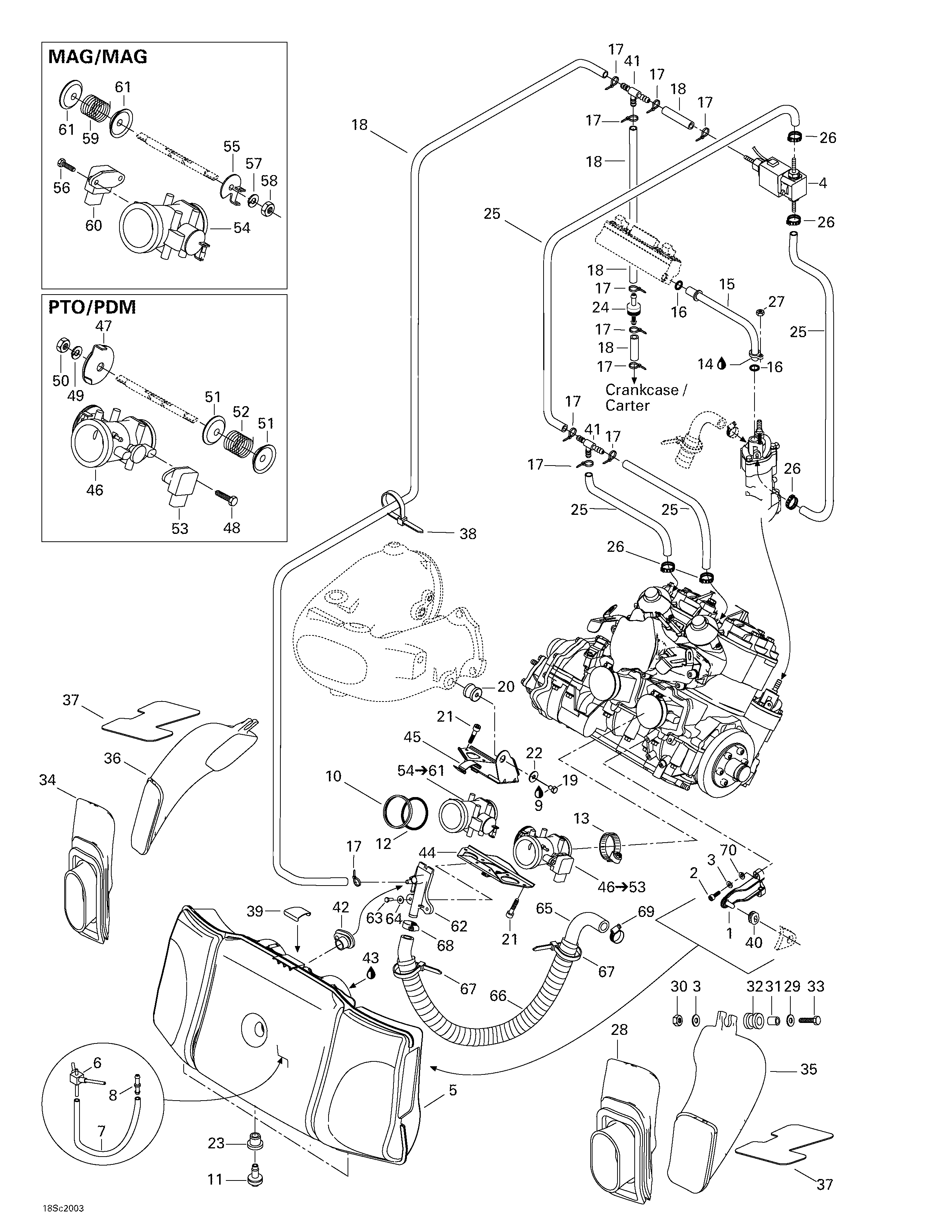

02- Air Intake System для BRP RX DI, 5646/5656 - 2000
-
№АртикулНазвание
-
1273000123 Air Silencer SupportAir Silencer Support
-
2205063560 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
3234061600 Flat Washer 6 mmFlat Washer 6 mm
-
4270600028 Soleno‹de ValveSoleno‹de Valve
-
5273000158 Air Silencer. Includes 5 - 8.Air Silencer. Includes 5 - 8.
-
6273000180 Injector Ass'y (3 holes)Injector Ass'y (3 holes)
-
7415080100 Line (Meter)Line (Meter)
-
8273000181 ConnectorConnector
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10293250076 GasketGasket
-
11275500454 Check ValveCheck Valve
-
12293250065 O-RingO-Ring
-
13293650079 Norma Gear ClampNorma Gear Clamp
-
14293800070 Loctite Antiseize Lube, 8 ozLoctite Antiseize Lube, 8 oz
-
15270600022 Pressure Hose. Includes 15 - 16.Pressure Hose. Includes 15 - 16.
-
16293300070 O-RingO-Ring
-
17293750001 Tie Rap 94 mmTie Rap 94 mm
-
18270000374 Hose 4.3 mm (Meter)Hose 4.3 mm (Meter)
-
19207181260 Hexagonal Screw M8 x 12Hexagonal Screw M8 x 12
-
20274000839 IsolatorIsolator
-
21205051060 Screw M5 x 10Screw M5 x 10
-
22234082600 Flat Washer 8 mmFlat Washer 8 mm
-
23293720064 GrommetGrommet
-
24275500398 Check ValveCheck Valve
-
25270000471 Hose 4.3 mm (Meter)Hose 4.3 mm (Meter)
-
26293650100 Gear Clamp OetikerGear Clamp Oetiker
-
27232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
28273000163 Intake Adaptor (PTO)Intake Adaptor (PTO)
-
29234062600 Flat Washer 6 mmFlat Washer 6 mm
-
30232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
31272000074 Spacer 8 mmSpacer 8 mm
-
32278001260 InsulatorInsulator
-
33207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
34273000164 Intake Adaptor (MAG)Intake Adaptor (MAG)
-
35273000151 Air Duct (PTO)Air Duct (PTO)
-
36273000150 Air Duct (MAG)Air Duct (MAG)
-
37273000165 Protector PadProtector Pad
-
38293750002 Tie Rap 130 mmTie Rap 130 mm
-
39273000112 Support PlateSupport Plate
-
40293720052 GrommetGrommet
-
41293710068 ''T'' Fitting''T'' Fitting
-
42270600024 Femal Adaptor (Air/Oil)Femal Adaptor (Air/Oil)
-
43293800053 Sealant U-BlackSealant U-Black
-
44270600026 Lower Support (Throttle Body)Lower Support (Throttle Body)
-
45270600027 Upper Support (Throttle Body)Upper Support (Throttle Body)
-
46270600032 Throttle Body (PTO). Includes 46 - 53.Throttle Body (PTO). Includes 46 - 53.
-
47270600034 Throttle Lever Ass'yThrottle Lever Ass'y
-
48270600039 Potentiometer ScrewPotentiometer Screw
-
49234161601 Lock Washer M6Lock Washer M6
-
50232061600 Hexagonal Nut M6Hexagonal Nut M6
-
51270600036 Spring GuideSpring Guide
-
52270600037 SpringSpring
-
53270000251 Position SensorPosition Sensor
-
54270600033 Throttle Body (MAG). Includes 54 - 61.Throttle Body (MAG). Includes 54 - 61.
-
55270600035 Pick-Up LeverPick-Up Lever
-
56270600039 Potentiometer ScrewPotentiometer Screw
-
57234161601 Lock Washer M6Lock Washer M6
-
58232061600 Hexagonal Nut M6Hexagonal Nut M6
-
59270600038 SpringSpring
-
60270000251 Position SensorPosition Sensor
-
61270600036 Spring GuideSpring Guide
-
62270600023 Air Intake AdaptorAir Intake Adaptor
-
63207341260 Hexagonal Screw M4 x 14 (Scotch Grip)Hexagonal Screw M4 x 14 (Scotch Grip)
-
64234042600 Flat Washer 4 mmFlat Washer 4 mm
-
65270600021 Air Intake HoseAir Intake Hose
-
66415116600 Protective Shield (Meter)Protective Shield (Meter)
-
67293750002 Tie Rap 130 mmTie Rap 130 mm
-
68293650037 Tridon GearTridon Gear
-
69293650066 Tridon GearTridon Gear
-
70234161601 Lock Washer M6Lock Washer M6
