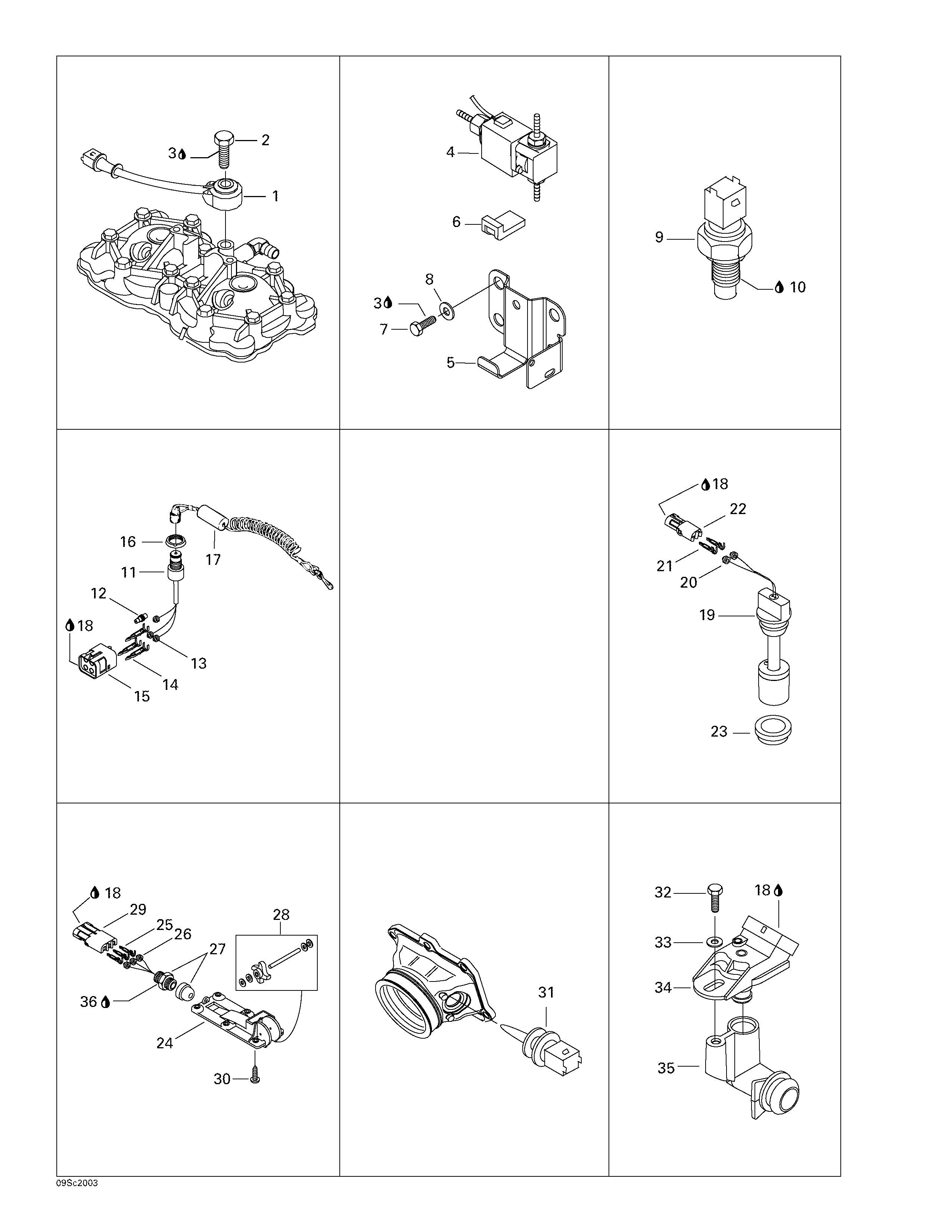

10- Electrical Accessories для BRP RX DI, 5646/5656 - 2000
![](/wa-data/public/shop/sheme/bombardier/watercraft/686b9fe0-ddf6-4ef1-a98e-70483ef3e45d.png)
-
№АртикулНазвание
-
1270000484 Sensor-NoiseSensor-Noise
-
2207183060 Screw-Hex.Cap M8x30Screw-Hex.Cap M8x30
-
3293800060 Loctite 243, 10mLLoctite 243, 10mL
-
4270600028 Valve-SolenoideValve-Solenoide
-
5291001438 Supp-RelaySupp-Relay
-
6278001166 Protect-ModuleProtect-Module
-
7207130860 Screw-Hex. M3x08Screw-Hex. M3x08
-
8234032600 Flat Washer 3mmFlat Washer 3mm
-
9278001016 Temperature SensorTemperature Sensor
-
10293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
11278000977 Safety Switch. Includes 11 - 15.Safety Switch. Includes 11 - 15.
-
12278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
13278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
14278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
15278000890 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
16278000508 Safety Switch NutSafety Switch Nut
-
17278001578 Safety Lanyard Ass'ySafety Lanyard Ass'y
-
18293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
19278001515 Oil sensor. Includes 19 - 22.Oil sensor. Includes 19 - 22.
-
20278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
21278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
22278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
23293720008 GrommetGrommet
-
24278001595 Speed Sensor. Includes 24 - 28.Speed Sensor. Includes 24 - 28.
-
25278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
26278000218 Wire Seal (16 and 18 Gauge - Green)Wire Seal (16 and 18 Gauge - Green)
-
27293710031 Electrical ConnectorElectrical Connector
-
28295500108 Paddle Wheel KitPaddle Wheel Kit
-
29278000281 Female Housing (3 Circuits)(Packard)Female Housing (3 Circuits)(Packard)
-
30250000020 Screw M5 x 10 (Scotch Grip)Screw M5 x 10 (Scotch Grip)
-
31270600000 Sensor-AirSensor-Air
-
32243041660 Screw-Plastite Hex. M4.8x16Screw-Plastite Hex. M4.8x16
-
33211200035 Washer-FlatWasher-Flat
-
34270600001 Sensor-Press. (Bosch)Sensor-Press. (Bosch)
-
35270600019 Adaptor-ValveAdaptor-Valve
-
36293800013 Pipe SealantPipe Sealant
