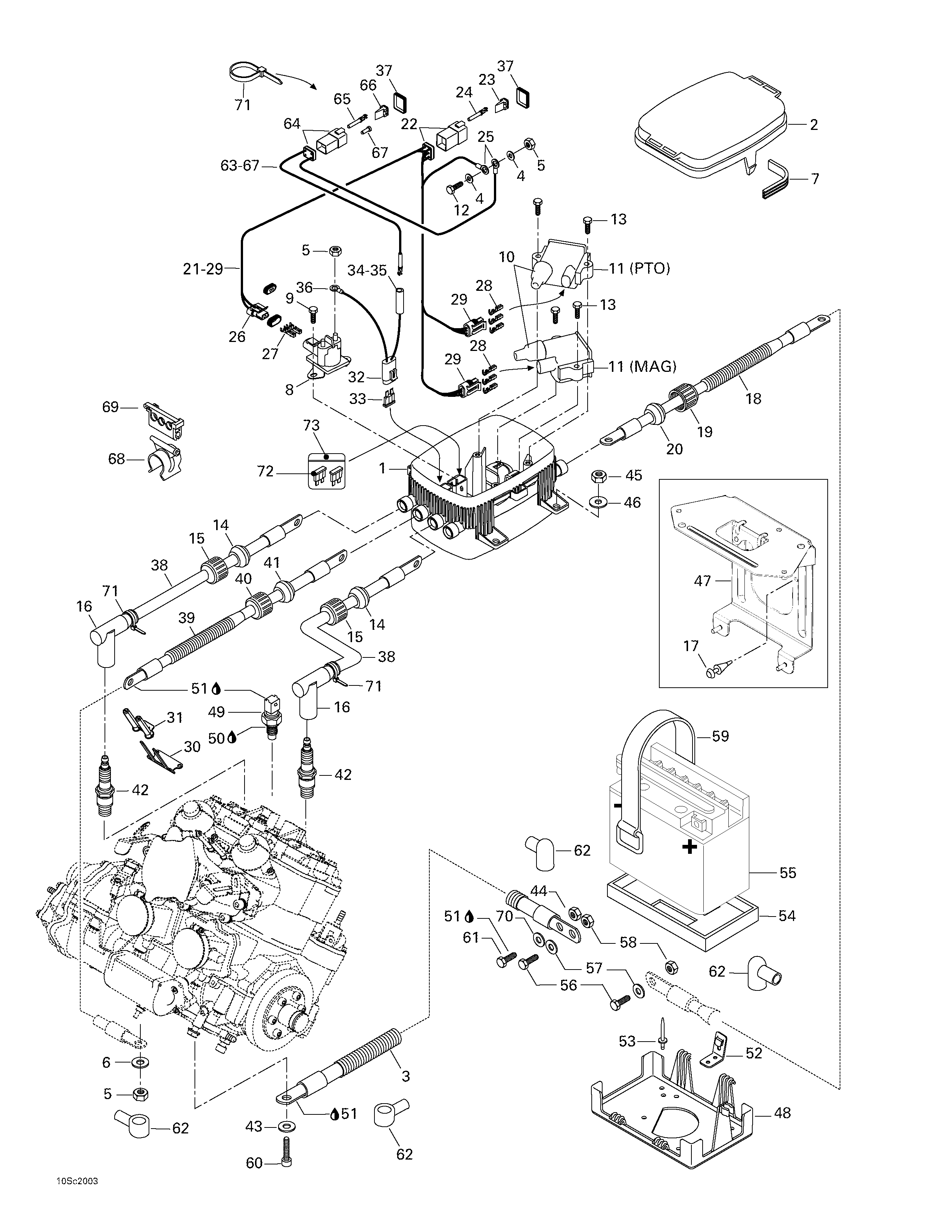

10- Rear Electrical Box для BRP RX DI, 5646/5656 - 2000
-
№АртикулНазвание
-
1278001504 Electric Box BaseElectric Box Base
-
2278001433 Electric Box CoverElectric Box Cover
-
3278001462 Ground Cable Ass'yGround Cable Ass'y
-
4234062410 Flat Washer 6 mmFlat Washer 6 mm
-
5232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
6234061600 Flat Washer 6 mmFlat Washer 6 mm
-
7278001173 GasketGasket
-
8278001376 Starter RelayStarter Relay
-
9210261040 Self Tapping Screw M6 x 10Self Tapping Screw M6 x 10
-
10278001470 Cap ProtectorCap Protector
-
11278001451 Ignition CoilIgnition Coil
-
12207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
13209463840 Self Tapping Screw M6.3 x 38Self Tapping Screw M6.3 x 38
-
14278000682 Grommet (Gray)Grommet (Gray)
-
15278000100 Electric CapElectric Cap
-
16278001452 Spark Plug CapSpark Plug Cap
-
17293830005 Rubber PlugRubber Plug
-
18278001091 Cable Red (battery). Includes 18 - 20.Cable Red (battery). Includes 18 - 20.
-
19278000100 Electric CapElectric Cap
-
20278000098 Grommet (Black)Grommet (Black)
-
21278001458 Electric Box Harness. Includes 21 - 29.Electric Box Harness. Includes 21 - 29.
-
22270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
23278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
24278000631 Male TerminalMale Terminal
-
25409012600 Open BarrelOpen Barrel
-
26278001113 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
27278001114 Female TerminalFemale Terminal
-
28278001468 Female Term (Packard)Female Term (Packard)
-
29278001467 Male Housing (3 Circ)Male Housing (3 Circ)
-
30278001495 Ground PlateGround Plate
-
31278001512 InsulatorInsulator
-
32278001453 Fuse Harness 30 Amp. Includes 32 - 36.Fuse Harness 30 Amp. Includes 32 - 36.
-
33410917200 30 Amp. Fuse30 Amp. Fuse
-
34515175260 Female Terminal (Deutsch)Female Terminal (Deutsch)
-
35515175259 Joint HousingJoint Housing
-
36409012600 Open BarrelOpen Barrel
-
37293200030 GasketGasket
-
38278001454 Spark Plug WireSpark Plug Wire
-
278001521 Spark Plug WireSpark Plug Wire
-
39278001522 Starter Cable (Red). Includes 39 - 41.Starter Cable (Red). Includes 39 - 41.
-
40278000100 Electrical Box CapElectrical Box Cap
-
41278000098 Grommet (Black)Grommet (Black)
-
42278001574 Spark Plug NGKSpark Plug NGK
-
43234001600 Flat Washer 10 mmFlat Washer 10 mm
-
44232561600 Hexagonal Stop Nut M6Hexagonal Stop Nut M6
-
45232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
46234062600 Flat Washer 6 mmFlat Washer 6 mm
-
47278001503 Box SupportBox Support
-
48278001430 Battery SupportBattery Support
-
49278001016 Temperature SensorTemperature Sensor
-
50293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
51293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
52293850029 Clip StrapClip Strap
-
53293150037 Rivet 3/16Rivet 3/16
-
54278001234 Battery Lower PadBattery Lower Pad
-
55278000712 BatteryBattery
-
56211000045 Screw HexScrew Hex
-
57211200018 Flat Washer 6 mmFlat Washer 6 mm
-
58211000022 Nut M6Nut M6
-
59293850021 Rubber StrapRubber Strap
-
60207302060 Screw Hex. M10 x 20 (Scotch Grip)Screw Hex. M10 x 20 (Scotch Grip)
-
61207161260 Hexagonal Screw M6 x 12Hexagonal Screw M6 x 12
-
62278000020 Wire Cap (Battery)Wire Cap (Battery)
-
63278001494 Harness-Box. Includes 63 - 67.Harness-Box. Includes 63 - 67.
-
64278001477 Housing-Tab (Deutsch)Housing-Tab (Deutsch)
-
65515175261 Terminal-Male (Deutsch)Terminal-Male (Deutsch)
-
66278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
67293000052 Cap-SealingCap-Sealing
-
68278000559 Collar SupportCollar Support
-
69278001597 Wire SupportWire Support
-
70234061600 Flat Washer 6 mmFlat Washer 6 mm
-
71293750002 Tie Rap 130 mmTie Rap 130 mm
-
73278001443 Fuse 25 AmpFuse 25 Amp
-
278001343 Fuse 15 AmpFuse 15 Amp
