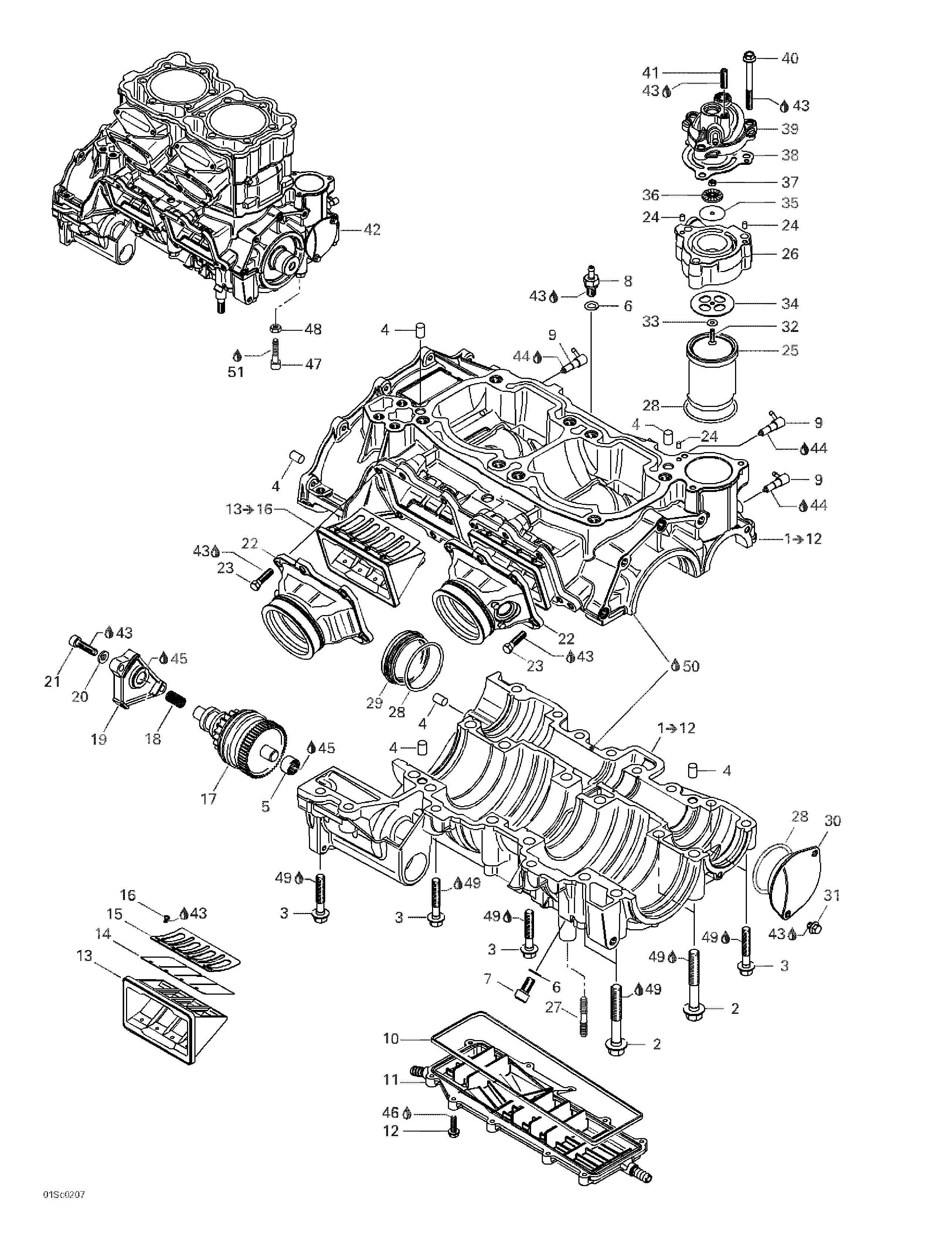

01- Crankcase, Reed Valve для BRP GTX DI, 5563/5564/5595/5596 - 2002
-
№АртикулНазвание
-
1290888532 Crankcase Ass'y >. Includes 1 - 12.Crankcase Ass'y >. Includes 1 - 12.
-
2290941333 Flanged Screw M10 x 73,5Flanged Screw M10 x 73,5
-
3290940638 Flanged Screw M8 x 45Flanged Screw M8 x 45
-
4290632010 Pin 8 x 12Pin 8 x 12
-
5290232480 Needle BushingNeedle Bushing
-
6420950141 Sealing RingSealing Ring
-
7205081660 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
8290640970 Vent Nipple M8Vent Nipple M8
-
9420956510 Check ValveCheck Valve
-
10290931880 Rubber RingRubber Ring
-
11290811430 Waterchannel CoverWaterchannel Cover
-
12290841558 Taptite ScrewTaptite Screw
-
13290924602 Reed Valve Ass'y. Includes 13 - 16.Reed Valve Ass'y. Includes 13 - 16.
-
14290924612 Reed PedalReed Pedal
-
15290924617 Reed Pedal StopReed Pedal Stop
-
16420941215 Oval Head Screw M3 x 5Oval Head Screw M3 x 5
-
17290888042 Starter Drive Ass'yStarter Drive Ass'y
-
18290938204 SpringSpring
-
19290811210 CoverCover
-
20420845020 Spring WasherSpring Washer
-
21420840401 Socket Head Screw M6 x 22Socket Head Screw M6 x 22
-
22290867890 Carburator Adapter Ass'yCarburator Adapter Ass'y
-
23207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
24290232020 PinPin
-
25290923910 Compressor SleeveCompressor Sleeve
-
26290923891 Compressor HeadCompressor Head
-
27420840290 Stud M10 x 18Stud M10 x 18
-
28290230300 O-RingO-Ring
-
29290811200 Bearing CoverBearing Cover
-
30290811205 Bearing CoverBearing Cover
-
31207661244 Hex. Flanged Screw M6 x 12Hex. Flanged Screw M6 x 12
-
32290841368 Oval Head ScrewOval Head Screw
-
33290944590 WasherWasher
-
34290854500 Inlet Reed DiskInlet Reed Disk
-
35290854510 Outlet Reed DiskOutlet Reed Disk
-
36290944600 Diaphragm GuideDiaphragm Guide
-
37290242533 Lock Nut M4Lock Nut M4
-
38290931870 GasketGasket
-
39290923901 Compressor CoverCompressor Cover
-
40290640563 Hex. Flanged ScrewHex. Flanged Screw
-
41290640873 Adjuster Screw M6 x 25Adjuster Screw M6 x 25
-
42290094706 Short Block Ass'y (947 DI)Short Block Ass'y (947 DI)
-
43293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
44413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
45413707000 Molykote 111Molykote 111
-
46293800070 Loctite Antiseize Lube, 8 ozLoctite Antiseize Lube, 8 oz
-
47205003060 Socket Screw M10 x 30Socket Screw M10 x 30
-
48232001600 Nut M10Nut M10
-
49413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
50293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
51293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
52290888134 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
