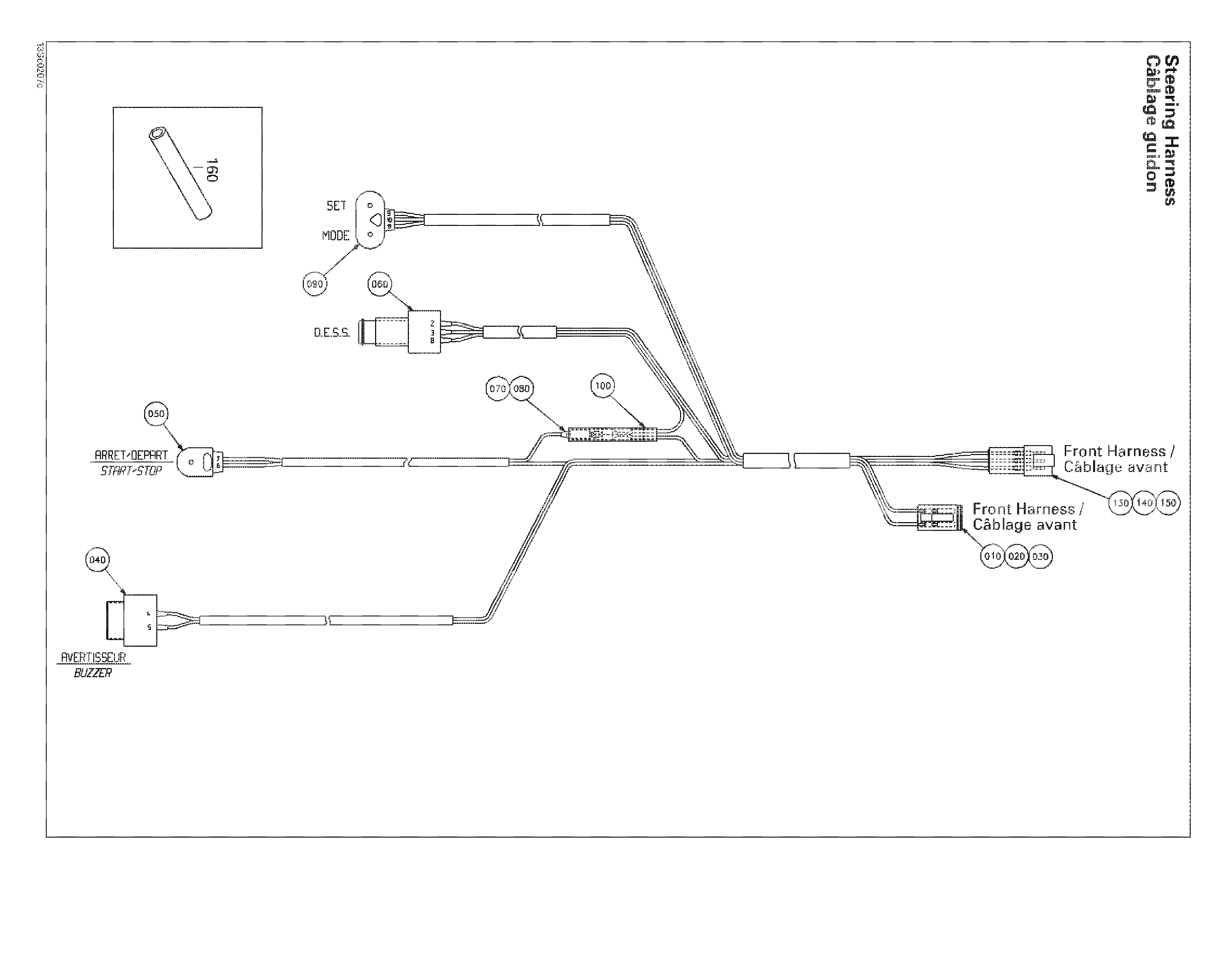

10- Electrical Harness для BRP GTX DI, 5563/5564/5595/5596 - 2002
-
№АртикулНазвание
-
10278001608 Steering Harness Ass'y. Includes 10 - 160.Steering Harness Ass'y. Includes 10 - 160.
-
10278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
20278000632 Female TerminalFemale Terminal
-
30278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
40278001586 BuzzerBuzzer
-
50278001716 Switch Ass'ySwitch Ass'y
-
60278001734 Safety SwitchSafety Switch
-
70278000230 Male TerminalMale Terminal
-
80278001008 Insulating SheathInsulating Sheath
-
90278001590 Mode/Set SwitchMode/Set Switch
-
100293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
130409207000 Male HousingMale Housing
-
140409207600 Lock-MaleLock-Male
-
150278000631 Terminal-MaleTerminal-Male
-
160293100012 Housing 9 mm (Meter)Housing 9 mm (Meter)
-
515175830 Vinyl Low Temp Housing 1/2'' (Meter)Vinyl Low Temp Housing 1/2'' (Meter)
-
293100011 Vinyl Housing 1'' (Meter)Vinyl Housing 1'' (Meter)
-
512059668 Thermoretractable TubingThermoretractable Tubing
