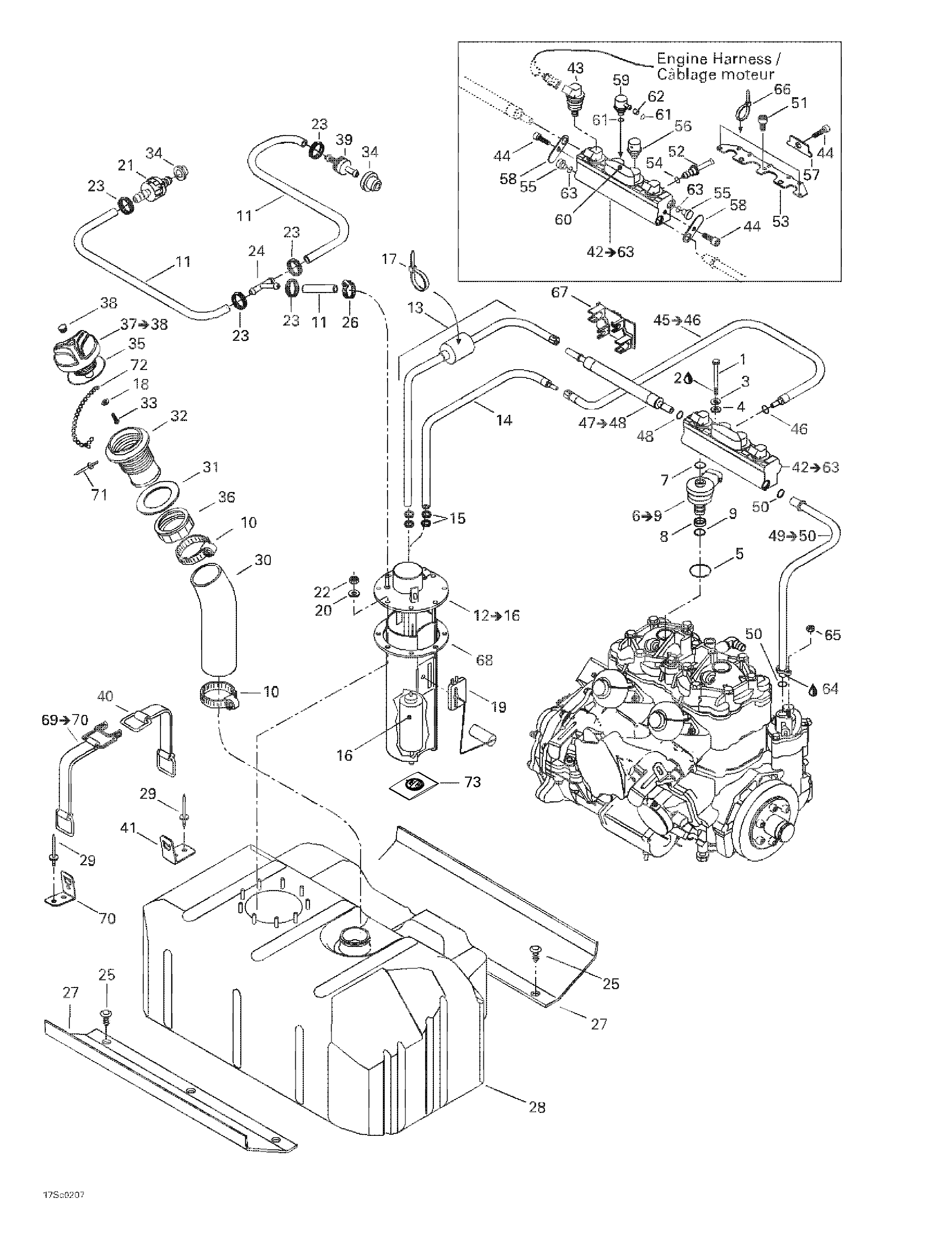

02- Fuel System для BRP GTX DI, 5563/5564/5595/5596 - 2002
-
№АртикулНазвание
-
1207087060 Hex. Screw M8 x 70Hex. Screw M8 x 70
-
2293800060 Loctite 243, 10 mLLoctite 243, 10 mL
-
3234181601 Lock Washer 8 mmLock Washer 8 mm
-
4234081600 Washer 8 mmWasher 8 mm
-
5293300083 O-RingO-Ring
-
6275500545 Air Injector. Includes 6 - 9.Air Injector. Includes 6 - 9.
-
7293300084 O-RingO-Ring
-
8270600030 Injector RingInjector Ring
-
9293300076 O-RingO-Ring
-
10293650023 Tridon ClampTridon Clamp
-
11275500549 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
12275500540 Fuel Module Ass'y. Includes 12 - 16.Fuel Module Ass'y. Includes 12 - 16.
-
13275500559 Fuel Feeding Hose Ass'yFuel Feeding Hose Ass'y
-
14275500508 Fuel Return Hose Ass'yFuel Return Hose Ass'y
-
15293650140 Clamp OetikerClamp Oetiker
-
17293750008 Tie Rap 350 mmTie Rap 350 mm
-
18234032600 Washer 3 mmWasher 3 mm
-
19270600012 Sensor LevelSensor Level
-
20234052400 Flat Washer 5 mmFlat Washer 5 mm
-
21275500505 Check ValveCheck Valve
-
22232551200 Elastic Stop Nut M5Elastic Stop Nut M5
-
23293650050 Caillau Clic ClampCaillau Clic Clamp
-
24293710059 > Fitting> Fitting
-
25293730006 Dart BlackDart Black
-
26293650128 Tridon ClampTridon Clamp
-
27293830077 Pad RubberPad Rubber
-
28275500427 Fuel TankFuel Tank
-
29293150037 Rivet 3/16''Rivet 3/16''
-
30275500539 Filler Neck HoseFiller Neck Hose
-
31293250029 GasketGasket
-
32275500231 Filler NeckFiller Neck
-
33241140060 Flanged ScrewFlanged Screw
-
34293720029 GrommetGrommet
-
35293250075 GasketGasket
-
36211100012 Nut-Fuel Filler NeckNut-Fuel Filler Neck
-
37275500430 Fuel Tank Cap. Includes 37 - 38.Fuel Tank Cap. Includes 37 - 38.
-
38293000034 Cap SnapCap Snap
-
39275500398 Check ValveCheck Valve
-
40293850036 StrapStrap
-
41293850069 Strap Clip 90 DegStrap Clip 90 Deg
-
42275500556 Fuel Distributor. Includes 42 - 63.Fuel Distributor. Includes 42 - 63.
-
43275500460 Fuel InjectorFuel Injector
-
44205061260 Socket Screw M6 x 12Socket Screw M6 x 12
-
45275500558 Hose Ass'y. Includes 45 - 46.Hose Ass'y. Includes 45 - 46.
-
46293300070 O-RingO-Ring
-
47275500557 Hose Ass'y. Includes 47 - 48.Hose Ass'y. Includes 47 - 48.
-
48293300069 O-RingO-Ring
-
49270600022 Pressure Hose. Includes 49 - 50.Pressure Hose. Includes 49 - 50.
-
50293300070 O-RingO-Ring
-
51205051260 Socket Screw M5 x 12Socket Screw M5 x 12
-
52275500538 Air Return AdaptorAir Return Adaptor
-
53275500543 Retainer PlateRetainer Plate
-
54293300069 O-RingO-Ring
-
55275500544 CapCap
-
56275500463 Air RegulatorAir Regulator
-
57275500456 Retainer PlateRetainer Plate
-
58275500455 Retainer PlateRetainer Plate
-
59275500464 Fuel RegulatorFuel Regulator
-
60275500449 CoverCover
-
61293300072 O-RingO-Ring
-
62275500465 SpacerSpacer
-
63293300073 O-RingO-Ring
-
64293800070 Loctite Antiseize Lube, 8 ozLoctite Antiseize Lube, 8 oz
-
65232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
66293750001 Tie Rap 94 mmTie Rap 94 mm
-
67291001399 Tie ClampTie Clamp
-
68293250088 GasketGasket
-
69293850064 Strap. Includes 69 - 70.Strap. Includes 69 - 70.
-
70293850069 Strap Clip 90 DegStrap Clip 90 Deg
-
71390407900 Rivet 1/8Rivet 1/8
-
72275500518 Fuel Cap ChainFuel Cap Chain
-
73219700368 Lower FilterLower Filter
