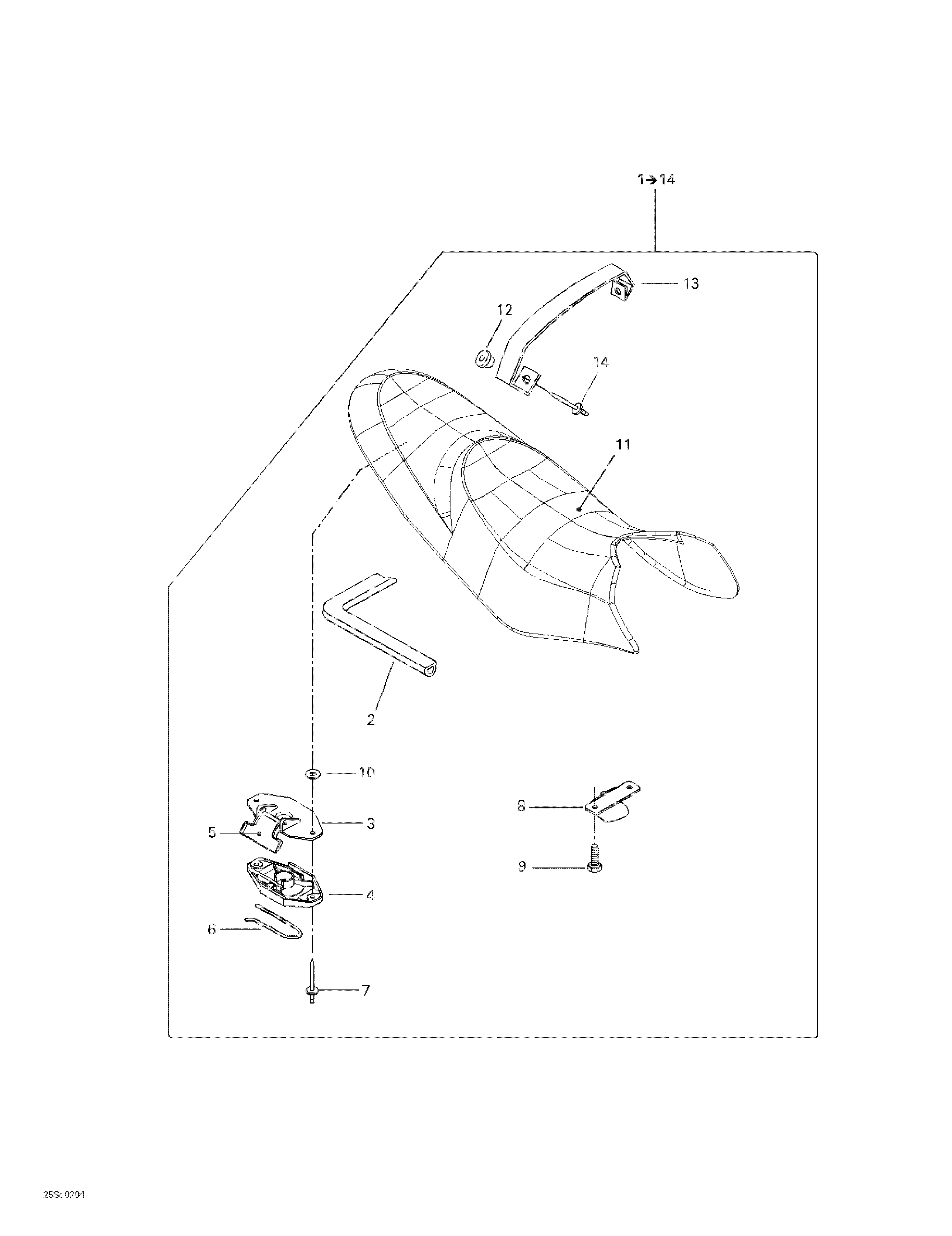

09- Seat для BRP RX DI (LE), 5583/5584/5585 - 2002
-
№АртикулНазвание
-
1269000703 Seat Ass'y. Includes 1 - 14. RX DI BLUE/BLEU.Seat Ass'y. Includes 1 - 14. RX DI BLUE/BLEU.
-
269000782 Seat Ass'y. RX DI YELLOW/JAUNE.Seat Ass'y. RX DI YELLOW/JAUNE.
-
2293200062 Seal (Meter)Seal (Meter)
-
3269700076 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269000077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
8291001485 Seat HookSeat Hook
-
9205961060 Socket Head Screw M6 x 10 (Scotch Grip)Socket Head Screw M6 x 10 (Scotch Grip)
-
10234061600 Flat Washer 6 mmFlat Washer 6 mm
-
11269000704 Cover and Foam. RX DI BLUE/BLEU.Cover and Foam. RX DI BLUE/BLEU.
-
269000783 Cover and Foam. RX DI YELLOW/JAUNE.Cover and Foam. RX DI YELLOW/JAUNE.
-
12293720067 GrommetGrommet
-
13269000705 Seat Strap. RX DI BLUE/BLEU.Seat Strap. RX DI BLUE/BLEU.
-
269000784 Seat Strap. RX DI YELLOW/JAUNE.Seat Strap. RX DI YELLOW/JAUNE.
-
14293150078 Pop RivetPop Rivet
