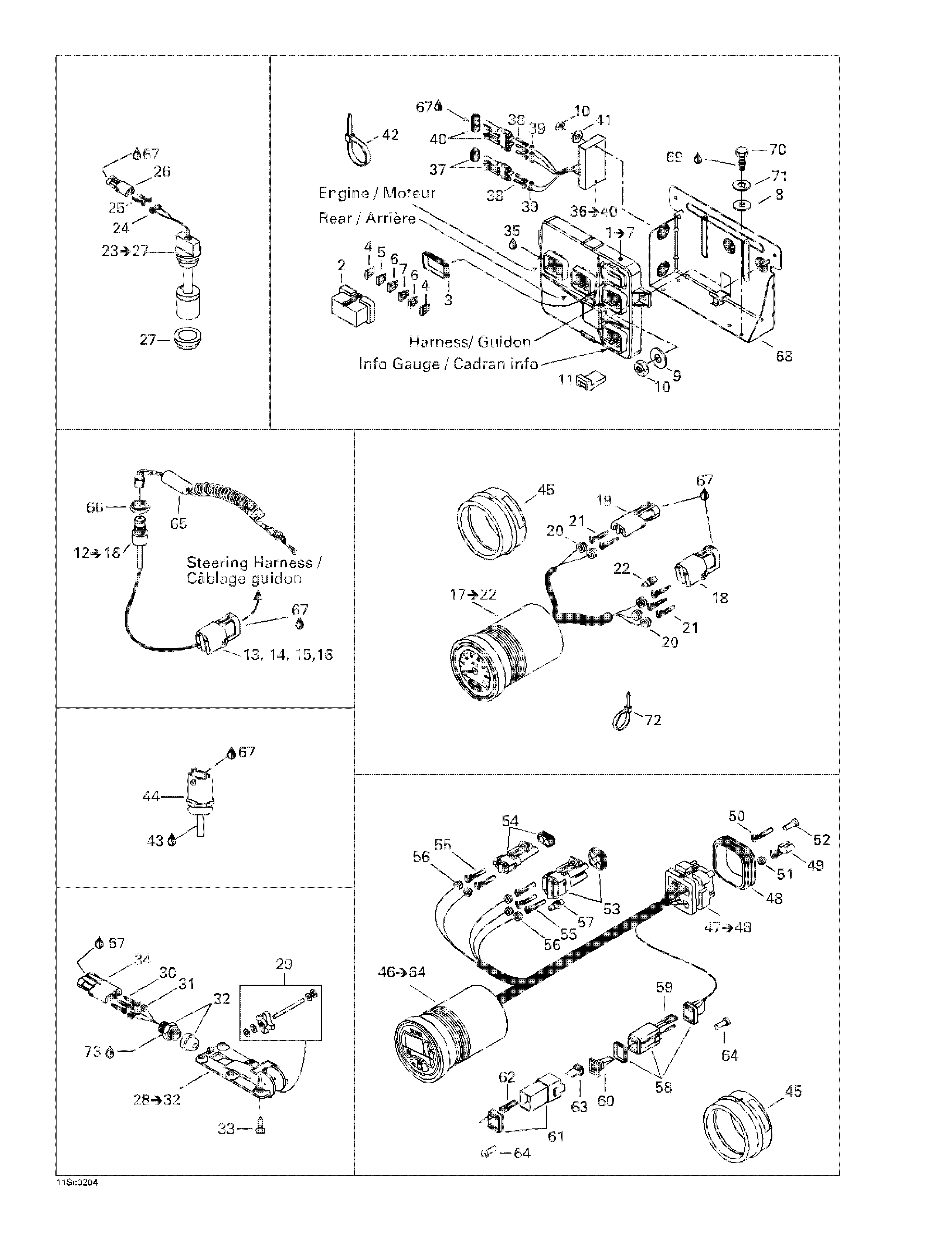

10- Electronic Module And Electrical Accessories для BRP RX DI (LE), 5583/5584/5585 - 2002
-
№АртикулНазвание
-
1278001747 Electronic Module Ass'y. Includes 1 - 7.Electronic Module Ass'y. Includes 1 - 7.
-
278001695 Electronic Module Ass'y (5591/5592)Electronic Module Ass'y (5591/5592)
-
2278001069 Fuse HolderFuse Holder
-
3278001070 SealSeal
-
4278000343 Fuse 15 AmpFuse 15 Amp
-
5278001442 Fuse 2 AmpFuse 2 Amp
-
6278001443 Fuse 25 AmpFuse 25 Amp
-
7278000704 Fuse 7.5 AmpFuse 7.5 Amp
-
8234052600 Washer 5 mmWasher 5 mm
-
9234062600 Flat Washer 6 mmFlat Washer 6 mm
-
10232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
11278001166 Module ProtectorModule Protector
-
12278000977 Safety Switch. Includes 12 - 16.Safety Switch. Includes 12 - 16.
-
13278000890 Female Housing (4 Circuits)(Packard)Female Housing (4 Circuits)(Packard)
-
14278000222 Male Terminal (18 Gauge) (Packard)Male Terminal (18 Gauge) (Packard)
-
15278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
16278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
17278001619 Speedometer. Includes 17 - 22.Speedometer. Includes 17 - 22.
-
18278000890 Female Housing (4 Circuits)(Packard)Female Housing (4 Circuits)(Packard)
-
19278000217 Female Housing (2 Circuits)(Packard)Female Housing (2 Circuits)(Packard)
-
20278001065 Wire Seal(Packard)Wire Seal(Packard)
-
21278000222 Male Terminal (18 Gauge) (Packard)Male Terminal (18 Gauge) (Packard)
-
22278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
23278001515 Oil sensor. Includes 23 - 27.Oil sensor. Includes 23 - 27.
-
24278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
25278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
26278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
27293720008 GrommetGrommet
-
28278001595 Speed Sensor. Includes 28 - 32.Speed Sensor. Includes 28 - 32.
-
29295500108 Paddle Wheel KitPaddle Wheel Kit
-
30278000222 Male TerminalMale Terminal
-
31278000218 Wire SealWire Seal
-
32293710031 Electrical ConnectorElectrical Connector
-
33250000020 Phillips Screw M5 x 10 (Scotch Grip)Phillips Screw M5 x 10 (Scotch Grip)
-
34278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
35293550015 Deoxit Lubricant, SprayDeoxit Lubricant, Spray
-
36278001554 Rectifier Ass'y. Includes 36 - 40.Rectifier Ass'y. Includes 36 - 40.
-
37278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
38409007300 Female TerminalFemale Terminal
-
39278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
40278000273 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
41234061600 Washer 6 mmWasher 6 mm
-
42293750008 Tie Rap 350 mmTie Rap 350 mm
-
43293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
44278001016 Temperature SensorTemperature Sensor
-
45293720047 Gauge SupportGauge Support
-
46278001626 LCD Info Gauge. Includes 46 - 64.LCD Info Gauge. Includes 46 - 64.
-
47278000993 Male Housing (26 Circuits). Includes 47 - 48.Male Housing (26 Circuits). Includes 47 - 48.
-
48278001307 Wire SealWire Seal
-
49278000994 Female TerminalFemale Terminal
-
50278000995 Female TerminalFemale Terminal
-
51278000996 Wire SealWire Seal
-
52293000070 Sealing CapSealing Cap
-
53278000891 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
54278000220 Male Housing (2 Circuit)Male Housing (2 Circuit)
-
55278000223 Female TerminalFemale Terminal
-
56278001065 Wire SealWire Seal
-
57278000216 Sealing CapSealing Cap
-
58278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
59278000632 Female TerminalFemale Terminal
-
60278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
61270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
62278000631 Male TerminalMale Terminal
-
63278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
64293000052 Sealing CapSealing Cap
-
65278001543 Safety Lanyard Ass'ySafety Lanyard Ass'y
-
66278000508 Safety Switch NutSafety Switch Nut
-
67293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
68278001516 Module SupportModule Support
-
69293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
70243042660 Screw PlastiteScrew Plastite
-
71211200043 Lock Washer 5 mmLock Washer 5 mm
-
72414115200 Tie Rap 180 mmTie Rap 180 mm
-
73293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
