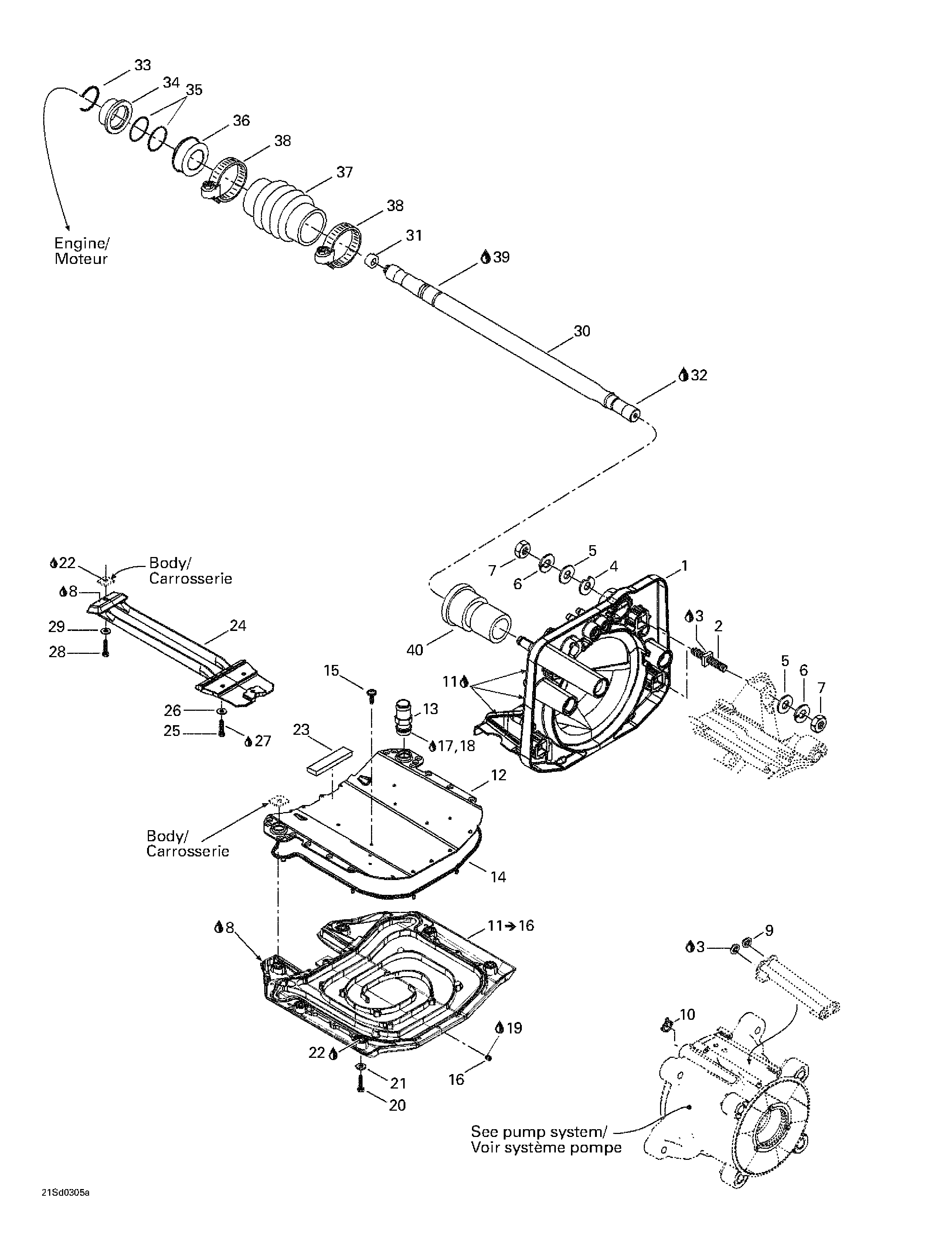

05- Propulsion System для BRP GTX 4-TEC Wake - 2003
-
№АртикулНазвание
-
1271001159 Pump supportPump support
-
2250300010 Square studSquare stud
-
3293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
4272000053 ShimShim
-
5234002600 Flat washer M10Flat washer M10
-
6234101601 Helical lock washer M10Helical lock washer M10
-
7232001600 Hex nut M10Hex nut M10
-
8293800066 Sealant, loctite 5900, 300 mlSealant, loctite 5900, 300 ml
-
9293250084 O-ringO-ring
-
10291001887 Reducer, YellowReducer, Yellow
-
11271001187 Riding plate ass'y. Includes 11 - 16.Riding plate ass'y. Includes 11 - 16.
-
13293710087 Straight plastic fittingStraight plastic fitting
-
14293250141 SealSeal
-
15250000064 Torx button head screw M6 x 14Torx button head screw M6 x 14
-
16250500005 Socket drain blug M6 x 12Socket drain blug M6 x 12
-
17293800041 Loctite-primer NLoctite-primer N
-
18293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
19293800013 Loctite, pipe sealant, 250 mlLoctite, pipe sealant, 250 ml
-
20207383060 Hex screw M8 x 30 (scotch grip)Hex screw M8 x 30 (scotch grip)
-
21234081600 Flat washer M8Flat washer M8
-
22296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
23293250087 GasketGasket
-
24271001169 Pump gratePump grate
-
25207161660 Hex screw M6 x 16Hex screw M6 x 16
-
26234061600 Flat washer M6Flat washer M6
-
27293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
28207383060 Hex screw M8 x 30 (scotch grip)Hex screw M8 x 30 (scotch grip)
-
29234081600 Flat washer M8Flat washer M8
-
30272000186 Drive shaftDrive shaft
-
31272000173 Drive shaft plugDrive shaft plug
-
32293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
33272000175 ''C'' clip''C'' clip
-
34272000176 Support ringSupport ring
-
35293300044 O-ringO-ring
-
36272000177 Carbon ringCarbon ring
-
37272000183 BellowBellow
-
38293650077 Norma clampNorma clamp
-
39293800070 Loctite 767, antiseize. GTX 4-TEC 6125/6126. .Loctite 767, antiseize. GTX 4-TEC 6125/6126. .
-
40292000975 Hull InsertHull Insert
