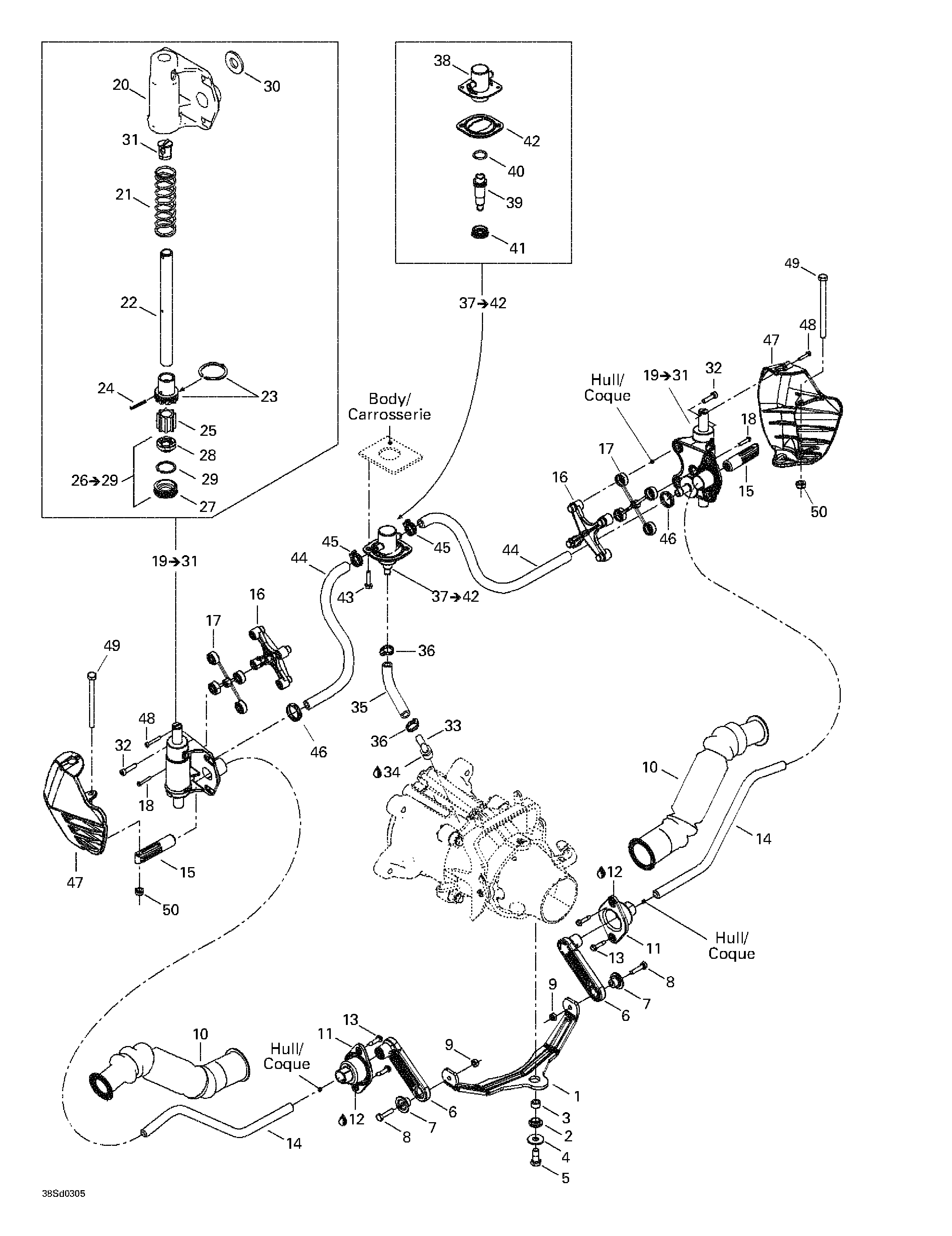

07- Off Power Assisted Steering для BRP GTX 4-TEC Wake - 2003
-
№АртикулНазвание
-
1277000979 U leverU lever
-
2271000321 Venturi bushingVenturi bushing
-
3277000980 BushingBushing
-
4234082600 Flat washer M8Flat washer M8
-
5250000150 Hex screw M8 x 20 (scotch grip)Hex screw M8 x 20 (scotch grip)
-
6277000978 LeverLever
-
7293900042 Flanged bushingFlanged bushing
-
8207162560 Hex screw M6 x 25Hex screw M6 x 25
-
9232561600 Hex elastic nut M6Hex elastic nut M6
-
10277001018 Seal tubeSeal tube
-
11277001164 Rod grommetRod grommet
-
12296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
13211000023 Hex flanged plastite screw #10 x 7/8''Hex flanged plastite screw #10 x 7/8''
-
14277000976 LH tie rodLH tie rod
-
277001063 R.h. tie rodR.h. tie rod
-
15277000998 Stabilizing fittingStabilizing fitting
-
16277001177 Support Plate Ass'ySupport Plate Ass'y
-
17277001177 Plaque De Support Ass.Plaque De Support Ass.
-
18241142560 Hex flanged screw K40 x 25Hex flanged screw K40 x 25
-
20277001142 R.h. cylinder supportR.h. cylinder support
-
277001138 LH cylinder supportLH cylinder support
-
21277000962 RingRing
-
22277001091 Rod pivotRod pivot
-
23277001080 Piston ass'yPiston ass'y
-
24250400014 Spring pin 3 x 20Spring pin 3 x 20
-
25277001168 SpacerSpacer
-
26265000008 Cover ass'y. Includes 26 - 29.Cover ass'y. Includes 26 - 29.
-
27265000009 CoverCover
-
30293250119 LH sealLH seal
-
31277001185 InsertInsert
-
32205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
33271001298 Elbow 90 Deg. ass'yElbow 90 Deg. ass'y
-
34293800018 Loctite 592, pipie sealant, 50 mlLoctite 592, pipie sealant, 50 ml
-
35276000101 HoseHose
-
36293650080 Norma clampNorma clamp
-
37277001178 Valve ass'y. Includes 37 - 42.Valve ass'y. Includes 37 - 42.
-
40414542700 O-ringO-ring
-
41265000009 CoverCover
-
42293250144 SealSeal
-
43211000023 Hex flanged plastite screw #10 x 7/8''Hex flanged plastite screw #10 x 7/8''
-
44276000001 Hose 12.5 mmHose 12.5 mm
-
45293650130 Tridon clampTridon clamp
-
46293650123 Oetiker clampOetiker clamp
-
47277001143 LH side vanesLH side vanes
-
277001144 R.h. side vanesR.h. side vanes
-
48205042560 Socket screw M4 x 25Socket screw M4 x 25
-
49250000077 Hex screw M8 x 110Hex screw M8 x 110
-
50232581600 Hex elastic nut M8Hex elastic nut M8
