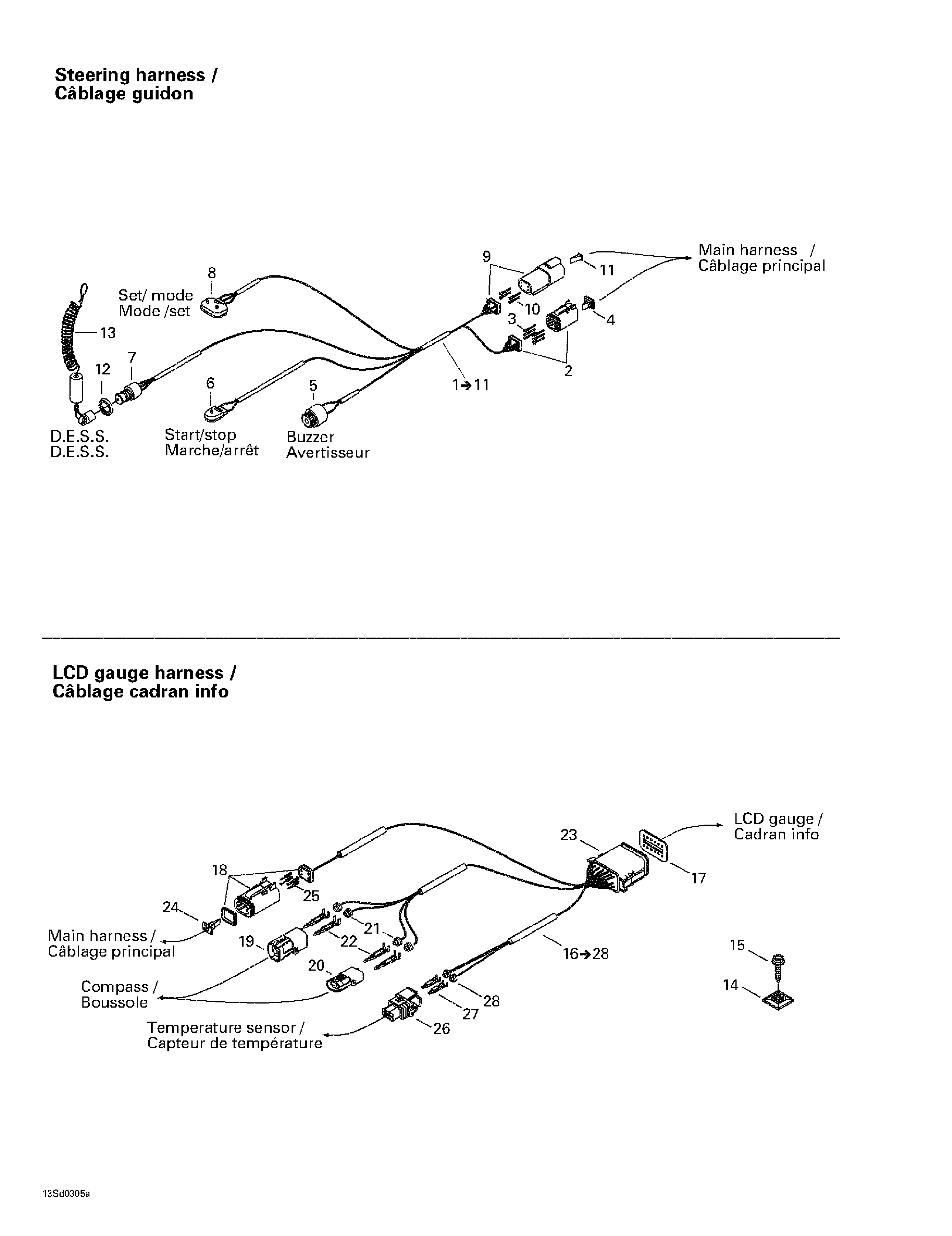

10- Electrical Harness 1 для BRP GTX 4-TEC Wake - 2003
-
№АртикулНазвание
-
1278001732 Steering harness. Includes 1 - 11.Steering harness. Includes 1 - 11.
-
2278000736 Male housing (6 circuits)Male housing (6 circuits)
-
3278000632 Female terminalFemale terminal
-
4278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
5278001586 BuzzerBuzzer
-
6278001733 Start/Stop SwitchStart/Stop Switch
-
7278001734 Safety switchSafety switch
-
8278001755 Mode/set switchMode/set switch
-
9278000635 Female housing (4 circuits)Female housing (4 circuits)
-
10278000631 Male terminalMale terminal
-
11278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
12278000508 Safety switch nutSafety switch nut
-
13278001543 Lanyard safetyLanyard safety
-
14293750026 Tie rap mountTie rap mount
-
15241141360 Hex flanged screw K40 x 13Hex flanged screw K40 x 13
-
16278001702 Gauge harness ass'y. Includes 16 - 28.Gauge harness ass'y. Includes 16 - 28.
-
17409015700 Female lock (12 circuits)Female lock (12 circuits)
-
18278000739 Male housing (4 circuits)Male housing (4 circuits)
-
19278000890 Female housing (4 circuits)Female housing (4 circuits)
-
20278000217 Female housing (2 circuits)Female housing (2 circuits)
-
21278000218 Wire sealWire seal
-
22278000222 Male terminalMale terminal
-
23409015900 Female housing (12 circuits)Female housing (12 circuits)
-
24278000738 Male wedge (4 ways)Male wedge (4 ways)
-
25278000632 Female terminalFemale terminal
-
26278001005 Male housing (2 circuits)Male housing (2 circuits)
-
27278000998 Female terminalFemale terminal
-
28278000999 Wire sealWire seal
