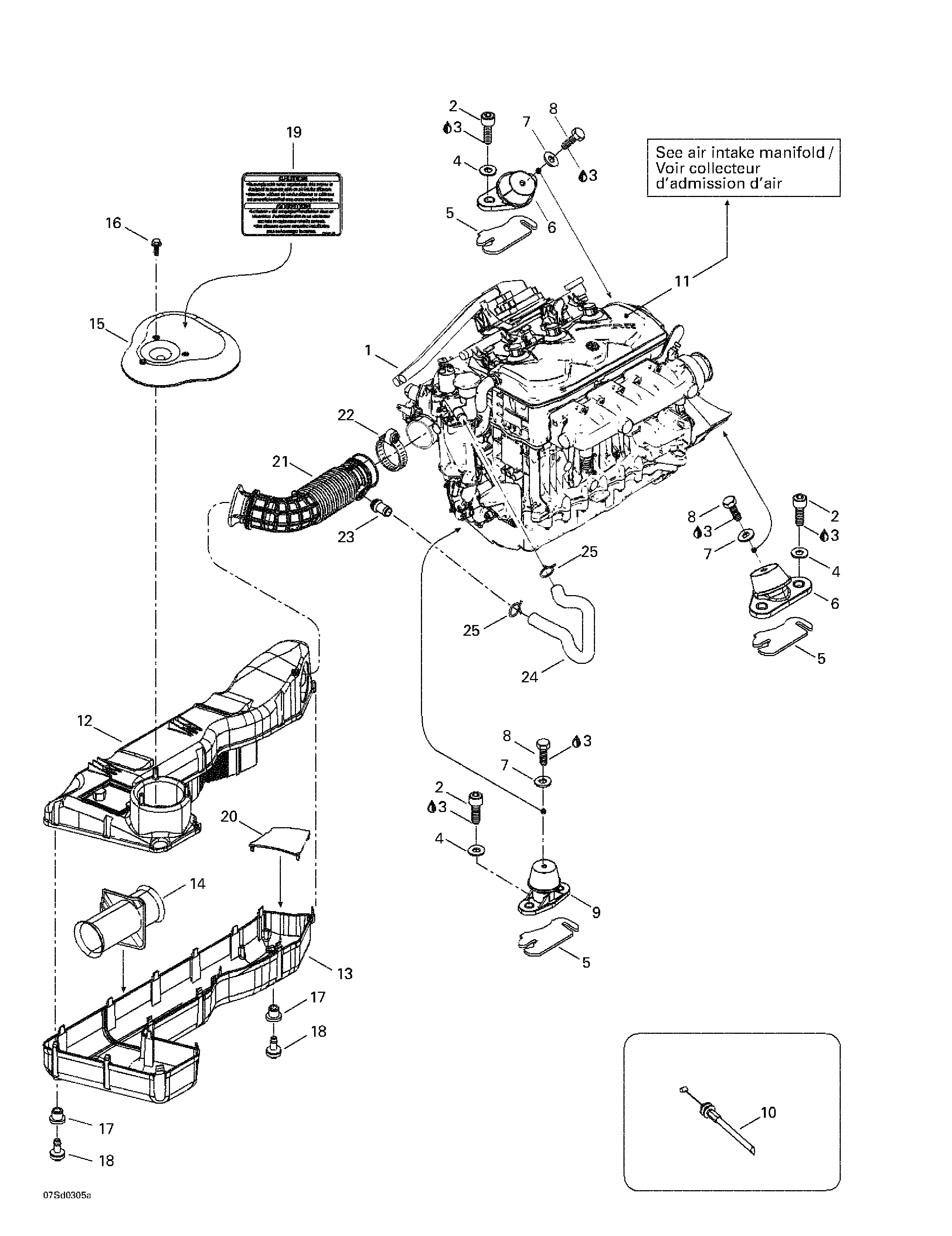

01- Engine Support And Air Intake для BRP GTX 4-TEC - 2003
-
№АртикулНазвание
-
1270000567 Rotax engine 4 strokes 1503Rotax engine 4 strokes 1503
-
2205084060 Socket screw M8 x 40Socket screw M8 x 40
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4250200018 Conical washerConical washer
-
5270000445 Shim 0.3 mmShim 0.3 mm
-
270000446 Shim 1.3 mmShim 1.3 mm
-
6270000510 Rubber mountRubber mount
-
7234082600 Flat washer M8Flat washer M8
-
8207182560 Hex screw M8 x 25Hex screw M8 x 25
-
9270000489 Rubber mountRubber mount
-
10277001170 Throttle cableThrottle cable
-
11420660172 Stick coil coverStick coil cover
-
12273000189 Air silencer upper shellAir silencer upper shell
-
13273000190 Air silencer lower shellAir silencer lower shell
-
14273000191 Connector tubeConnector tube
-
15273000192 Air silencer coverAir silencer cover
-
16241141660 Hex flanged screw K40 x 16Hex flanged screw K40 x 16
-
17293720064 GrommetGrommet
-
18275500454 Check valveCheck valve
-
19516001191 Air silencer instruction labelAir silencer instruction label
-
20273000206 DeflectorDeflector
-
21273000187 Intake hoseIntake hose
-
22293650064 Tridon clampTridon clamp
-
23273000195 BreatherBreather
-
24275500497 HoseHose
-
25293650115 Spring clampSpring clamp
