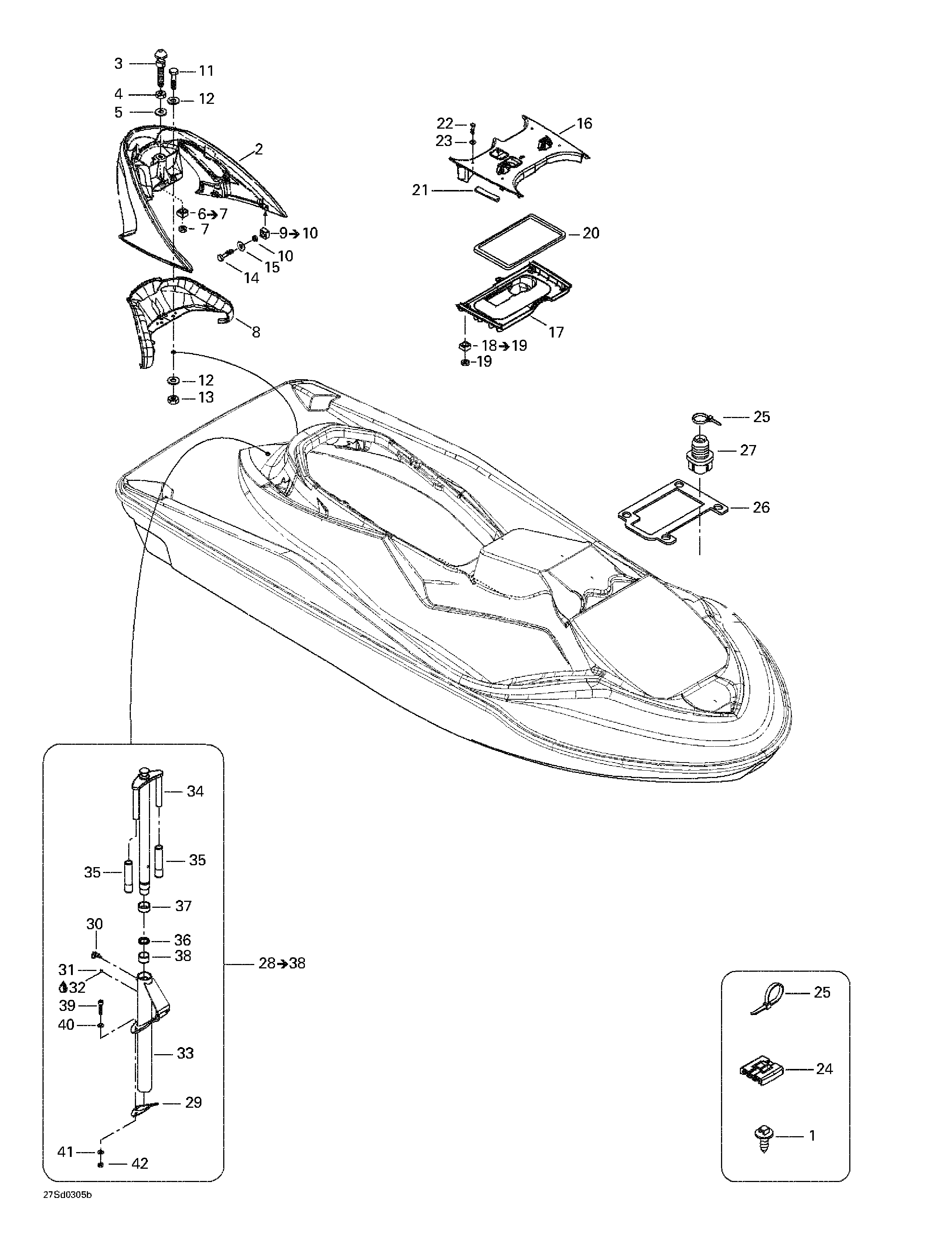

09- Body, Front View для BRP GTX 4-TEC - 2003
-
№АртикулНазвание
-
1293730018 Mount dartMount dart
-
2269000722 Rear grab handleRear grab handle
-
3291000945 Seat studSeat stud
-
4232100600 Hex jam nut M10Hex jam nut M10
-
5234002600 Flat washer M10Flat washer M10
-
6271000598 Nut housing M10. Includes 6 - 7.Nut housing M10. Includes 6 - 7.
-
7232501600 Hex elastic nut M10Hex elastic nut M10
-
8269000749 Handle coverHandle cover
-
9269500725 Nut housing ass'y M6. Includes 9 - 10.Nut housing ass'y M6. Includes 9 - 10.
-
10232561600 Hex elastic nut M6Hex elastic nut M6
-
11207084560 Hex screw M8 x 45Hex screw M8 x 45
-
12234081600 Flat washer M8Flat washer M8
-
13232581600 Hex elastic nut M8Hex elastic nut M8
-
14207162560 Hex screw M6 x 25Hex screw M6 x 25
-
15234062600 Flat washer M6Flat washer M6
-
16291001602 Upper bridgeUpper bridge
-
17291001599 Lower bridgeLower bridge
-
18269501166 Nut housing ass'y M6. Includes 18 - 19.Nut housing ass'y M6. Includes 18 - 19.
-
19232561200 Hex elastic nut M6Hex elastic nut M6
-
20293200090 GasketGasket
-
21293250008 GasketGasket
-
22207167560 Hex screw M6 x 75Hex screw M6 x 75
-
23234062600 Flat washer M6Flat washer M6
-
24293750025 Tie-rap mountTie-rap mount
-
25414115200 Tie-rapTie-rap
-
26293250068 GasketGasket
-
27293720042 GrommetGrommet
-
28291001920 Pole support ass'y. Includes 28 - 38. BLUE (B-544) GTX 4-TEC 6125/6126.Pole support ass'y. Includes 28 - 38. BLUE (B-544) GTX 4-TEC 6125/6126.
-
29293250145 Seal. GTX 4-TEC 6125/6126.Seal. GTX 4-TEC 6125/6126.
-
30204070412 Retractable spring pin. GTX 4-TEC 6125/6126.Retractable spring pin. GTX 4-TEC 6125/6126.
-
31206560860 Socket set screw M6 x 8. GTX 4-TEC 6125/6126.Socket set screw M6 x 8. GTX 4-TEC 6125/6126.
-
32293800060 Loctite 243, 10 ml. GTX 4-TEC 6125/6126.Loctite 243, 10 ml. GTX 4-TEC 6125/6126.
-
33291001921 Support. GTX 4-TEC 6125/6126.Support. GTX 4-TEC 6125/6126.
-
34291001903 Ski pole. GTX 4-TEC 6125/6126.Ski pole. GTX 4-TEC 6125/6126.
-
35M5340464 Handle grip. GTX 4-TEC 6125/6126.Handle grip. GTX 4-TEC 6125/6126.
-
36293300106 X-ring. GTX 4-TEC 6125/6126.X-ring. GTX 4-TEC 6125/6126.
-
37291001940 Upper sleeve. GTX 4-TEC 6125/6126.Upper sleeve. GTX 4-TEC 6125/6126.
-
38291001941 Lower sleeve. GTX 4-TEC 6125/6126.Lower sleeve. GTX 4-TEC 6125/6126.
-
39205484060 Socket Head Screw M8 X 40. BLUE (B-544) GTX 4-TEC 6125/6126.Socket Head Screw M8 X 40. BLUE (B-544) GTX 4-TEC 6125/6126.
-
40234081600 Flat washer M8. BLUE (B-544) GTX 4-TEC 6125/6126.Flat washer M8. BLUE (B-544) GTX 4-TEC 6125/6126.
-
41234082600 Flat washer M8. BLUE (B-544) GTX 4-TEC 6125/6126.Flat washer M8. BLUE (B-544) GTX 4-TEC 6125/6126.
-
42232581600 Hex elastic nut M6. BLUE (B-544) GTX 4-TEC 6125/6126.Hex elastic nut M6. BLUE (B-544) GTX 4-TEC 6125/6126.
