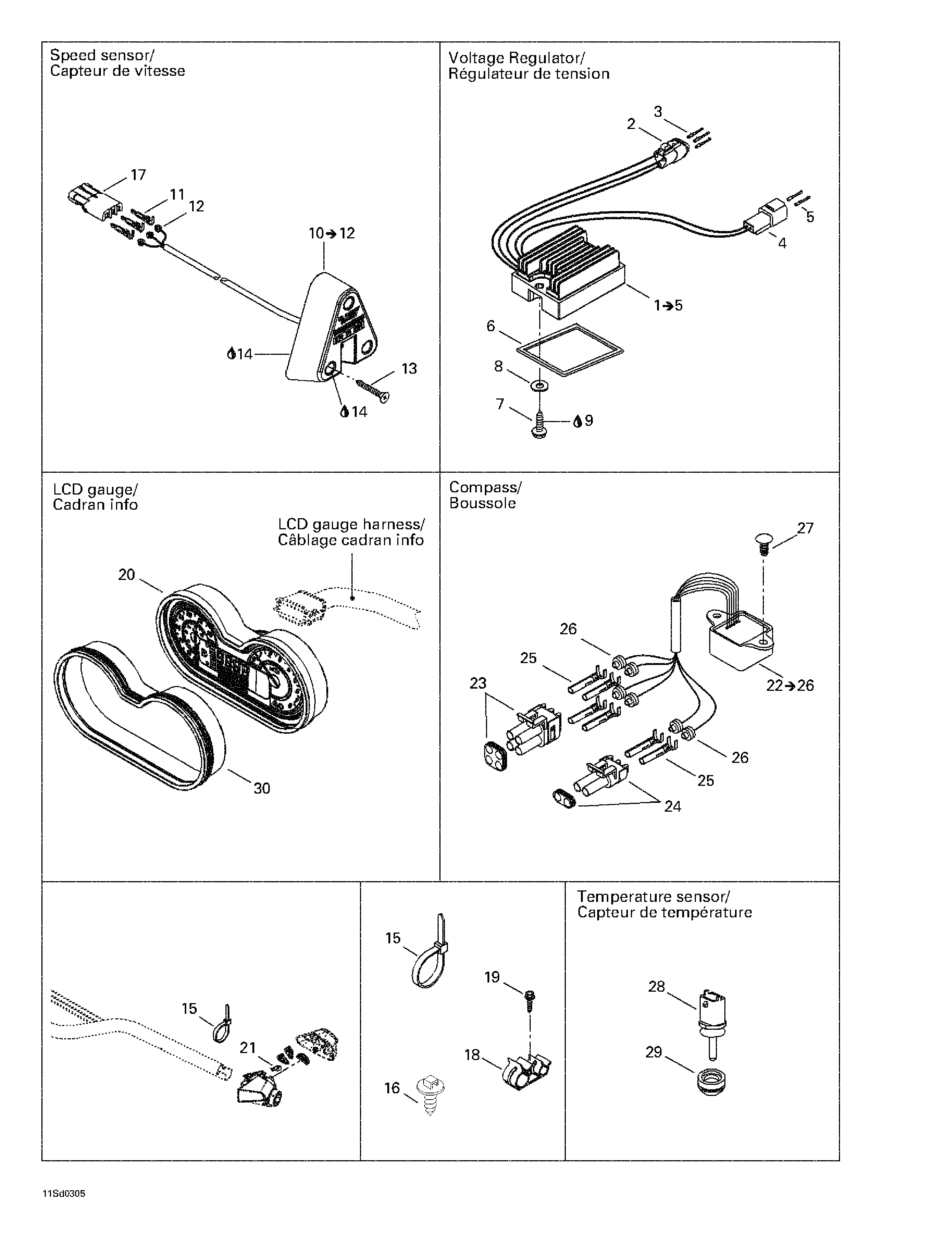

10- Electrical Accessories для BRP GTX 4-TEC - 2003
-
№АртикулНазвание
-
1278001581 Regulator. Includes 1 - 5.Regulator. Includes 1 - 5.
-
2409207400 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
3278000631 Male terminalMale terminal
-
4409206900 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
5515175568 Male TerminalMale Terminal
-
6293250123 R.h. sealR.h. seal
-
7211000023 Hex flanged plastite screw #10 x 7/8''Hex flanged plastite screw #10 x 7/8''
-
8234061600 Flat washer M6Flat washer M6
-
9293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
10278001585 Speed sensor. Includes 10 - 12.Speed sensor. Includes 10 - 12.
-
13211000021 Pan head Phillips screw #10 x 5/8''Pan head Phillips screw #10 x 5/8''
-
14296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
15293750002 Tie-rap 130 mmTie-rap 130 mm
-
293750027 Tie-rap 206 mmTie-rap 206 mm
-
293750008 Tie-rap 350 mmTie-rap 350 mm
-
414115200 Tie-rapTie-rap
-
16293730018 Mount dartMount dart
-
17278000281 Female housing (3 circuits)Female housing (3 circuits)
-
18275500553 RetainerRetainer
-
19241141660 Hex flanged screw K40 x 16Hex flanged screw K40 x 16
-
20278001823 LCD gaugeLCD gauge
-
21277001069 ''U'' Bracket''U'' Bracket
-
22278001243 Compass. Includes 22 - 26.Compass. Includes 22 - 26.
-
23278000891 Male housing (4 circuits)Male housing (4 circuits)
-
24278000220 Male housing (2 circuits)Male housing (2 circuits)
-
25278000223 Female terminalFemale terminal
-
26278000218 Wire sealWire seal
-
27293730010 DartDart
-
28270600000 Air sensorAir sensor
-
29278001054 IsolatorIsolator
-
30278001603 Gauge supportGauge support
