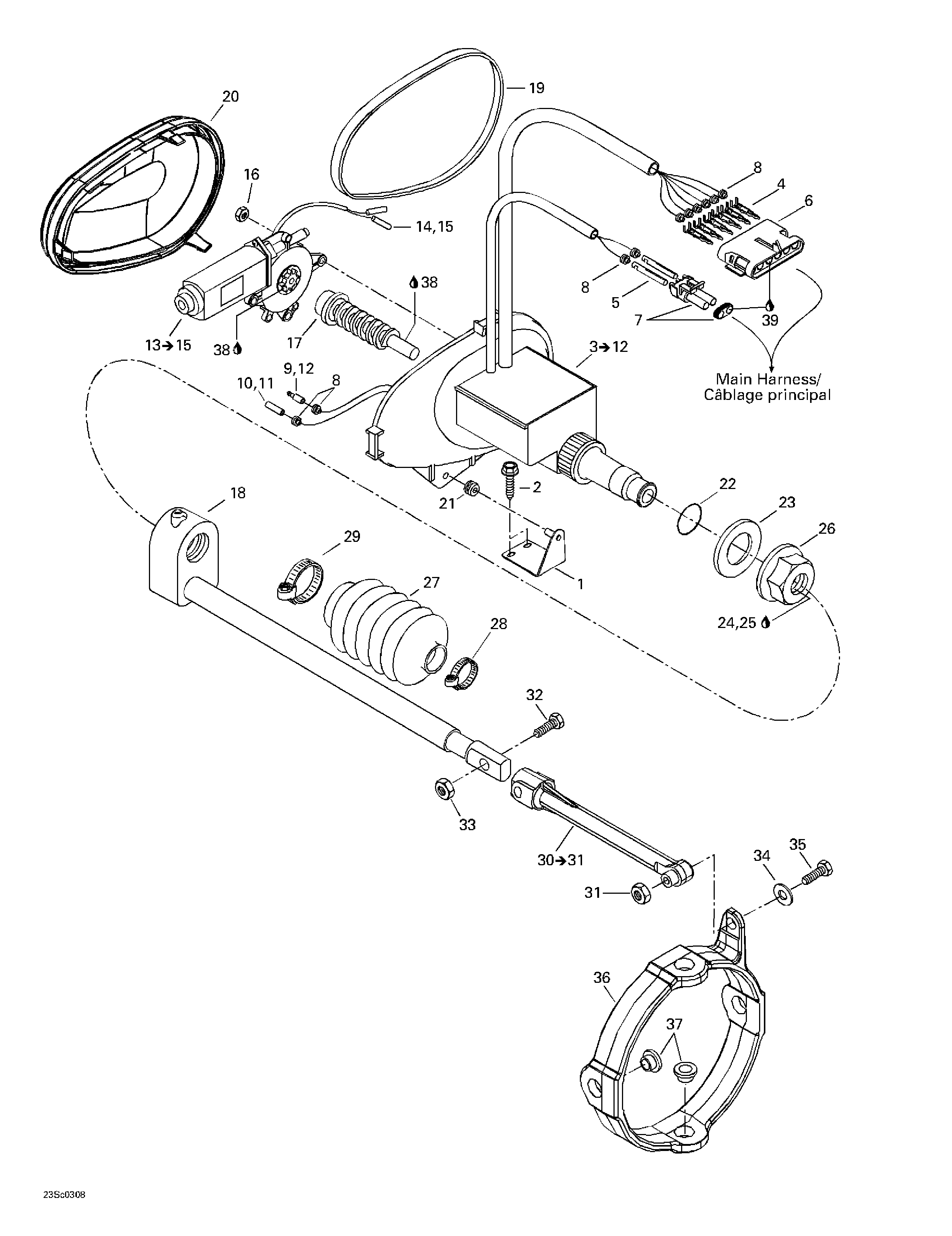

05- Trim для BRP RX DI, 6122/6123 - 2003
-
№АртикулНазвание
-
1292000250 VTS SupportVTS Support
-
2243041660 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
3278001605 VTS Housing Ass'y. Includes 3 - 12.VTS Housing Ass'y. Includes 3 - 12.
-
4278000222 Male TerminalMale Terminal
-
5278000223 Female TerminalFemale Terminal
-
6278000156 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
7278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
8278000218 Wire SealWire Seal
-
9278001008 Insulation SleeveInsulation Sleeve
-
10278001007 Insulation SleeveInsulation Sleeve
-
11278001009 Female TerminalFemale Terminal
-
12278000230 Male TerminalMale Terminal
-
13278001292 VTS Motor Ass'y. Includes 13 - 15.VTS Motor Ass'y. Includes 13 - 15.
-
14278000231 Insulating SheetInsulating Sheet
-
15278000230 Male TerminalMale Terminal
-
16232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
17278000428 Worm ScrewWorm Screw
-
18278001698 Sliding BlockSliding Block
-
19293200027 GasketGasket
-
20278000595 VTS CoverVTS Cover
-
21293720015 GrommetGrommet
-
22293300044 O-RingO-Ring
-
23293830027 Seal WasherSeal Washer
-
24293800041 Loctite, Primer NLoctite, Primer N
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26211100020 Special Nut M27Special Nut M27
-
27271000459 Protector HoseProtector Hose
-
28293650082 Daemar ClampDaemar Clamp
-
29293650083 Daemar ClampDaemar Clamp
-
30271001092 VTS Rod. Includes 30 - 31.VTS Rod. Includes 30 - 31.
-
31232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
32211000081 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
33232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
34234052600 Flat Washer 5 mmFlat Washer 5 mm
-
35250000018 Pivot ScrewPivot Screw
-
36271001009 Trimming RingTrimming Ring
-
37293900007 Venturi BushingVenturi Bushing
-
38293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
39293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
