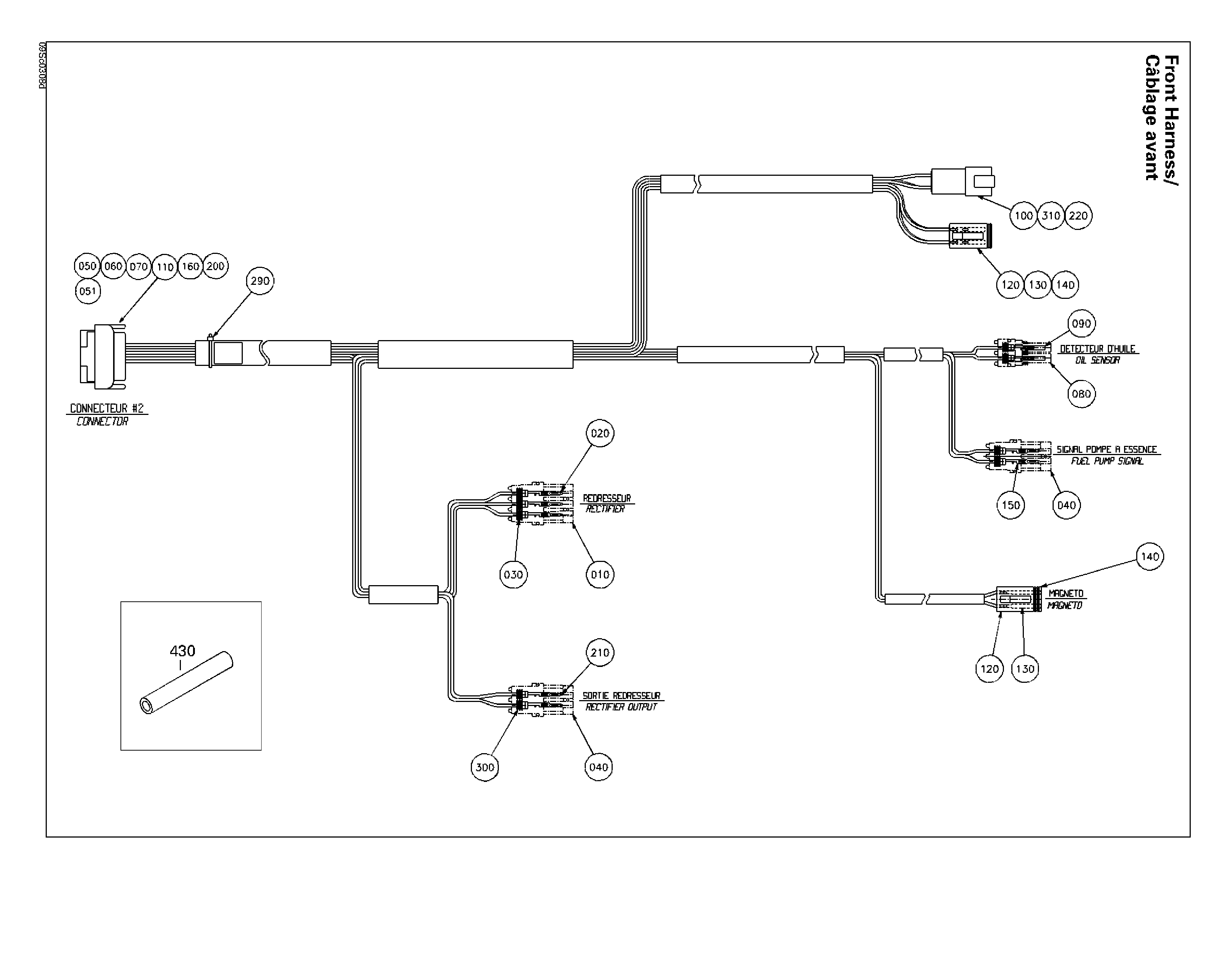

10- Front Harness для BRP RX DI, 6122/6123 - 2003
-
№АртикулНазвание
-
10278001826 Front Harness Ass'y. Includes 10 - 430.Front Harness Ass'y. Includes 10 - 430.
-
10278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
20409004300 Male TerminalMale Terminal
-
30278000218 Wire SealWire Seal
-
40278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
50278001062 Male Housing (26 Circuits). Includes 50 - 51.Male Housing (26 Circuits). Includes 50 - 51.
-
51278001307 Wire SealWire Seal
-
60278000995 Female TerminalFemale Terminal
-
70409013900 Sealing PlugSealing Plug
-
80278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
90278000223 Female TerminalFemale Terminal
-
100270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
110293000070 Sealing PlugSealing Plug
-
120278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
130278000632 Female TerminalFemale Terminal
-
140278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
150278000222 Male TerminalMale Terminal
-
160409011700 Female TerminalFemale Terminal
-
170278000216 Sealing PlugSealing Plug
-
200278001223 SealSeal
-
210278001576 Male TerminalMale Terminal
-
220278000631 Male TerminalMale Terminal
-
290293750002 Tie Rap 130mmTie Rap 130mm
-
300278001505 Wire SealWire Seal
-
310278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
430293100012 Housing 9 mm (Meter)Housing 9 mm (Meter)
-
515175830 Vinyl Low Temp Housing 1/2'' (Meter)Vinyl Low Temp Housing 1/2'' (Meter)
-
293100011 Vinyl Housing 1'' (Meter)Vinyl Housing 1'' (Meter)
-
512059668 Thermoretractable TubingThermoretractable Tubing
