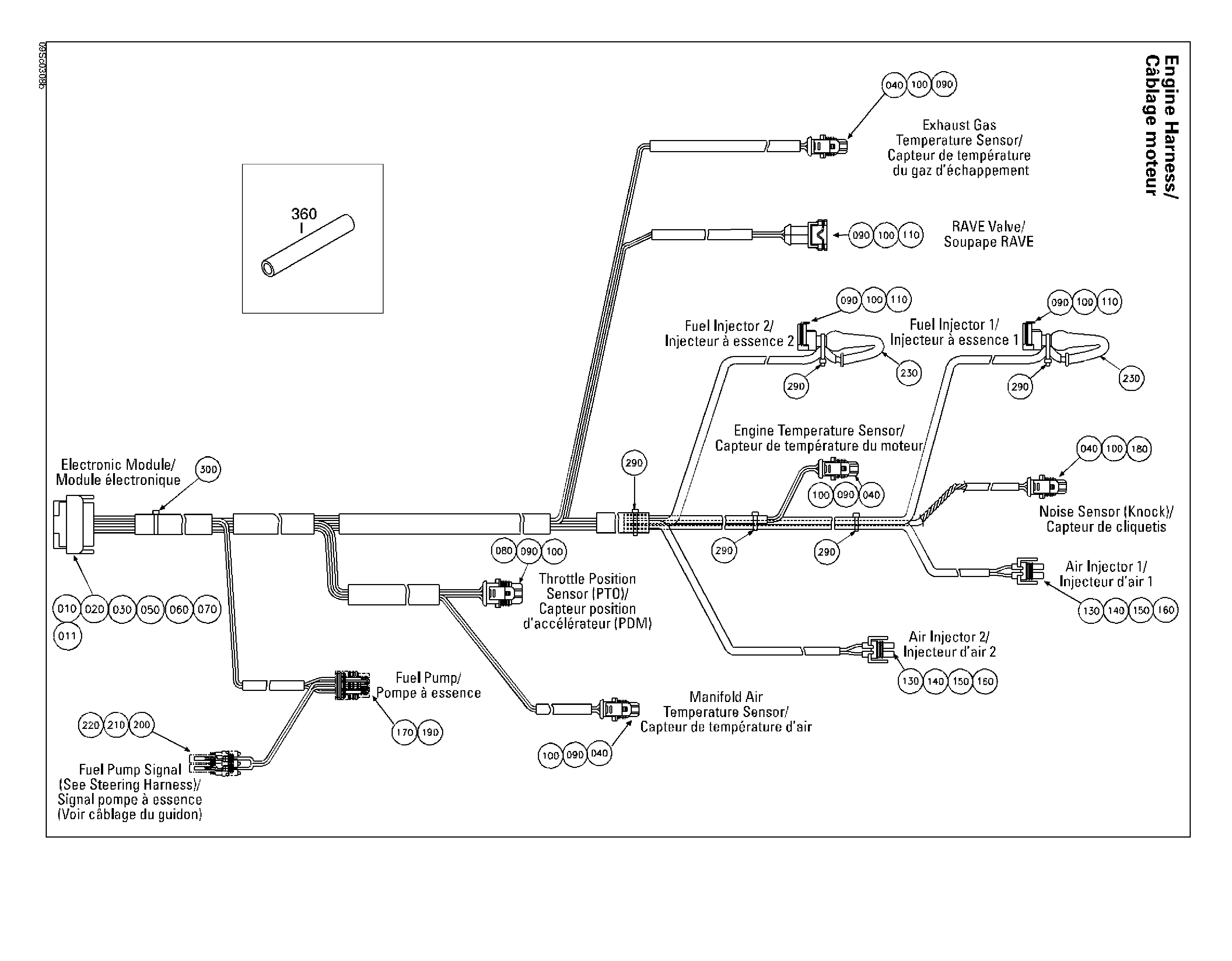

10- Engine Harness для BRP RX DI, 6122/6123 - 2003
-
№АртикулНазвание
-
10278001748 Engine Harness. Includes 10 - 360.Engine Harness. Includes 10 - 360.
-
10278001211 Male Housing (26 Circuits). Includes 10 - 11.Male Housing (26 Circuits). Includes 10 - 11.
-
11278001307 Wire SealWire Seal
-
20278000995 Female TerminalFemale Terminal
-
30278000996 Wire SealWire Seal
-
40278001005 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
50409013900 PlugPlug
-
60293000070 Sealing CapSealing Cap
-
70278000994 Female TerminalFemale Terminal
-
80278000997 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
90278000998 Female TerminalFemale Terminal
-
100278000999 Wire SealWire Seal
-
110278001003 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
130278001480 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
140278001481 Female TerminalFemale Terminal
-
150278001482 Wire SealWire Seal
-
160278001483 Secondary LockSecondary Lock
-
170278001308 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
180278001210 Female TerminalFemale Terminal
-
190278001114 Female TerminalFemale Terminal
-
200278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
210278000223 Female TerminalFemale Terminal
-
220278000218 Wire SealWire Seal
-
230278001484 Rubber CapRubber Cap
-
290293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
300293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
360293100012 Housing 9 mm (Meter)Housing 9 mm (Meter)
-
515175830 Vinyl Low Temp Housing 1/2'' (Meter)Vinyl Low Temp Housing 1/2'' (Meter)
-
293100011 Vinyl Housing 1'' (Meter)Vinyl Housing 1'' (Meter)
-
512059668 Thermoretractable TubingThermoretractable Tubing
