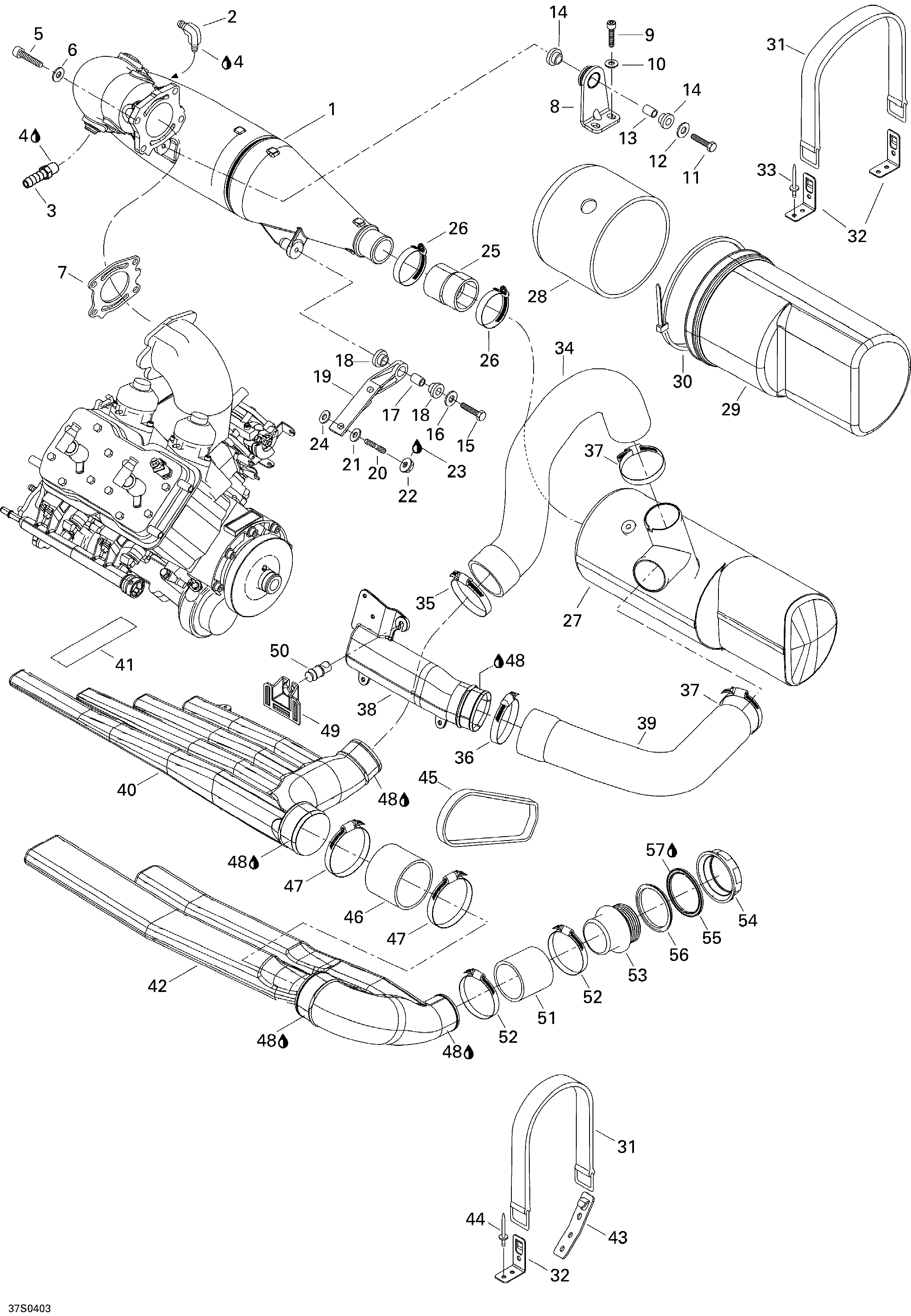

01- Exhaust для BRP GTI LE RFI - 2004
-
№АртикулНазвание
-
1274001098 Head PipeHead Pipe
-
2293710018 Elbow Fitting 90°Elbow Fitting 90°
-
3293710021 Male ConnectorMale Connector
-
4293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
5244003560 Socket Head Screw M10 X 35 (Scotch Grip)Socket Head Screw M10 X 35 (Scotch Grip)
-
6234001600 Flat Washer 10 mmFlat Washer 10 mm
-
7420931503 GasketGasket
-
8274001104 Pipe SupportPipe Support
-
9205582560 Socket Head Screw M8 X 25 (Scotch Grip)Socket Head Screw M8 X 25 (Scotch Grip)
-
10293050001 Washer 8 mmWasher 8 mm
-
11207284060 Hex Screw M8 X 40 (Scotch Grip)Hex Screw M8 X 40 (Scotch Grip)
-
12234082600 Flat Washer 8 mmFlat Washer 8 mm
-
13274000254 BushingBushing
-
14293830036 Rubber BushingRubber Bushing
-
15207284060 Hex Screw M8 X 40 (Scotch Grip)Hex Screw M8 X 40 (Scotch Grip)
-
16234082600 Flat Washer 8 mmFlat Washer 8 mm
-
17274000254 BushingBushing
-
18293830036 Rubber BushingRubber Bushing
-
19274000759 Support PipeSupport Pipe
-
20250300007 Stud M10 X 60Stud M10 X 60
-
21234001600 Flat Washer 10 mmFlat Washer 10 mm
-
22233101600 Hex Flanged Nut M10Hex Flanged Nut M10
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24234002600 Flat Washer 10 mmFlat Washer 10 mm
-
25274000170 Exhaust HoseExhaust Hose
-
26293650023 Tridon ClampTridon Clamp
-
27274001022 MufflerMuffler
-
28274000790 Cover Muffler (Front)Cover Muffler (Front)
-
29274000793 Cover Muffler (Rear)Cover Muffler (Rear)
-
30293750020 Tie Rap 838 mmTie Rap 838 mm
-
31293850036 StrapStrap
-
32293850076 Strap ClipStrap Clip
-
33293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
34274001028 Exhaust HoseExhaust Hose
-
35293650107 Tridon ClampTridon Clamp
-
36293650006 Tridon ClampTridon Clamp
-
37293650064 Tridon ClampTridon Clamp
-
38274001018 ResonatorResonator
-
39274001019 Exhaust HoseExhaust Hose
-
40274000700 LH ResonatorLH Resonator
-
41274000752 Rubber PadRubber Pad
-
42274000701 Resonator ExtensionResonator Extension
-
43293850030 Strap ClipStrap Clip
-
44293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
45293830034 Rubber StripRubber Strip
-
46274000726 Exhaust HoseExhaust Hose
-
47204000079 Tridon ClampTridon Clamp
-
48293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
49291001352 Pad SupportPad Support
-
50293830062 Rubber PadRubber Pad
-
51274000616 Exhaust HoseExhaust Hose
-
52293650064 Tridon ClampTridon Clamp
-
53274000843 Exhaust OutletExhaust Outlet
-
54274000224 Nut 72 mmNut 72 mm
-
55274000225 Stabilizing WasherStabilizing Washer
-
56293250041 GasketGasket
-
57296000309 Sealant Silicone, ClearSealant Silicone, Clear
