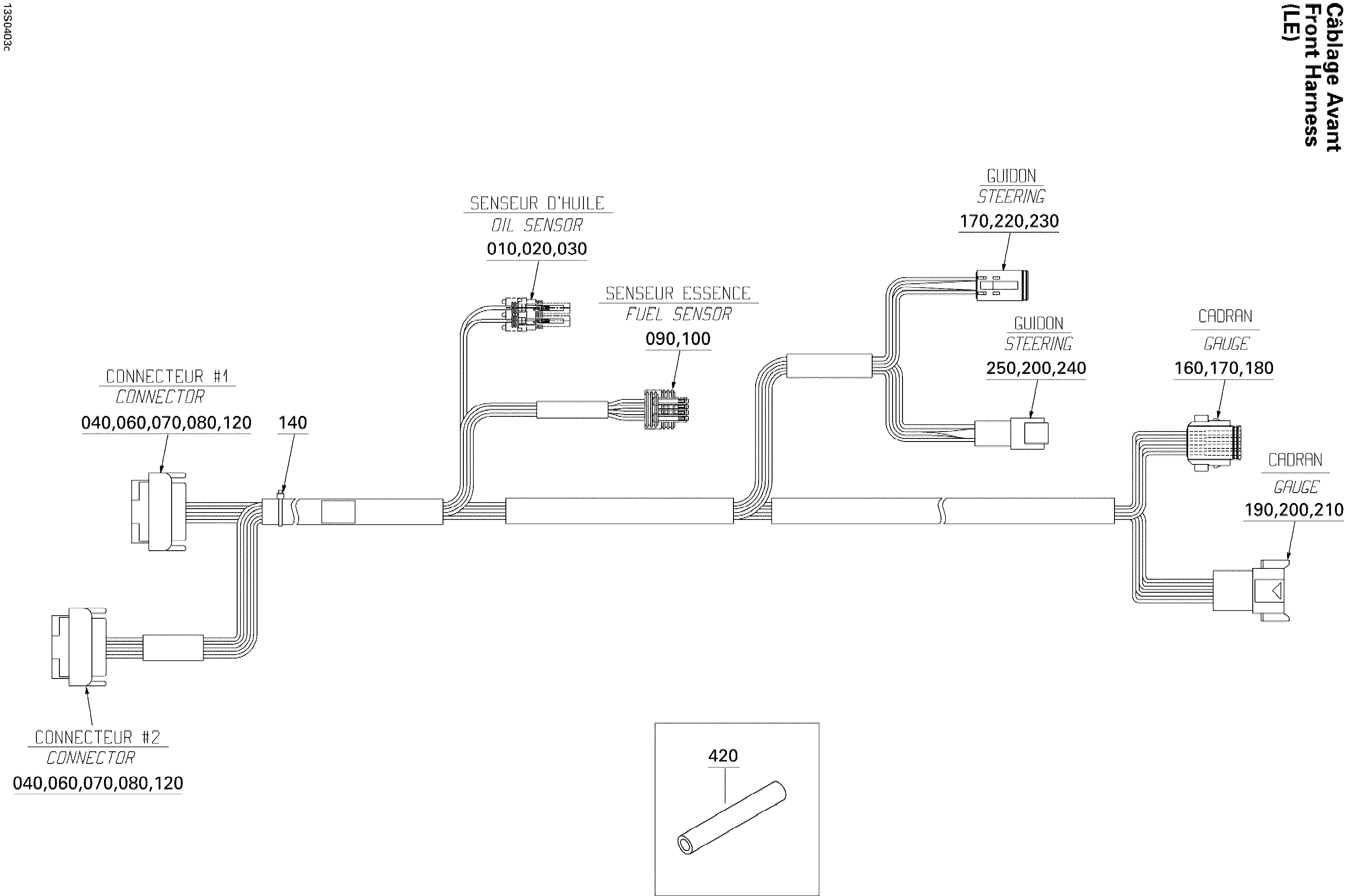

10- Front Harness (LE) для BRP GTI LE RFI - 2004
-
№АртикулНазвание
-
10278001805 Front Harness. Includes 10 a 420Front Harness. Includes 10 a 420
-
10278000218 SealSeal
-
20278000223 Female TerminalFemale Terminal
-
30278000220 Male Connector (2 Circuits)Male Connector (2 Circuits)
-
40293000070 Sealing PlugSealing Plug
-
50278001062 Male Connector (26 Circuits)Male Connector (26 Circuits)
-
60278000995 Female TerminalFemale Terminal
-
70278000994 Female TerminalFemale Terminal
-
80278000996 SealSeal
-
90278001308 Male Connector (4 Circuits)Male Connector (4 Circuits)
-
100278001114 Female TerminalFemale Terminal
-
110293750002 Tie Rap 130 mmTie Rap 130 mm
-
120278000993 Male Connector (26 Circuits)Male Connector (26 Circuits)
-
160278001744 Secondary Lock (8 Circuits)Secondary Lock (8 Circuits)
-
170278000632 Female TerminalFemale Terminal
-
180278001743 Male Housing (8 Circuits)Male Housing (8 Circuits)
-
190278001742 Female Housing (8 Circuits)Female Housing (8 Circuits)
-
200278000631 Male TerminalMale Terminal
-
210515175276 Secondary Lock (8 Circuits)Secondary Lock (8 Circuits)
-
220278000738 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
230278000739 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
240278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
250270000137 Female Connector (6 Circuits)Female Connector (6 Circuits)
-
420293100012 Housing 9 mm (Meter)Housing 9 mm (Meter)
-
420515175830 Vinyl Low Temp Housing 1/2'' (Meter)Vinyl Low Temp Housing 1/2'' (Meter)
-
420293100011 Vinyl Housing 1'' (Meter)Vinyl Housing 1'' (Meter)
-
420512059668 Thermoretractable TubingThermoretractable Tubing
