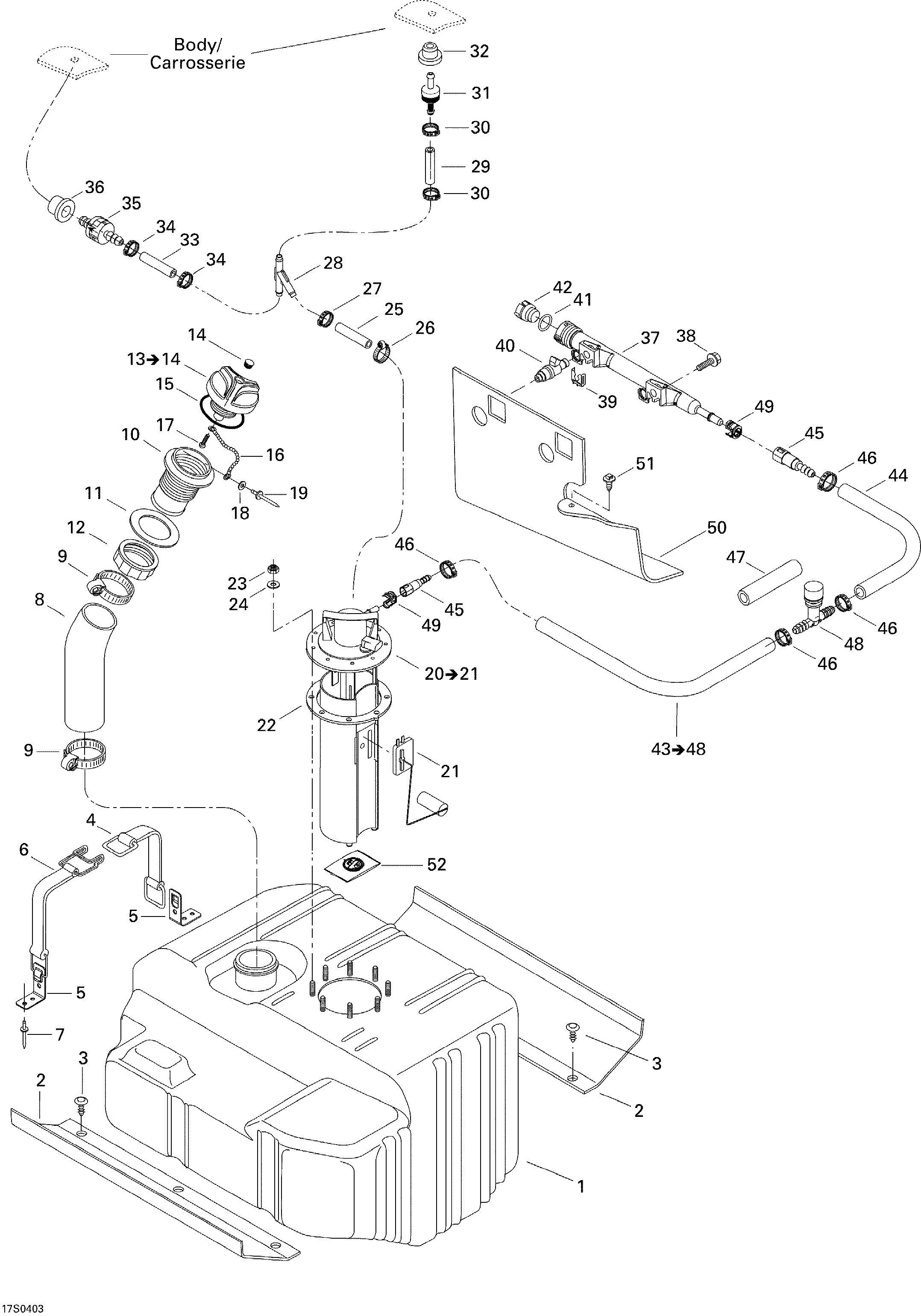

02- Fuel System для BRP GTI LE RFI - 2004
-
№АртикулНазвание
-
1275500427 Fuel TankFuel Tank
-
2293830077 Rubber PadRubber Pad
-
3293730006 Dart (Black)Dart (Black)
-
4293850036 StrapStrap
-
5293850076 Strap ClipStrap Clip
-
6293850038 Fuel Tank StrapFuel Tank Strap
-
7293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
8275500434 Filler Neck HoseFiller Neck Hose
-
9293650023 Tridon ClampTridon Clamp
-
10275500231 Filler NeckFiller Neck
-
11293250029 GasketGasket
-
12211100012 Fuel Filler Neck NutFuel Filler Neck Nut
-
13275500430 Fuel Tank Cap Ass'Y. Includes Items 13 to 14Fuel Tank Cap Ass'Y. Includes Items 13 to 14
-
14293000034 Snap Cap (Black)Snap Cap (Black)
-
15293250075 GasketGasket
-
16275500518 chainechaine
-
17241140060 Screw K40 X 10Screw K40 X 10
-
18234032600 Flat Washer 3 mmFlat Washer 3 mm
-
19390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
20270600089 Fuel Pump Module. Includes Items 20 to 21Fuel Pump Module. Includes Items 20 to 21
-
21270600012 Sensor LevelSensor Level
-
22293250088 GasketGasket
-
23232551200 Elastic Stop Nut M5Elastic Stop Nut M5
-
24234052400 Flat Washer 5 mmFlat Washer 5 mm
-
25275500549 Hose 1/4'' (Meter)Hose 1/4'' (Meter)
-
26293650170 Tridon ClampTridon Clamp
-
27293650050 ClampClamp
-
28293710059 Y-FittingY-Fitting
-
29275500549 Hose 1/4'' (Meter)Hose 1/4'' (Meter)
-
30293650050 ClampClamp
-
31275500398 Check ValveCheck Valve
-
32293720029 GrommetGrommet
-
33275500549 Hose 1/4'' (Meter)Hose 1/4'' (Meter)
-
34293650050 ClampClamp
-
35275500505 Check ValveCheck Valve
-
36293720029 GrommetGrommet
-
37270600007 Fuel Rail AssyFuel Rail Assy
-
38207562560 Hex Flanged Screw M6 X 25 (Scotch Grip)Hex Flanged Screw M6 X 25 (Scotch Grip)
-
39270600094 CirclipCirclip
-
40270600095 InjectorInjector
-
41293300042 O-RingO-Ring
-
42270600009 CapCap
-
43275500625 Hose Assy. Includes Items 43 to 48Hose Assy. Includes Items 43 to 48
-
44275500626 Hose 5/16''Hose 5/16''
-
45275500428 Connector BoxConnector Box
-
46293650011 Oetiker ClampOetiker Clamp
-
47276000132 Shrink TubingShrink Tubing
-
48293710104 Bleed ValveBleed Valve
-
49275500429 Connector StopperConnector Stopper
-
50275500441 Rail ProtectorRail Protector
-
51293730018 Mount DartMount Dart
-
52219700368 Lower FilterLower Filter
