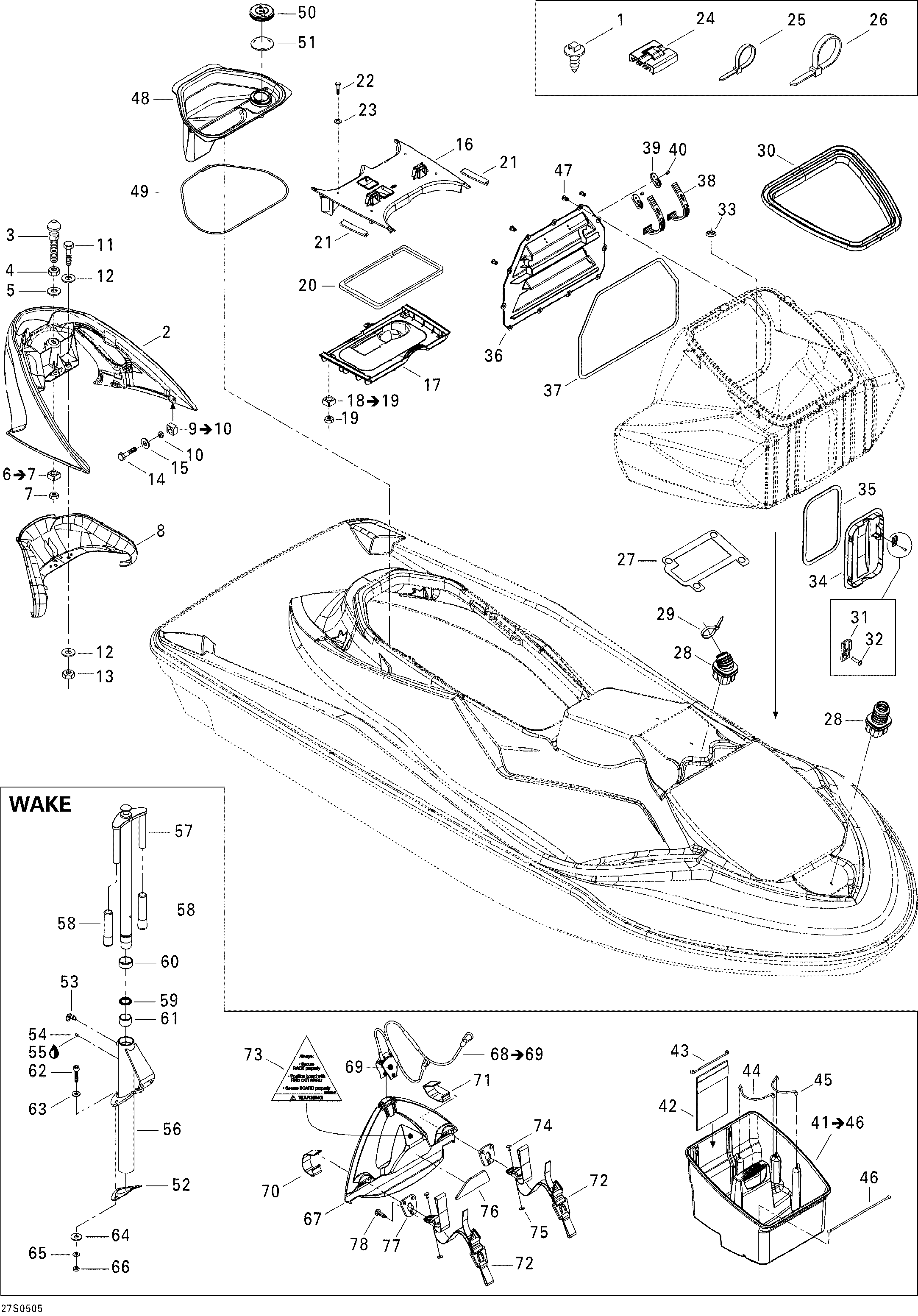

09- Body, Front View STD для BRP GTX 4-TEC, STD - 2005
-
№АртикулНазвание
-
1293730018 Mount DartMount Dart
-
2269000722 Grab Handle, BlackGrab Handle, Black
-
3291000945 Seat StudSeat Stud
-
4232100600 Hex Jam Nut M10Hex Jam Nut M10
-
5234002600 Flat Washer 10 mmFlat Washer 10 mm
-
6271000598 Nut Housing Ass'y. Includes 6 to 7Nut Housing Ass'y. Includes 6 to 7
-
7232501600 Hex Elastic Nut M10Hex Elastic Nut M10
-
8269000749 Handle Cover, BlackHandle Cover, Black
-
9269500725 Nut Housing Ass'y. Includes 9 to 10Nut Housing Ass'y. Includes 9 to 10
-
10232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
11207084560 Hex Screw M8 X 45Hex Screw M8 X 45
-
12234081600 Flat Washer 8 mmFlat Washer 8 mm
-
13232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
14207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
15234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
16291002136 Upper Bridge, BlackUpper Bridge, Black
-
17291002138 Lower Bridge, BlackLower Bridge, Black
-
18269501166 Nut Housing Ass'y. Includes 18 to 19Nut Housing Ass'y. Includes 18 to 19
-
19232561200 Elastic Stop Nut M6Elastic Stop Nut M6
-
20293200090 GasketGasket
-
21293250008 GasketGasket
-
22207167560 Hex Screw M6 X 75Hex Screw M6 X 75
-
23234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
24293750025 Tie-Rap MountTie-Rap Mount
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
27293250068 GasketGasket
-
28293720042 GrommetGrommet
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30269501234 Cover TrimCover Trim
-
31270000141 ClipClip
-
32241642060 Flanged Screw K40 X 20Flanged Screw K40 X 20
-
33291000279 Plug, BlackPlug, Black
-
34291001744 Front DoorFront Door
-
35293250087 GasketGasket
-
36291001743 Rear DoorRear Door
-
37293250087 GasketGasket
-
38269500408 StrapStrap
-
39269500521 HookHook
-
40293150027 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
47293150089 Plastic RivetPlastic Rivet
-
48269501347 Rear TrayRear Tray
-
49293250150 GasketGasket
-
50269000788 CoverCover
-
51269000810 Cover SealCover Seal
