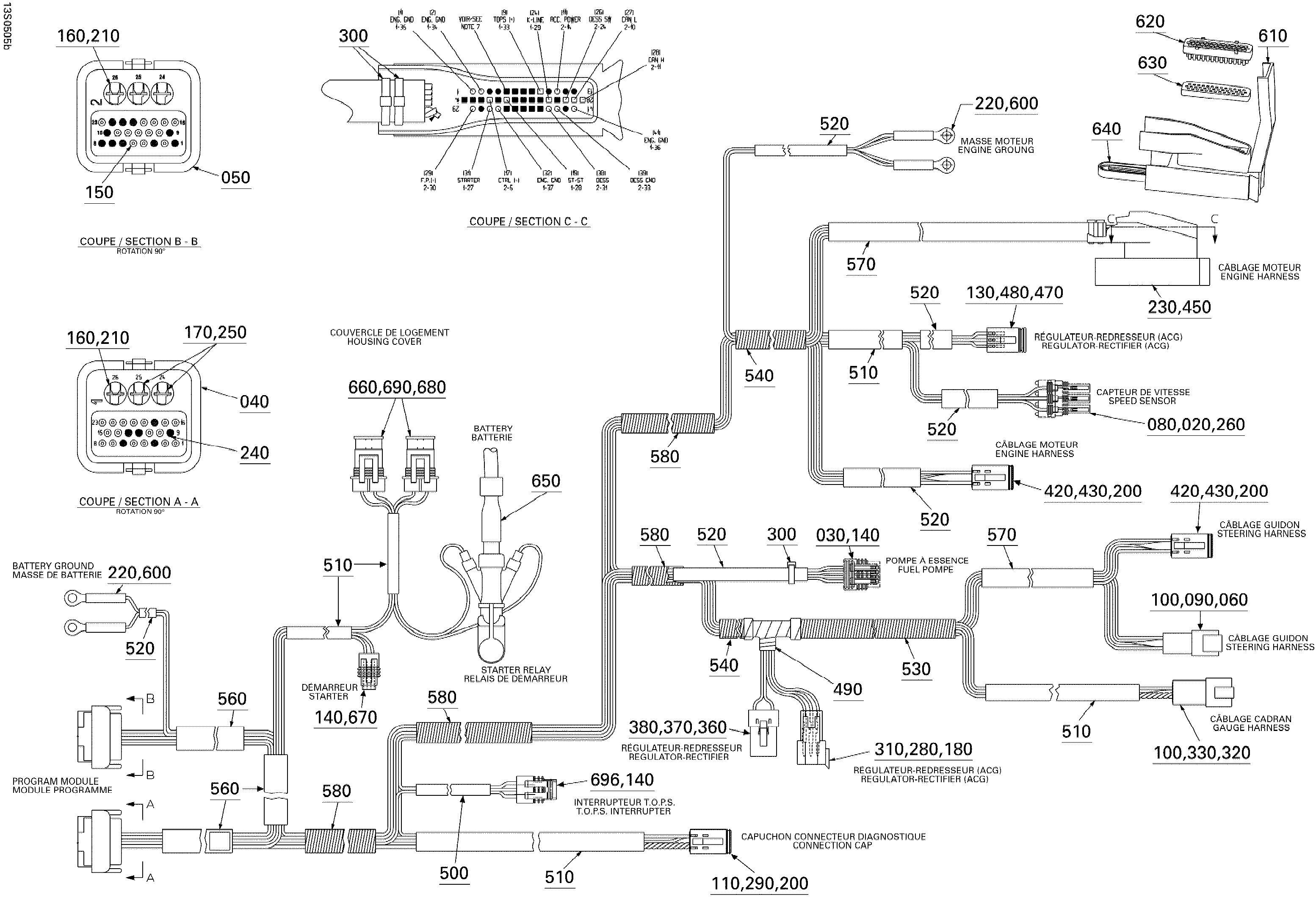

10- Electrical Harness 2 для BRP GTX 4-TEC, STD - 2005
-
№АртикулНазвание
-
001278002003 Main Harness Ass'y. Includes 1 to 696Main Harness Ass'y. Includes 1 to 696
-
020278000223 Female TerminalFemale Terminal
-
030278001308 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
040278000993 Male Connector, 26 CircuitsMale Connector, 26 Circuits
-
050278001062 Male Connector, 26 CircuitsMale Connector, 26 Circuits
-
060270000137 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
080278000273 Male Connector, 3 CircuitsMale Connector, 3 Circuits
-
090278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
100278000631 Male TerminalMale Terminal
-
110278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
130278001276 Female TerminalFemale Terminal
-
140278001114 Female TerminalFemale Terminal
-
150278000995 Female TerminalFemale Terminal
-
160278000994 Female TerminalFemale Terminal
-
170409011700 Female TerminalFemale Terminal
-
180515175823 Male TerminalMale Terminal
-
200278000632 Female TerminalFemale Terminal
-
210278000996 SealSeal
-
220278001661 Terminal RingTerminal Ring
-
230278001751 Male Connector, 41 CircuitsMale Connector, 41 Circuits
-
240293000070 SealSeal
-
250278001223 SealSeal
-
260278000218 Wire SealWire Seal
-
280409207600 Secondary Lock, 3 CircuitsSecondary Lock, 3 Circuits
-
290278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
300293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
310409207000 Female Connector, 3 CircuitsFemale Connector, 3 Circuits
-
320278000635 Female Connector, 4 CircuitsFemale Connector, 4 Circuits
-
330278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
360278001673 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
370278001671 Secondary Lock, 2 CircuitsSecondary Lock, 2 Circuits
-
380515175260 Female TerminalFemale Terminal
-
420278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
430278000738 Secondary Lock, 4 CircuitsSecondary Lock, 4 Circuits
-
460278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
470409207400 Male Connector, 3 CircuitsMale Connector, 3 Circuits
-
480409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
650278002058 Battery CableBattery Cable
-
660410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
670278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
680278001325 Fuse HolderFuse Holder
-
690710000357 Female TerminalFemale Terminal
-
696278002064 Connector, 3 CircuitsConnector, 3 Circuits
