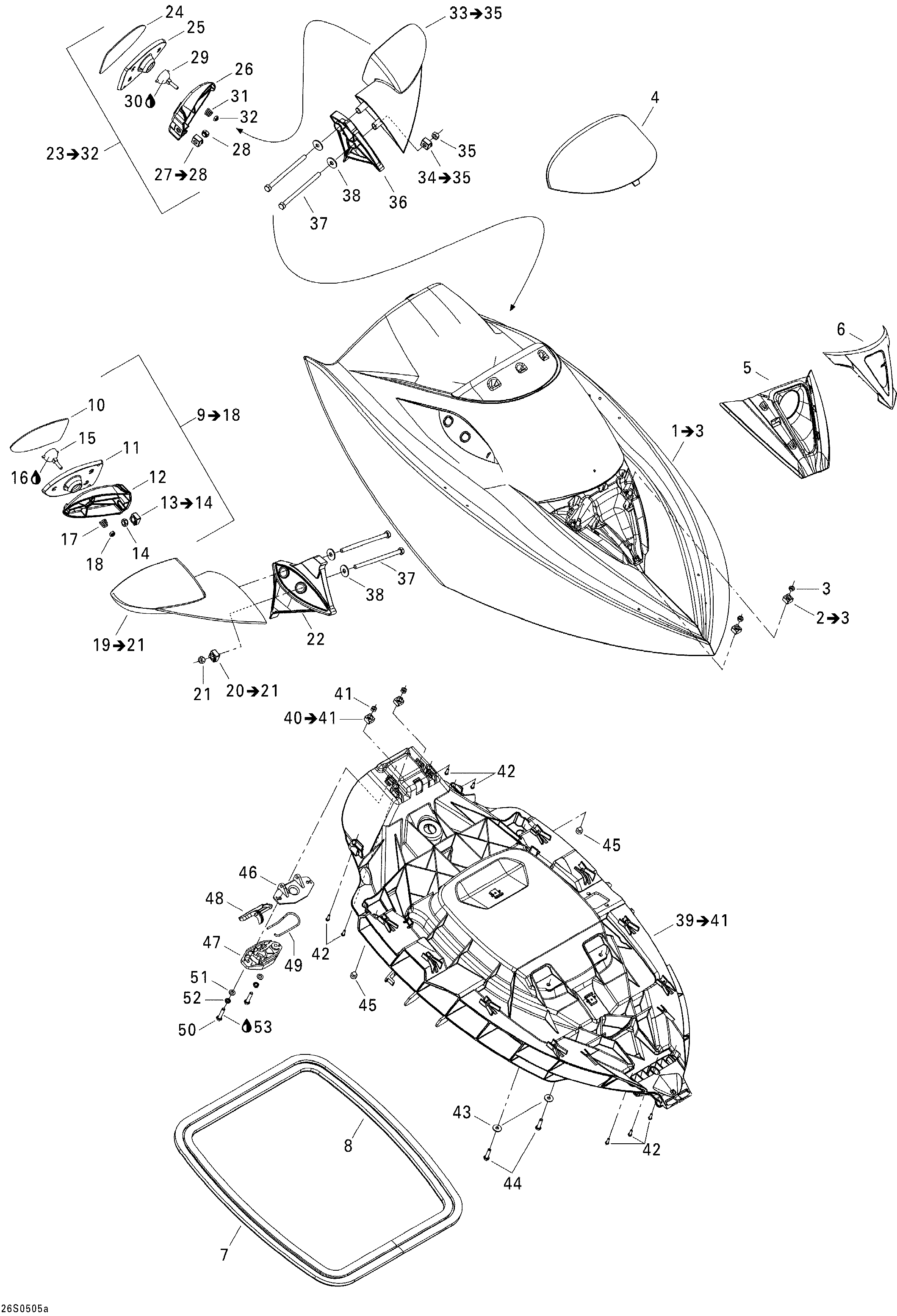

09- Front Storage Compartment 1 STD для BRP GTX 4-TEC, STD - 2005
-
№АртикулНазвание
-
1269501266 Upper Storage Cover, Pearl Blue. STD, Includes 1 to 3Upper Storage Cover, Pearl Blue. STD, Includes 1 to 3
-
2269500252 Nut Housing Ass'y M6. Includes 2 to 3Nut Housing Ass'y M6. Includes 2 to 3
-
3232061600 Hex Nut M6Hex Nut M6
-
4269501189 DeflectorDeflector
-
5269500994 Lower GrillLower Grill
-
6269500942 Upper GrillUpper Grill
-
7293200093 Neoprene SealNeoprene Seal
-
8293200093 Neoprene SealNeoprene Seal
-
9269501328 RH Mirror Ass'y. STD, Includes 9 to 18RH Mirror Ass'y. STD, Includes 9 to 18
-
11269501330 Mirror Frame. STDMirror Frame. STD
-
12269501331 Housing Support. STDHousing Support. STD
-
13269501332 Nut Housing Ass'y. STD, Includes 13 to 14Nut Housing Ass'y. STD, Includes 13 to 14
-
15269501333 Miroir Ball Joint. STDMiroir Ball Joint. STD
-
16293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
17269501334 Mirror Spring. STDMirror Spring. STD
-
18232561600 Elastic Stop Nut M6. STDElastic Stop Nut M6. STD
-
19269501326 RH Mirror Shell, Pearl Blue. STD, Includes 19 to 21RH Mirror Shell, Pearl Blue. STD, Includes 19 to 21
-
20269501387 Nut Housing Ass'y. Includes 20 to 21Nut Housing Ass'y. Includes 20 to 21
-
22269500950 RH SpacerRH Spacer
-
23269501337 LH Mirror Ass'y. STD, Includes 23 to 32LH Mirror Ass'y. STD, Includes 23 to 32
-
24269501338 LH Mirror. STDLH Mirror. STD
-
25269501330 Mirror Frame. STDMirror Frame. STD
-
26269501331 Housing Support. STDHousing Support. STD
-
27269501332 Nut Housing Ass'y. STD, Includes 27 to 28Nut Housing Ass'y. STD, Includes 27 to 28
-
29269501333 Miroir Ball Joint. STDMiroir Ball Joint. STD
-
30293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
31269501334 Mirror Spring. STDMirror Spring. STD
-
32232561600 Elastic Stop Nut M6. STDElastic Stop Nut M6. STD
-
33269501344 LH Mirror Shell, Pearl Blue. STD, Includes 33 to 35LH Mirror Shell, Pearl Blue. STD, Includes 33 to 35
-
34269501387 Nut Housing Ass'y. Includes 34 to 35Nut Housing Ass'y. Includes 34 to 35
-
36269500951 LH SpacerLH Spacer
-
37230082060 Hex Screw M8 X 120Hex Screw M8 X 120
-
38234082600 Flat Washer 8 mmFlat Washer 8 mm
-
39269501413 Lower Storage Cover Ass'y. Includes 39 to 41Lower Storage Cover Ass'y. Includes 39 to 41
-
40269500252 Nut Housing Ass'y M6. Includes 40 to 41Nut Housing Ass'y M6. Includes 40 to 41
-
41232061600 Hex Nut M6Hex Nut M6
-
42241141360 Hex Flanged Screw K40 X 13Hex Flanged Screw K40 X 13
-
43234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
44207362560 Hex Screw M6 X 25 With ThreadlockerHex Screw M6 X 25 With Threadlocker
-
45293830005 Rubber PlugRubber Plug
-
46269700076 Latch CoverLatch Cover
-
47269000015 Latch BaseLatch Base
-
48269700077 Latch LeverLatch Lever
-
49269700017 Latch SpringLatch Spring
-
50207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
51234061600 Flat Washer 6 mmFlat Washer 6 mm
-
52234161601 Lock Washer 6 mmLock Washer 6 mm
-
53293800060 Loctite 243, 10 mlLoctite 243, 10 ml
