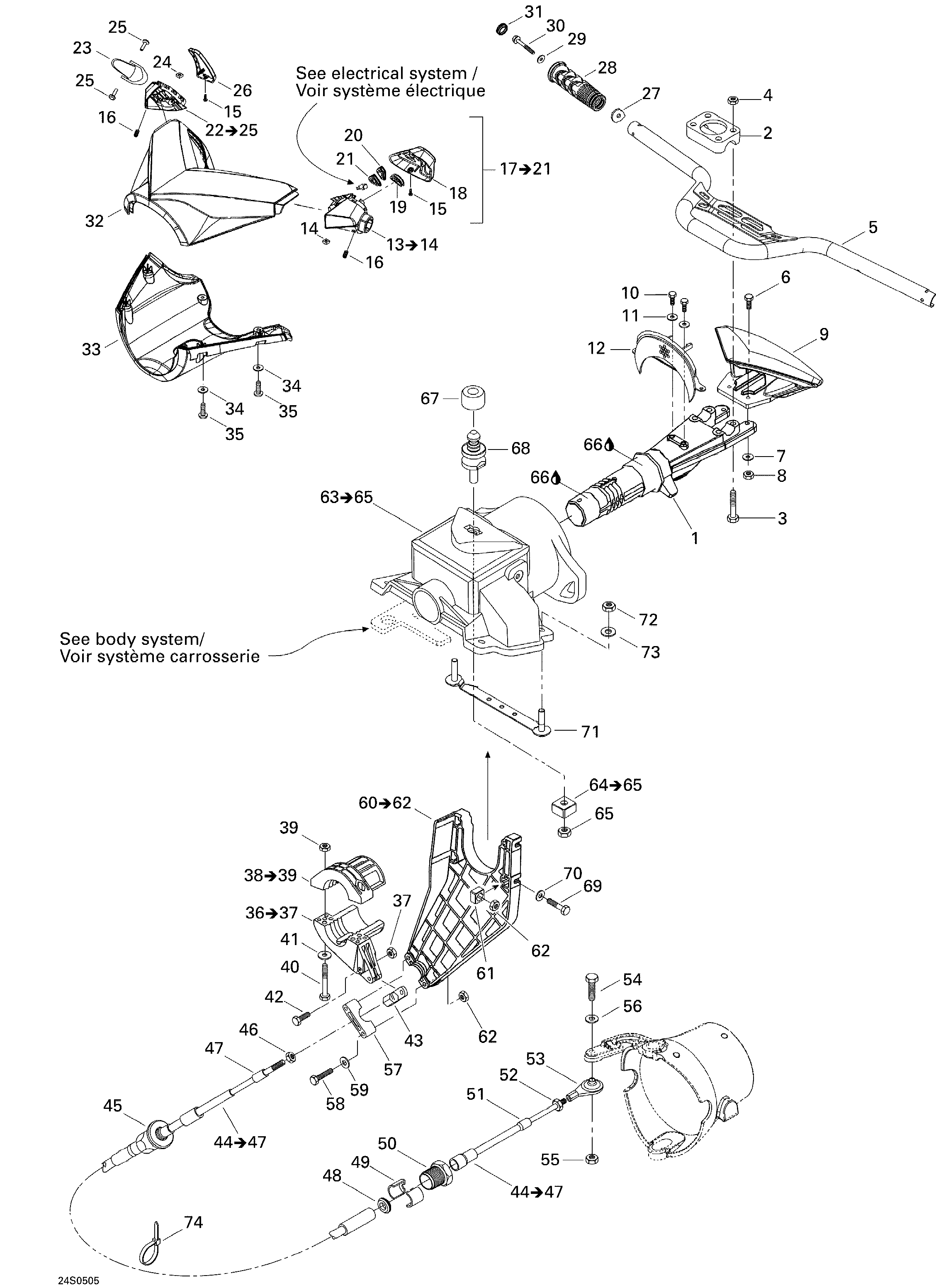

07- Steering System WAKE для BRP GTX 4-TEC, WAKE - 2005
-
№АртикулНазвание
-
1277000562400 Steering StemSteering Stem
-
2277000142 Steering ClampSteering Clamp
-
3207085060 Hex Screw M8 X 50Hex Screw M8 X 50
-
4232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
5277001454 Handle BarHandle Bar
-
6207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
7234061600 Flat Washer 6 mmFlat Washer 6 mm
-
8232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
9277001361 Handle Pad, Metallic Silver. WAKEHandle Pad, Metallic Silver. WAKE
-
10211000036 Hex Flanged Screw 1/4''-20 X 1/2''Hex Flanged Screw 1/4''-20 X 1/2''
-
11234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
12277000549 PlatePlate
-
13277000954 Housing Ass'Y. Includes 13 to 14Housing Ass'Y. Includes 13 to 14
-
14232860600 Square Nut M6Square Nut M6
-
15209630960 Phillips Screw M3.9 X 9.5Phillips Screw M3.9 X 9.5
-
16250000036 Socket Head Screw M6Socket Head Screw M6
-
17277001351 LH Housing Cover Ass'y. WAKE, Includes 17 to 21LH Housing Cover Ass'y. WAKE, Includes 17 to 21
-
19278001713 Stop KnobStop Knob
-
20278001714 Mode KnobMode Knob
-
21278001715 Set KnobSet Knob
-
22277000995 Throttle Housing Ass'Y. Includes 22 to 25Throttle Housing Ass'Y. Includes 22 to 25
-
23277001107 Throttle HandleThrottle Handle
-
24232860600 Square Nut M6Square Nut M6
-
25277000381 PinPin
-
26277001355 Housing Cover. WAKEHousing Cover. WAKE
-
27277000554 Handle Grip InsertHandle Grip Insert
-
28277001245 Handle Grip. WAKEHandle Grip. WAKE
-
29234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
30250000002 Hex Screw M6 X 30, Scotch GripHex Screw M6 X 30, Scotch Grip
-
31277000203 Grip CapGrip Cap
-
32277000952 Upper Steering Cover, BlackUpper Steering Cover, Black
-
33277001145 Lower Steering Cover, BlackLower Steering Cover, Black
-
34234051600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
35241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
36277000518 Steering Stem Arm. Includes 36 to 37Steering Stem Arm. Includes 36 to 37
-
37232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
38277000519 Arm Thrust. Includes 38 to 39Arm Thrust. Includes 38 to 39
-
39232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
40207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
41234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
42211000081 Hex Screw M6 X 30Hex Screw M6 X 30
-
43277001180 Ball JointBall Joint
-
44277001326 Steering Cable. Includes 44 to 47Steering Cable. Includes 44 to 47
-
45277000782 Ajustment KnobAjustment Knob
-
46211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
47277000441 Terminal WiperTerminal Wiper
-
48293830063 Rubber WasherRubber Washer
-
49277000783 Half-RingHalf-Ring
-
50277000784 Cable LockCable Lock
-
51277000441 Terminal WiperTerminal Wiper
-
52211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
53277000775 Ball JointBall Joint
-
54207063560 Hex Screw M6 X 35Hex Screw M6 X 35
-
55232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
56234061600 Flat Washer 6 mmFlat Washer 6 mm
-
57277000162 Support ThrustSupport Thrust
-
58207065060 Hex Screw M6 X 50Hex Screw M6 X 50
-
59234061600 Flat Washer 6 mmFlat Washer 6 mm
-
60277000516 Cable Support. Includes 60 to 62Cable Support. Includes 60 to 62
-
61269500252 Nut Housing Ass'y M6Nut Housing Ass'y M6
-
62232061600 Hex Nut M6Hex Nut M6
-
63277000515 Steering Support. Includes 63 to 65Steering Support. Includes 63 to 65
-
64271000598 Nut Housing Ass'y. Includes 64 to 65Nut Housing Ass'y. Includes 64 to 65
-
65232501600 Hex Elastic Nut M10Hex Elastic Nut M10
-
66293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
67293830078 Rubber PadRubber Pad
-
68291002147 Latch StudLatch Stud
-
69207162060 Hex Screw M6 X 20Hex Screw M6 X 20
-
70234061600 Flat Washer 6 mmFlat Washer 6 mm
-
71277001072 Steering SupportSteering Support
-
72232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
73234081600 Flat Washer 8 mmFlat Washer 8 mm
-
74293750008 Tie-Rap 350 mmTie-Rap 350 mm
