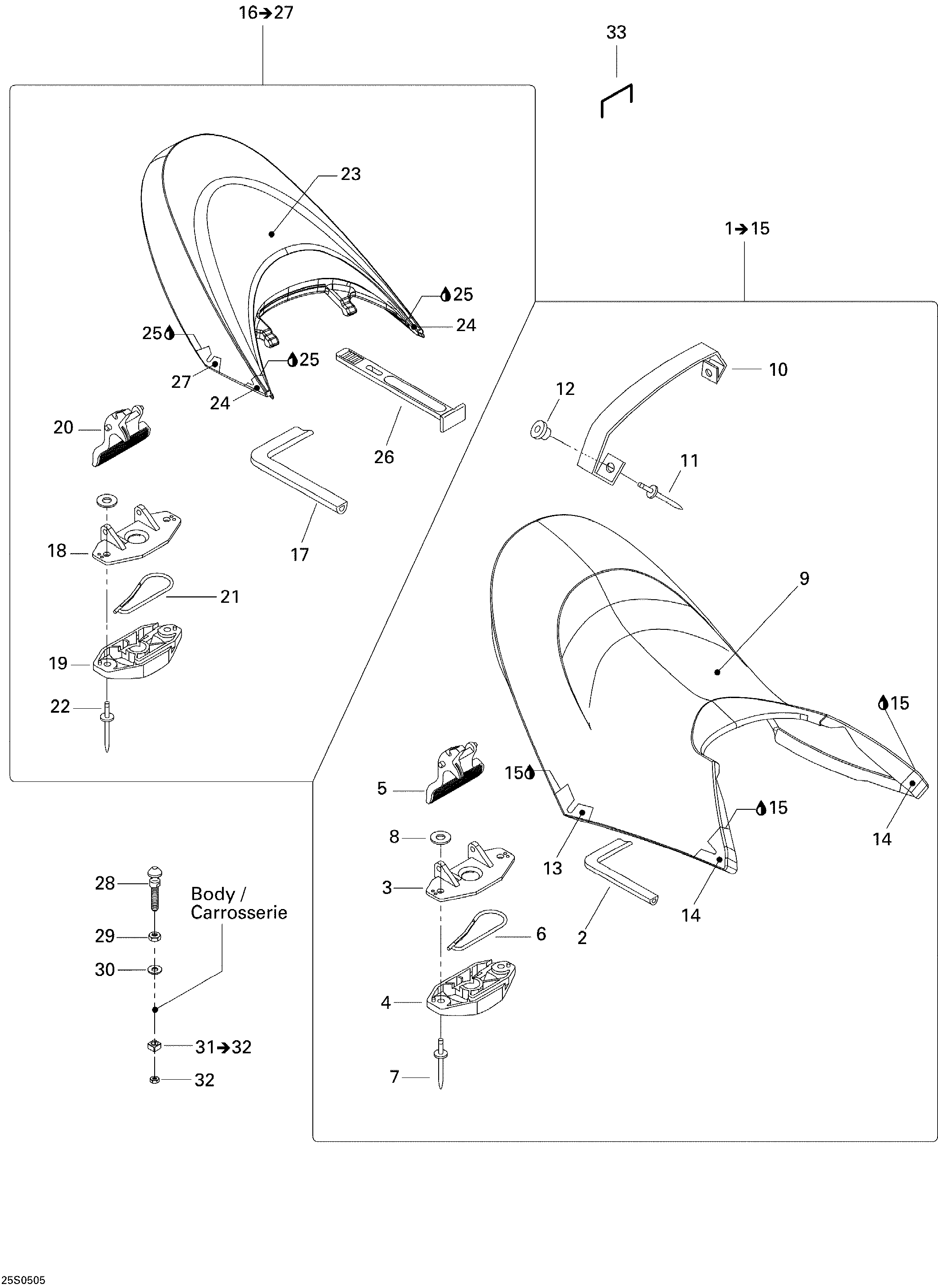

09- Seat WAKE для BRP GTX 4-TEC, WAKE - 2005
-
№АртикулНазвание
-
1269001245 Front Seat Ass'y, Silver. WAKE, Includes 1 to 15Front Seat Ass'y, Silver. WAKE, Includes 1 to 15
-
2293200062 Seal (Meter)Seal (Meter)
-
3269700076 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269700077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
8234061600 Flat Washer 6 mmFlat Washer 6 mm
-
9269001051 Front Seat Cover & Foam, Silver. WAKEFront Seat Cover & Foam, Silver. WAKE
-
10269001081 Seat Strap, Silver. WAKESeat Strap, Silver. WAKE
-
11293150078 Pop RivetPop Rivet
-
12293720067 GrommetGrommet
-
13269001082 RH Seat Corner, Silver. WAKERH Seat Corner, Silver. WAKE
-
13269001083 LH Seat Corner, Silver. WAKELH Seat Corner, Silver. WAKE
-
14269001084 RH Front Seat Corner, Silver. WAKERH Front Seat Corner, Silver. WAKE
-
14269001085 LH Front Seat Corner, Silver. WAKELH Front Seat Corner, Silver. WAKE
-
15413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
16269001243 Rear Seat Ass'y, Silver. WAKE, Includes 16 to 27Rear Seat Ass'y, Silver. WAKE, Includes 16 to 27
-
17293200062 Seal (Meter)Seal (Meter)
-
18269700076 Latch CoverLatch Cover
-
19269000015 Latch BaseLatch Base
-
20269700077 Latch LeverLatch Lever
-
21269700017 Latch SpringLatch Spring
-
22293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
23269001060 Rear Seat Cover & Foam, Silver. WAKERear Seat Cover & Foam, Silver. WAKE
-
24269001086 RH Seat Corner, Silver. WAKERH Seat Corner, Silver. WAKE
-
24269001087 LH Seat Corner, Silver. WAKELH Seat Corner, Silver. WAKE
-
25413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
26269500408 StrapStrap
-
27269001088 Seat Corner, Silver. WAKESeat Corner, Silver. WAKE
-
28291000945 Seat StudSeat Stud
-
29232100600 Hex Jam Nut M10Hex Jam Nut M10
-
30234002600 Flat Washer 10 mmFlat Washer 10 mm
-
31271000598 Nut Housing Ass'y. Includes 31 to 32Nut Housing Ass'y. Includes 31 to 32
-
32232501600 Hex Elastic Nut M10Hex Elastic Nut M10
-
33293730005 StapleStaple
