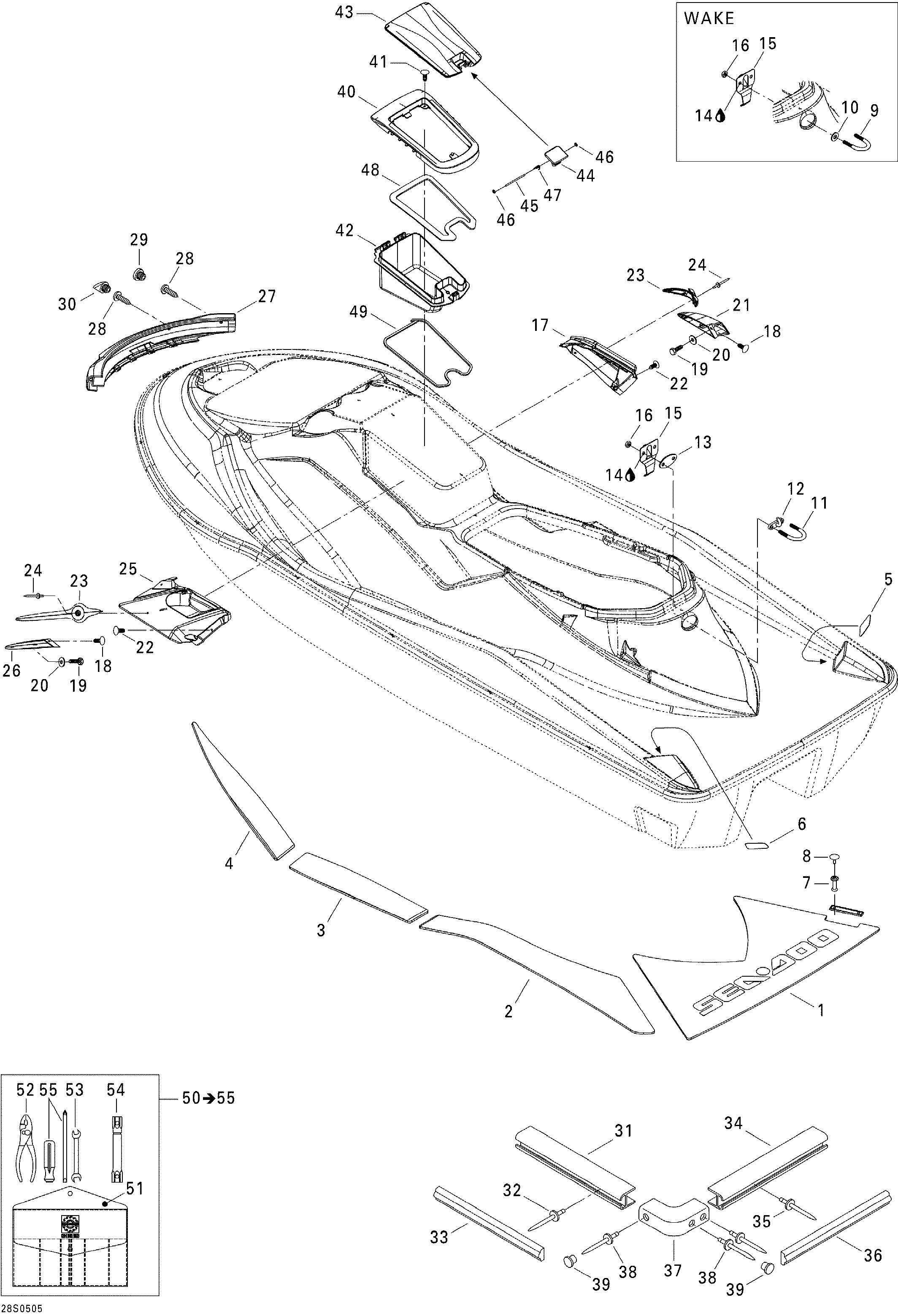

09- Body, Rear View WAKE для BRP GTX 4-TEC, WAKE - 2005
-
№АртикулНазвание
-
1291002140 Rear CarpetRear Carpet
-
2291002162 RH Center Rear CarpetRH Center Rear Carpet
-
2291002164 LH Center Rear CarpetLH Center Rear Carpet
-
3291002166 RH Center Front CarpetRH Center Front Carpet
-
3291002168 LH Center Front CarpetLH Center Front Carpet
-
4291002170 RH Front CarpetRH Front Carpet
-
4291002172 LH Front CarpetLH Front Carpet
-
5291001758 RH Anti-SkidRH Anti-Skid
-
6291001759 LH Anti-SkidLH Anti-Skid
-
7293150016 Pop Rivet 1/8''Pop Rivet 1/8''
-
8293000014 Snap CapSnap Cap
-
9292000933 U-Clamp. WAKEU-Clamp. WAKE
-
10293050001 Flat Washer. WAKEFlat Washer. WAKE
-
14296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
15291001747 Retainer PlateRetainer Plate
-
16232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
17269500931 RH Grill, BlackRH Grill, Black
-
18293730010 Dart, BlackDart, Black
-
19241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
20234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
21293450223 RH InsertRH Insert
-
22293730006 Dart, BlackDart, Black
-
23269500716 Finition PlateFinition Plate
-
24293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
25269500932 LH Grill, BlackLH Grill, Black
-
26293450224 LH InsertLH Insert
-
27291001942 Bumper Nose, BlackBumper Nose, Black
-
28250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
29291001519 Bumper Plug, BlackBumper Plug, Black
-
30291001040 Bumper Plug, BlackBumper Plug, Black
-
31291001609 Side Bumper, BlackSide Bumper, Black
-
32293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
33291001897 Side Bumper Trim, Viper Red. WAKESide Bumper Trim, Viper Red. WAKE
-
34291001483 Rear Bumper, BlackRear Bumper, Black
-
35293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
36291001484 Rear Bumper Trim, Viper Red. WAKERear Bumper Trim, Viper Red. WAKE
-
37291001505 Bumper Corner, BlackBumper Corner, Black
-
38293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
39291000339 Bumper PlugBumper Plug
-
40269501031 Cover Trim, BlackCover Trim, Black
-
41293730006 Dart, BlackDart, Black
-
42269500968 Glove BoxGlove Box
-
43269501135 Gloves Box DoorsGloves Box Doors
-
44269500553 Latch, BlackLatch, Black
-
45211400008 PinPin
-
46211100002 Push NutPush Nut
-
47291000922 Spring LatchSpring Latch
-
48293250126 GasketGasket
-
49293250127 GasketGasket
-
50294000682 Tool Kit. Includes 50 to 55Tool Kit. Includes 50 to 55
-
53529017300 Fork WrenchFork Wrench
-
54529035731 Socket WrenchSocket Wrench
-
55529019200 Driver ScrewDriver Screw
