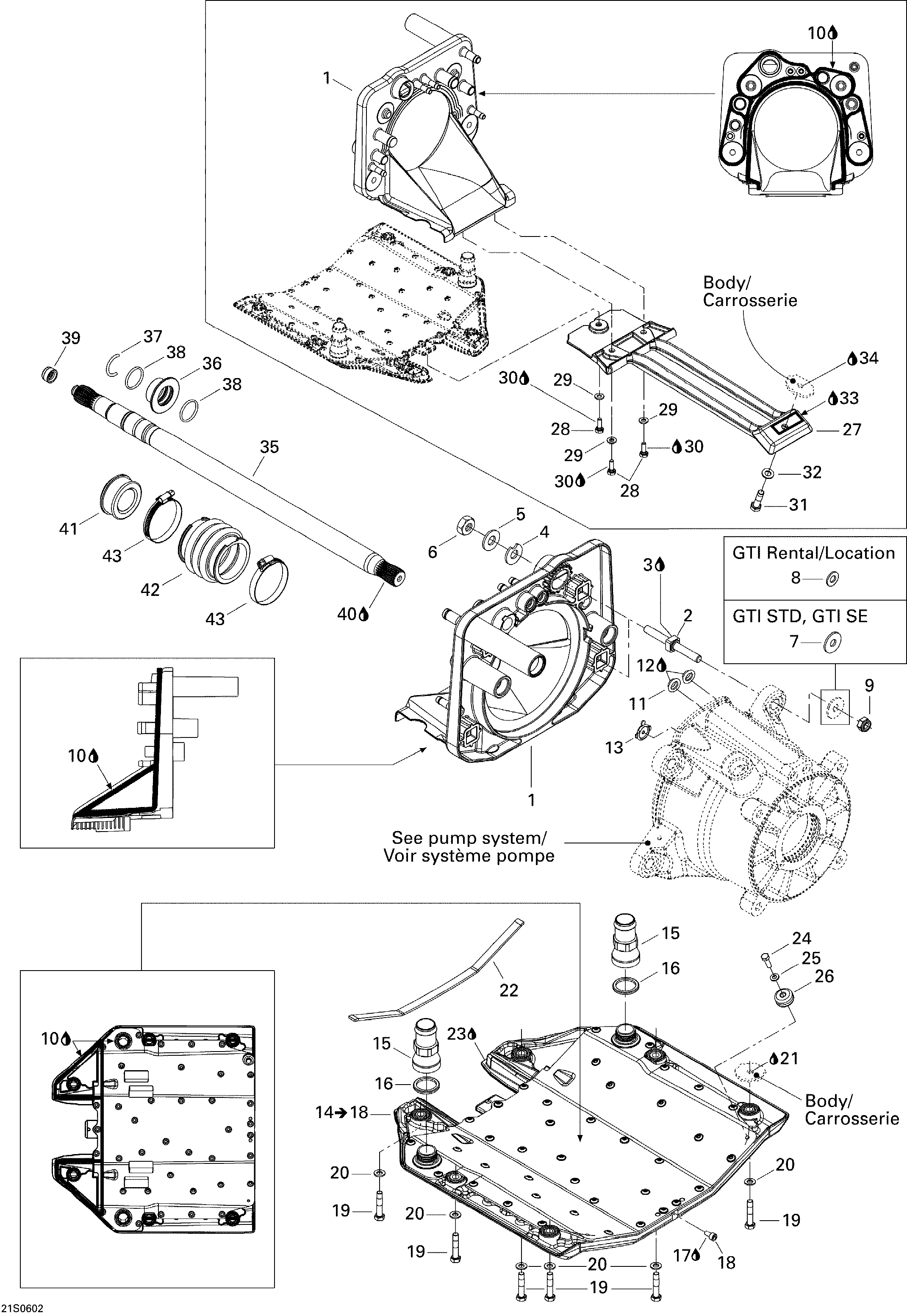

05- Propulsion GTI Rental для BRP GTI Rental - 2006
-
№АртикулНазвание
-
1271001545 Pump SupportPump Support
-
2250300022 Square StudSquare Stud
-
3293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
4272000053 ShimShim
-
5234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6232501200 Brass Elastic Stop Nut, M10Brass Elastic Stop Nut, M10
-
8234001600 Flat Washer 10 mm. GTI RentalFlat Washer 10 mm. GTI Rental
-
9232501200 Brass Elastic Stop Nut, M10Brass Elastic Stop Nut, M10
-
10293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
11293250084 Watertight SealWatertight Seal
-
12293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
13291001887 Reducer, YellowReducer, Yellow
-
14271001535 Riding Plate Ass'y. Includes 14 a 18Riding Plate Ass'y. Includes 14 a 18
-
15293710111 Straight Plastic FittingStraight Plastic Fitting
-
16293300121 O-ringO-ring
-
17293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
18250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
19250000230 Hex Screw, Scotch Grip M8 X 40Hex Screw, Scotch Grip M8 X 40
-
20234081600 Flat Washer 8 mmFlat Washer 8 mm
-
21296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
22293250087 GasketGasket
-
23293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
24207362060 Hex Screw M6 X 20, Scotch GripHex Screw M6 X 20, Scotch Grip
-
25234061600 Flat Washer 6 mmFlat Washer 6 mm
-
26271001487 Anode ZincAnode Zinc
-
27271001527 Pump Grate, BlackPump Grate, Black
-
28207161660 Hex Screw M6 X 16Hex Screw M6 X 16
-
29234061600 Flat Washer 6 mmFlat Washer 6 mm
-
30293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
31207383060 Hex Screw M8 X 30, Scotch GripHex Screw M8 X 30, Scotch Grip
-
32234081600 Flat Washer 8 mmFlat Washer 8 mm
-
33293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
34296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
35271001534 Drive ShaftDrive Shaft
-
36272000176 Support RingSupport Ring
-
37272000175 C-ClipC-Clip
-
38293300044 O-RingO-Ring
-
39272000173 Drive Shaft PlugDrive Shaft Plug
-
40293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
41272000177 Carbon RingCarbon Ring
-
42272000183 BellowBellow
-
43293650077 Norma ClampNorma Clamp
