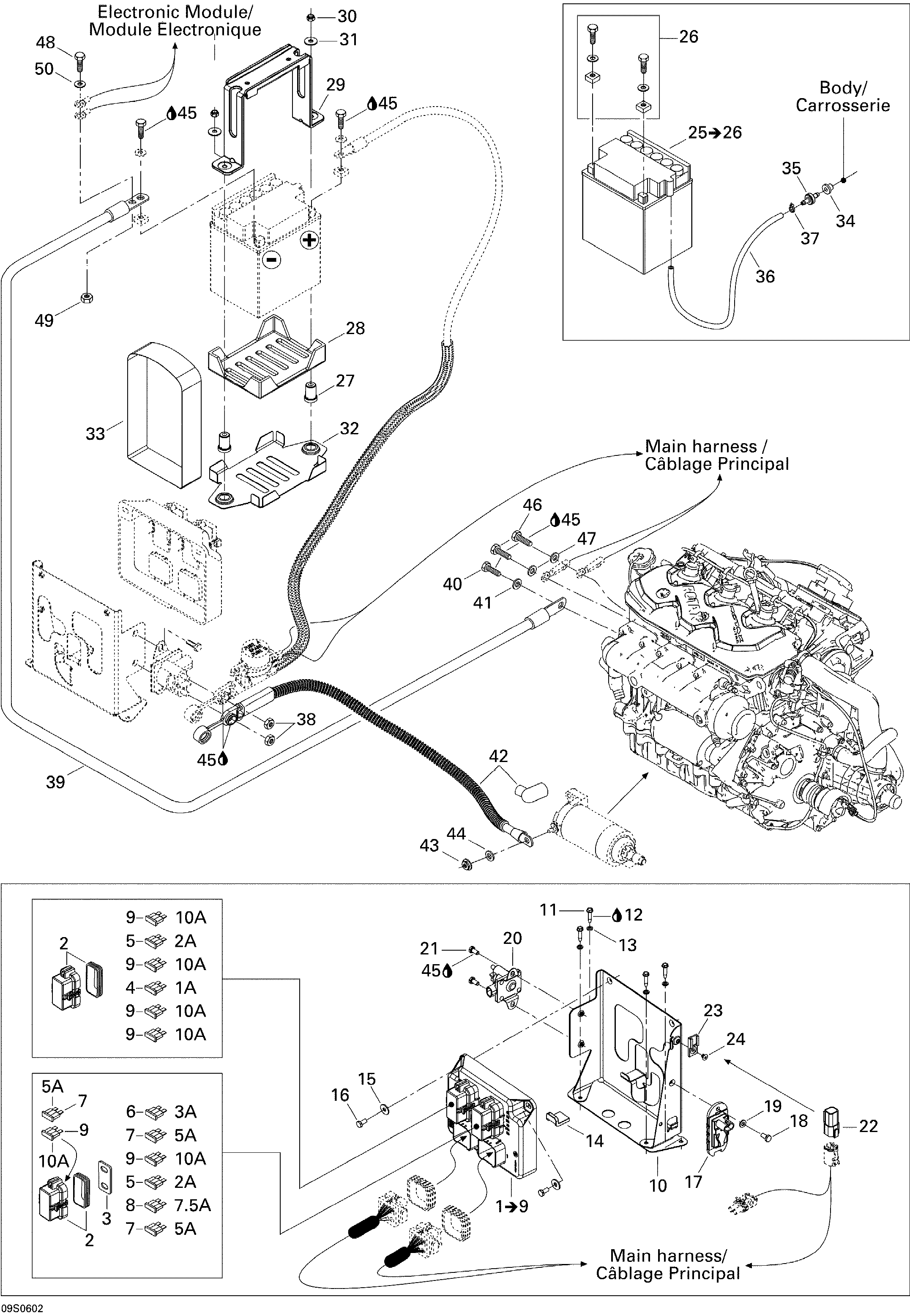

10- Electrical System GTI Rental для BRP GTI Rental - 2006
-
№АртикулНазвание
-
1278002043 Multi Purpose Electronic Module, Mpem. Includes 1 to 9, GTI RentalMulti Purpose Electronic Module, Mpem. Includes 1 to 9, GTI Rental
-
2278001618 Fuse CoverFuse Cover
-
3278001719 Fuse Holder FoamFuse Holder Foam
-
4409012800 Fuse, 1 AmpereFuse, 1 Ampere
-
5278001442 Fuse, 2 AmperesFuse, 2 Amperes
-
6278001196 Fuse, 3 AmperesFuse, 3 Amperes
-
7278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
8278000704 Fuse, 7.5 AmperesFuse, 7.5 Amperes
-
9278001197 Fuse, 10 AmperesFuse, 10 Amperes
-
10278002139 Module SupportModule Support
-
11211000023 Hex Flanged Plastite Screw #10 X 7/8''Hex Flanged Plastite Screw #10 X 7/8''
-
12293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
13211200043 Lock WasherLock Washer
-
14278001166 Module ProtectionModule Protection
-
15234062600 Flat Washer 6 mmFlat Washer 6 mm
-
16207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
17278001992 Interrupter T.o.p.s.Interrupter T.o.p.s.
-
18207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
19234061600 Flat Washer 6 mmFlat Washer 6 mm
-
20278001802 Starter RelayStarter Relay
-
21207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
22278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
23270000141 ClipClip
-
24204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
25278001882 Battery, 30 Amperes. Includes 25 to 26Battery, 30 Amperes. Includes 25 to 26
-
26295500849 Battery Fastener KitBattery Fastener Kit
-
27278001939 BushingBushing
-
28278001582 Lower Battery PadLower Battery Pad
-
29278001677 Battery SupportBattery Support
-
30232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
31234082600 Flat Washer 8 mmFlat Washer 8 mm
-
32278001966 Battery SupportBattery Support
-
33278001764 Battery Strap 337 mmBattery Strap 337 mm
-
34293720029 GrommetGrommet
-
35275500499 Check ValveCheck Valve
-
36275500446 Hose 6 mmHose 6 mm
-
37293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
38232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
39278001592 Battery Ground Cable Ass'yBattery Ground Cable Ass'y
-
40207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
41234061600 Flat Washer 6 mmFlat Washer 6 mm
-
42278002062 Starter CableStarter Cable
-
43232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
44234061600 Flat Washer 6 mmFlat Washer 6 mm
-
45293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
46207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
47234061600 Flat Washer 6 mmFlat Washer 6 mm
-
48207161260 Hex Screw M6 X 12Hex Screw M6 X 12
-
49232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
50234061600 Flat Washer 6 mmFlat Washer 6 mm
