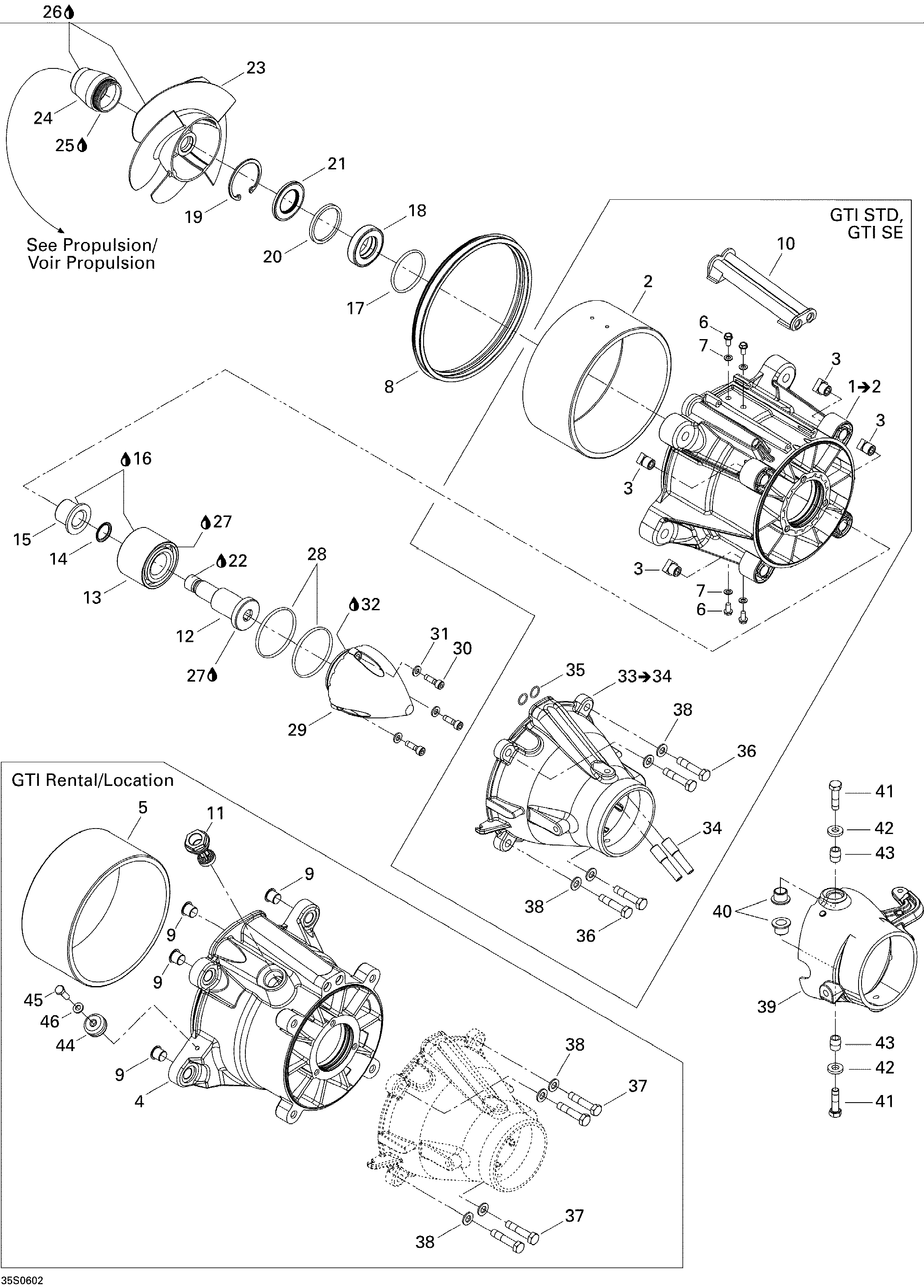

05- Pump GTI RENTAL для BRP GTI Rental - 2006
-
№АртикулНазвание
-
4267000084 Impeller Housing. GTI RentalImpeller Housing. GTI Rental
-
5267000309 Wear Ring. GTI RentalWear Ring. GTI Rental
-
8293200087 Neoprene SealNeoprene Seal
-
9267000093 Bushing. GTI RentalBushing. GTI Rental
-
11267000282 Plug. GTI RentalPlug. GTI Rental
-
12267000054 Impeller ShaftImpeller Shaft
-
13267000030 Angled BearingAngled Bearing
-
14505070315 O-RingO-Ring
-
15267000048 Shaft SleeveShaft Sleeve
-
16293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
17293300090 O-RingO-Ring
-
18293200086 Oil SealOil Seal
-
19293370038 CirclipCirclip
-
20271001393 SpacerSpacer
-
21293200089 Oil SealOil Seal
-
22293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
23271001512 Impeller, StainlessImpeller, Stainless
-
24267000206 Impeller BootImpeller Boot
-
25293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
26293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
27293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
28293300086 O-RingO-Ring
-
29267000262 Impeller CoverImpeller Cover
-
30205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
31234061600 Flat Washer 6 mmFlat Washer 6 mm
-
32293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
33267000289 VenturiVenturi
-
34271001133 Siphon TubeSiphon Tube
-
35293300013 O-RingO-Ring
-
37207384060 Hex Screw M8 X 40, Scotch Grip. GTI RentalHex Screw M8 X 40, Scotch Grip. GTI Rental
-
38234081600 Flat Washer 8 mmFlat Washer 8 mm
-
39267000140 Steering Nozzle, BlackSteering Nozzle, Black
-
40293900001 Venturi BushingVenturi Bushing
-
41207383060 Hex Screw M8 X 30, Scotch GripHex Screw M8 X 30, Scotch Grip
-
42293050001 Flat WasherFlat Washer
-
43271000122 Steering Nozzle SleeveSteering Nozzle Sleeve
-
44271001487 Anode Zinc. GTI RentalAnode Zinc. GTI Rental
-
45207362060 Hex Screw M6 X 20, Scotch Grip. GTI RentalHex Screw M6 X 20, Scotch Grip. GTI Rental
-
46234061600 Flat Washer 6 mm. GTI RentalFlat Washer 6 mm. GTI Rental
