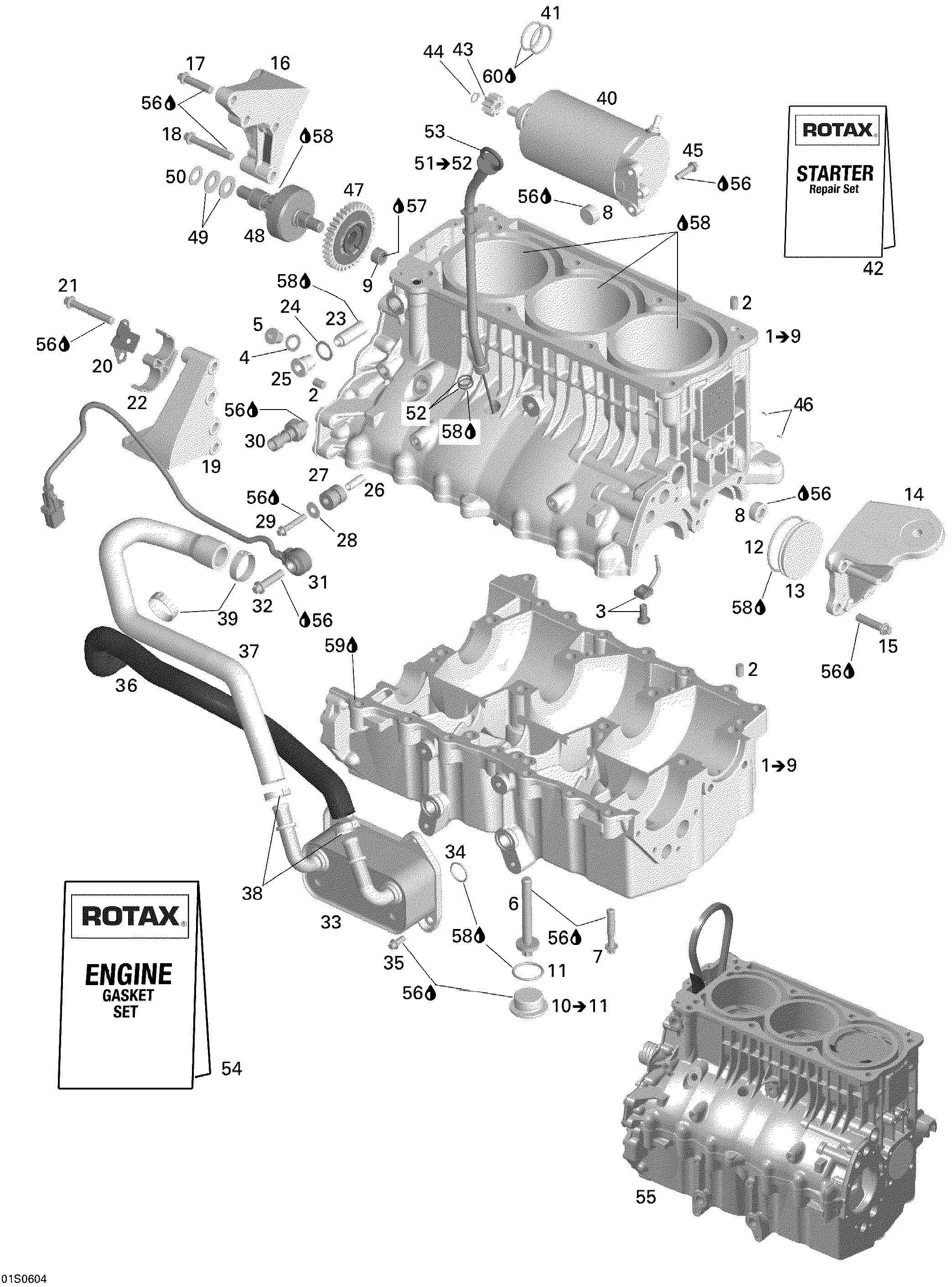

01- Engine Block для BRP GTX 4-TEC, WAKE - 2006
-
№АртикулНазвание
-
1420890994 Cylinder Block With Sleeves. Includes 1 to 9Cylinder Block With Sleeves. Includes 1 to 9
-
2420632010 Pin 8 X 12Pin 8 X 12
-
3420956776 Oil Hole AdaptorOil Hole Adaptor
-
4420250015 Sealing RingSealing Ring
-
5420841923 Plug Screw M12Plug Screw M12
-
6420641120 Torx Screw M10 X 82Torx Screw M10 X 82
-
7420940077 Torx Flanged Screw M8 X 45Torx Flanged Screw M8 X 45
-
8420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
9420232480 Needle BushingNeedle Bushing
-
10420641170 Plug Screw M30 X 1.5. Includes 10 to 11Plug Screw M30 X 1.5. Includes 10 to 11
-
11420631300 O-RingO-Ring
-
12420430405 O-RingO-Ring
-
13420660110 Plug CoverPlug Cover
-
14420811790 Front Engine BracketFront Engine Bracket
-
15420440867 Torx Flanged Screw M8 X 35Torx Flanged Screw M8 X 35
-
16420811785 Engine Bracket PTO, ExhaustEngine Bracket PTO, Exhaust
-
17420440867 Torx Flanged Screw M8 X 35Torx Flanged Screw M8 X 35
-
18420440397 Torx Flanged Screw M8 X 55Torx Flanged Screw M8 X 55
-
19420811780 Engine Bracket PTO, IntakeEngine Bracket PTO, Intake
-
20420851740 Retaining PlateRetaining Plate
-
21420440397 Torx Flanged Screw M8 X 55Torx Flanged Screw M8 X 55
-
22420660290 Hose BracketHose Bracket
-
23420236252 Chain TensionerChain Tensioner
-
24420430623 Gasket RingGasket Ring
-
25420640453 Plug Screw M16Plug Screw M16
-
26420847970 SpacerSpacer
-
27420660090 Rubber BracketRubber Bracket
-
28420827968 Flat Washer 6.4 mmFlat Washer 6.4 mm
-
29420440277 Torx Flanged Screw M6 X 35Torx Flanged Screw M6 X 35
-
30420856532 Oil Pressure SwitchOil Pressure Switch
-
31270000484 Noise SensorNoise Sensor
-
32420440867 Torx Flanged Screw M8 X 35Torx Flanged Screw M8 X 35
-
33420888850 Oil RadiatorOil Radiator
-
34420250055 O-RingO-Ring
-
35420440167 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
36420922796 Formed HoseFormed Hose
-
37420922791 Formed HoseFormed Hose
-
38420851663 Gear ClampGear Clamp
-
39420851673 Gear ClampGear Clamp
-
40420888994 Electric Starter Ass'yElectric Starter Ass'y
-
41420631310 O-RingO-Ring
-
42420664710 Carbon Brush SetCarbon Brush Set
-
43420834522 Starter Gear, 9 TeethStarter Gear, 9 Teeth
-
44420845600 Retaining RingRetaining Ring
-
45420440237 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
46420249073 Grooved PinGrooved Pin
-
47420889870 Drive Gear, 35 TeethDrive Gear, 35 Teeth
-
48420890632 Bendix StarterBendix Starter
-
49420238300 Spring DiskSpring Disk
-
50420827261 Thrust WasherThrust Washer
-
51420956944 Oil Level Tube. Includes 51 to 52Oil Level Tube. Includes 51 to 52
-
52420950810 O-RingO-Ring
-
53420956932 Oil Level GaugeOil Level Gauge
-
54420889773 Engine Gasket SetEngine Gasket Set
-
55420150311 Short BlockShort Block
-
55415150315 Engine Long Block. Not ShownEngine Long Block. Not Shown
-
56293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
57413707000 Molykote 111, 150 GMolykote 111, 150 G
-
58219700346 Engine Oil 4 Strokes, 10W40, 12 X 1 LEngine Oil 4 Strokes, 10W40, 12 X 1 L
-
59293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
60293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
