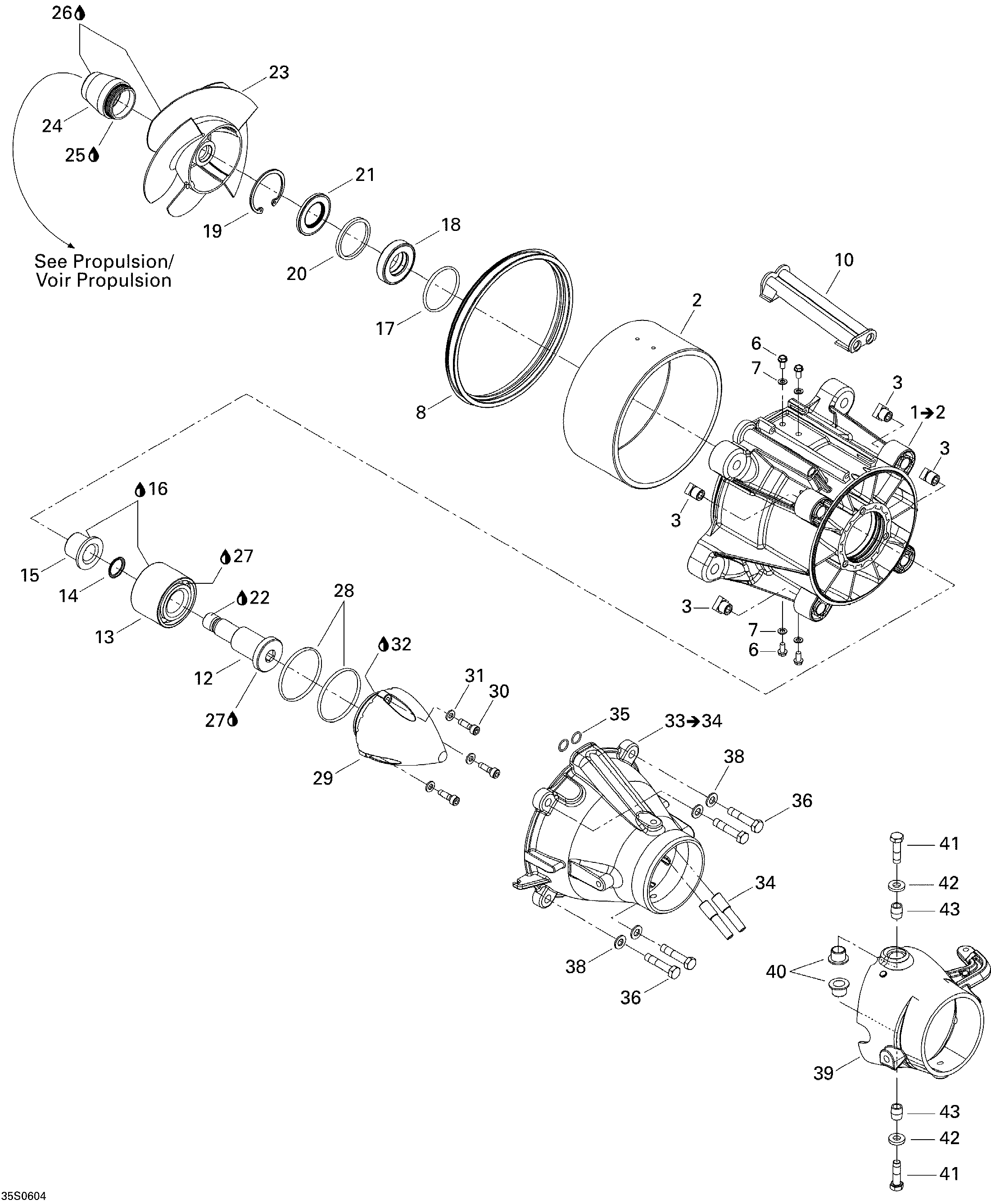

05- Pump для BRP GTX 4-TEC, WAKE - 2006
-
№АртикулНазвание
-
1267000269 Impeller Housing Ass'y. Includes 1 to 2Impeller Housing Ass'y. Includes 1 to 2
-
2267000104 Wear RingWear Ring
-
3211100033 Square Nut M8Square Nut M8
-
6250000040 Hex Plastite Screw #10 X 3/8''Hex Plastite Screw #10 X 3/8''
-
7234051600 Flat Washer 5 mmFlat Washer 5 mm
-
8293200087 Neoprene SealNeoprene Seal
-
10271000785 Water OutletWater Outlet
-
12267000054 Impeller ShaftImpeller Shaft
-
13267000030 Angled BearingAngled Bearing
-
14505070315 O-RingO-Ring
-
15267000048 Shaft SleeveShaft Sleeve
-
16293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
17293300090 O-RingO-Ring
-
18293200086 Oil SealOil Seal
-
19293370038 CirclipCirclip
-
20271001393 SpacerSpacer
-
21293200089 Oil SealOil Seal
-
22293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
23267000211 ImpellerImpeller
-
24267000206 Impeller BootImpeller Boot
-
25293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
26293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
27293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
28293300086 O-RingO-Ring
-
29267000262 Impeller CoverImpeller Cover
-
30205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
31234061600 Flat Washer 6 mmFlat Washer 6 mm
-
32293550032 Jet Pump Bearing Grease, 110 GJet Pump Bearing Grease, 110 G
-
33267000226 Venturi, BlackVenturi, Black
-
34271001133 Siphon TubeSiphon Tube
-
35293300013 O-RingO-Ring
-
36207285060 Hex Screw M8 X 50, Scotch GripHex Screw M8 X 50, Scotch Grip
-
38234081600 Flat Washer 8 mmFlat Washer 8 mm
-
39267000140 Steering Nozzle, BlackSteering Nozzle, Black
-
40293900001 Venturi BushingVenturi Bushing
-
41207383060 Hex Screw M8 X 30, Scotch GripHex Screw M8 X 30, Scotch Grip
-
42293050001 Flat WasherFlat Washer
-
43271000122 Steering Nozzle SleeveSteering Nozzle Sleeve
