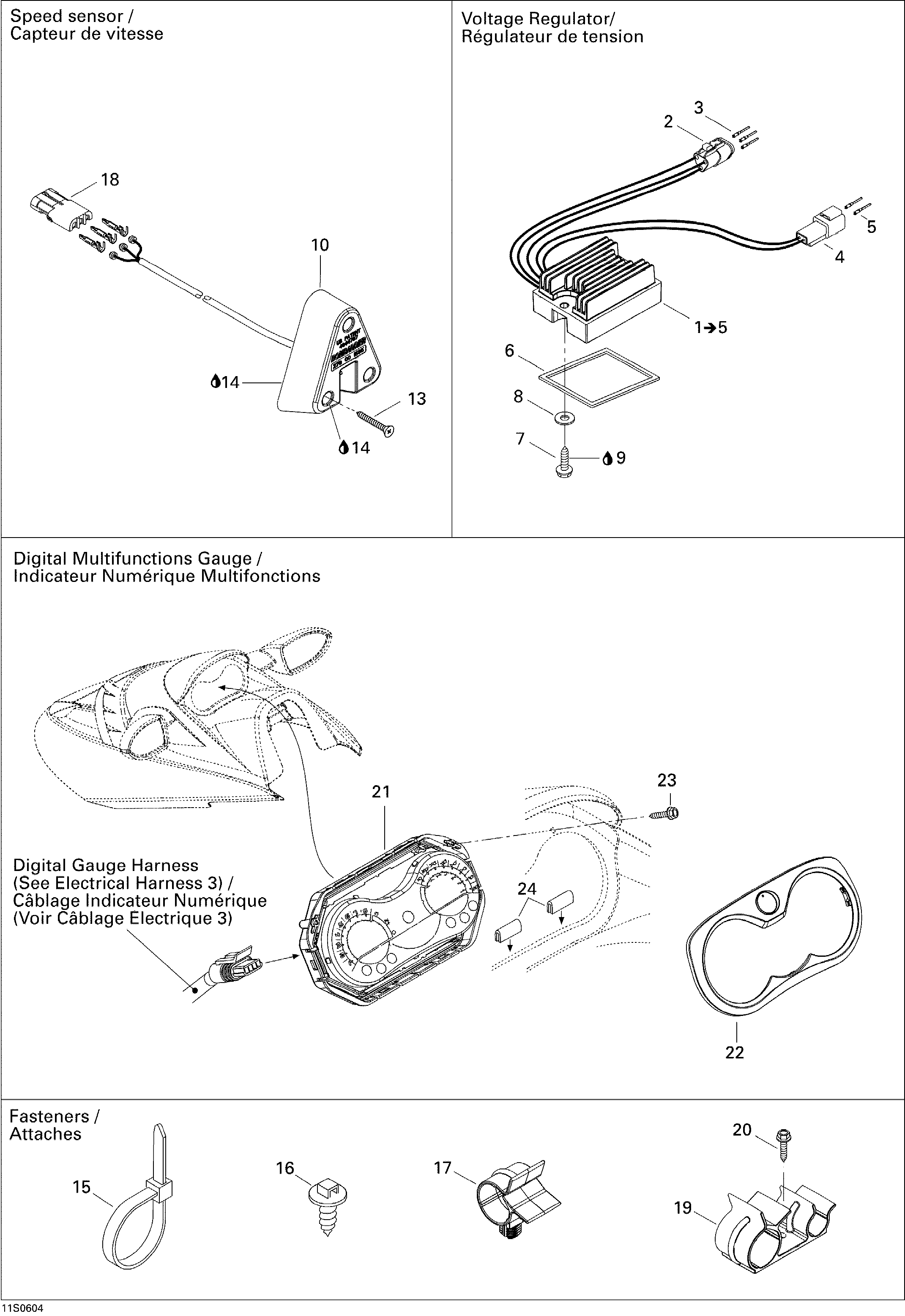

10- Electrical Accessories WAKE для BRP GTX 4-TEC, WAKE - 2006
-
№АртикулНазвание
-
1278001969 Regulator. Includes 1 to 5Regulator. Includes 1 to 5
-
2409207400 Male Connector, 3 CircuitsMale Connector, 3 Circuits
-
3278000632 Female TerminalFemale Terminal
-
4409206900 Logement Male, 2 CircuitsLogement Male, 2 Circuits
-
5515175567 Female TerminalFemale Terminal
-
6293250123 SealSeal
-
7211000023 Hex Flanged Plastite Screw #10 X 7/8''Hex Flanged Plastite Screw #10 X 7/8''
-
8234061600 Flat Washer 6 mmFlat Washer 6 mm
-
9293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
10278001993 Speed SensorSpeed Sensor
-
13211000021 Pan Head Phillips Screw 10 X 7/8''Pan Head Phillips Screw 10 X 7/8''
-
14296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
15293750002 Tie-rap 130 mmTie-rap 130 mm
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
15293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
16293730018 Mount DartMount Dart
-
17275500527 RetainerRetainer
-
18278000281 Female Connector, 3 CircuitsFemale Connector, 3 Circuits
-
19275500553 RetainerRetainer
-
20241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
21278002107 Digital Multifunction GaugeDigital Multifunction Gauge
-
22278002135 Gauge Bezel. WAKEGauge Bezel. WAKE
-
23241142560 Hex Flanged Screw K40 X 25Hex Flanged Screw K40 X 25
-
24293830113 TrimTrim
