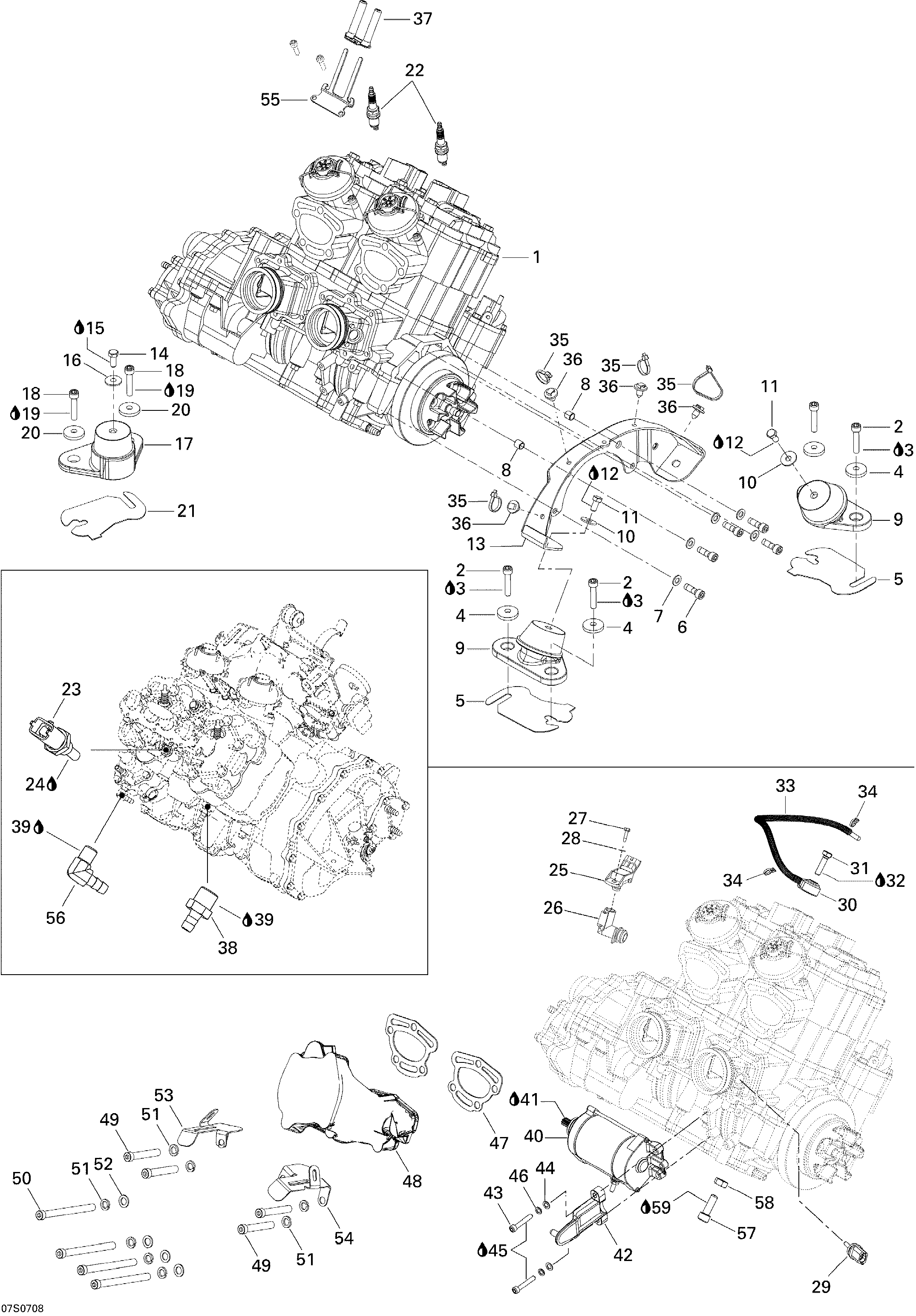

01- Engine для BRP 3D 947 DI - 2007
-
№АртикулНазвание
-
1270000662 Engine 947 DiEngine 947 Di
-
2205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4250200018 Cone WasherCone Washer
-
5270000446 Shim 1.3 mmShim 1.3 mm
-
6205582560 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
7234081600 Flat Washer 8 mmFlat Washer 8 mm
-
8270000453 BushingBushing
-
9270000666 Rubber MountRubber Mount
-
10234082600 Flat Washer 8 mmFlat Washer 8 mm
-
11207181660 Hex Screw M8 X 16Hex Screw M8 X 16
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13270000656 Engine SupportEngine Support
-
14207182060 Hex Screw M8 X 20Hex Screw M8 X 20
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16234082600 Flat Washer 8 mmFlat Washer 8 mm
-
17270000663 Rubber MountRubber Mount
-
18205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20250200018 Cone WasherCone Washer
-
21270000446 Shim 1.3 mmShim 1.3 mm
-
22278001650 Spark Plug NGK Zfr4f-11Spark Plug NGK Zfr4f-11
-
23278001016 Temperature SensorTemperature Sensor
-
24293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
25270600040 Pressure SensorPressure Sensor
-
26270600019 Valve AdaptorValve Adaptor
-
27243041660 Hex Plastite Screw M4.8 X 16Hex Plastite Screw M4.8 X 16
-
28211200035 Flat WasherFlat Washer
-
29270600000 Air Temperature SensorAir Temperature Sensor
-
30270000484 Noise SensorNoise Sensor
-
31207183060 Hex Screw M8 X 30Hex Screw M8 X 30
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33515175442 Tubing 6 mmTubing 6 mm
-
34293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293730018 Mount DartMount Dart
-
37278001512 InsulatorInsulator
-
38293710066 Male ConnectorMale Connector
-
39293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
40278001937 Starter Ass'y, BlackStarter Ass'y, Black
-
41293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
42273000227 Air Silencer SupportAir Silencer Support
-
43205063560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
44234061600 Flat Washer M6Flat Washer M6
-
45293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
46234161601 Lock Washer Helical M6Lock Washer Helical M6
-
47420931653 Gasket, Exhaust ManifoldGasket, Exhaust Manifold
-
48420979607 Exhaust ManifoldExhaust Manifold
-
49205006060 Socket Head Screw M10 X 60Socket Head Screw M10 X 60
-
50420941483 Socket Head Screw M10 X 110Socket Head Screw M10 X 110
-
51234101601 Helicoidal Lock Washer M10Helicoidal Lock Washer M10
-
52234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
53273000170 Duct Support, MagDuct Support, Mag
-
54273000169 Duct Support, PTODuct Support, PTO
-
55278001662 Ground PlateGround Plate
-
56293700016 Elbow FittingElbow Fitting
-
57205003060 Socket Screw M10 X 30Socket Screw M10 X 30
-
58232001600 Hex Nut M10Hex Nut M10
-
59293800005 Loctite 271, 10 mlLoctite 271, 10 ml
