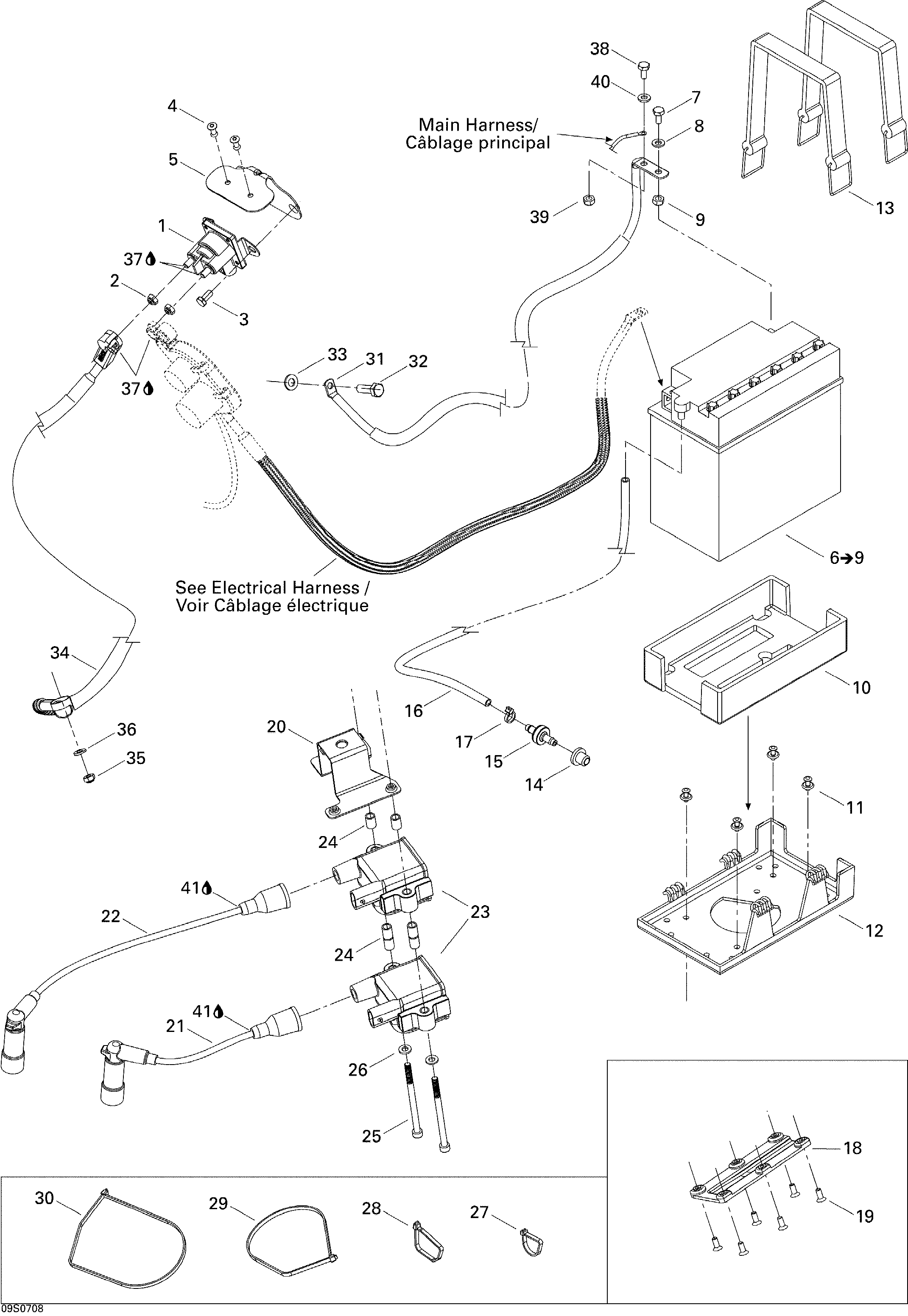

10- Electrical System для BRP 3D 947 DI - 2007
-
№АртикулНазвание
-
1278001802 Relay StarterRelay Starter
-
2232561600 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
3207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
4293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
5278002096 Relay SupportRelay Support
-
6278001756 Battery. Includes 6 to 9Battery. Includes 6 to 9
-
7207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
8211200018 Flat Washer 6 mmFlat Washer 6 mm
-
9232061414 Hex Nut M6Hex Nut M6
-
10278001976 Lower Battery PadLower Battery Pad
-
11293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
12278001972 Battery SupportBattery Support
-
13293850097 Rubber StrapRubber Strap
-
14293720029 GrommetGrommet
-
15275500499 Check ValveCheck Valve
-
16275500446 Hose 6 mmHose 6 mm
-
17293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
18291002035 Shoe Ride CapShoe Ride Cap
-
19250000020 Phillips Screw M5 X 10Phillips Screw M5 X 10
-
20278002108 Ignition Coil SupportIgnition Coil Support
-
21278002100 Ignition WireIgnition Wire
-
22278002099 Ignition WireIgnition Wire
-
23278001451 Ignition CoilIgnition Coil
-
24278000644 SpacerSpacer
-
25205569060 Socket Head Screw M6 X 90, Scotch GripSocket Head Screw M6 X 90, Scotch Grip
-
26234061600 Flat Washer M6Flat Washer M6
-
27293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
28293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
31278001592 Battery Ground Cable Ass'yBattery Ground Cable Ass'y
-
32207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
33234061600 Flat Washer M6Flat Washer M6
-
34278002138 Starter CableStarter Cable
-
35232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
36234061600 Flat Washer M6Flat Washer M6
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38207161260 Hex Cap Screw M6 X 12Hex Cap Screw M6 X 12
-
39232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
40234061600 Flat Washer M6Flat Washer M6
-
41413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
