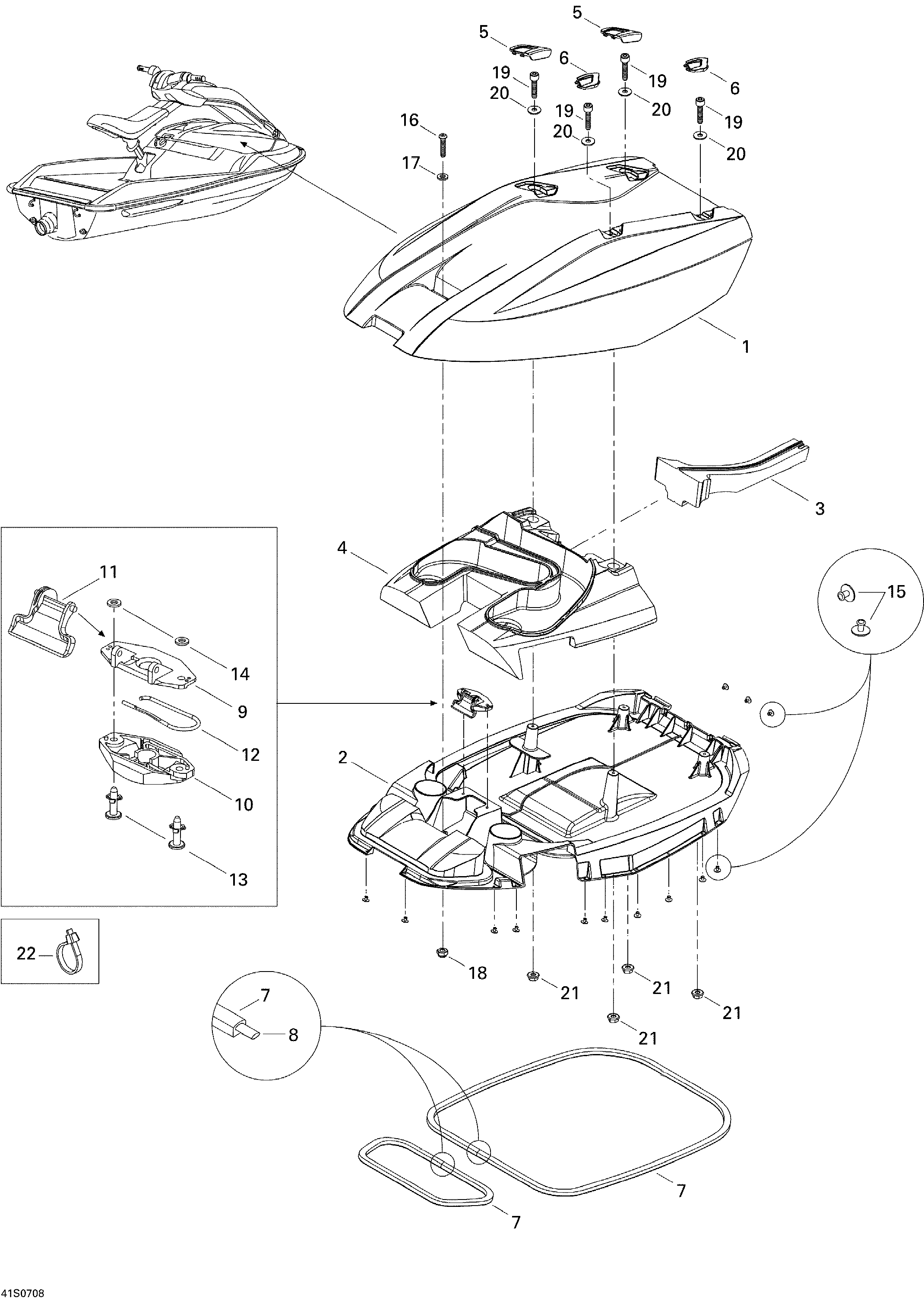

09- Engine Cover для BRP 3D 947 DI - 2007
-
№АртикулНазвание
-
1269700095 Upper Engine Cover, Viper RedUpper Engine Cover, Viper Red
-
2269700084 Lower Engine CoverLower Engine Cover
-
3269700093 Front Ventilation BaffleFront Ventilation Baffle
-
4269700094 Rear Ventilation BaffleRear Ventilation Baffle
-
5269700096 LH Bolt Cover, Viper RedLH Bolt Cover, Viper Red
-
6269700097 RH Bolt Cover, Viper RedRH Bolt Cover, Viper Red
-
7293200093 Neoprene SealNeoprene Seal
-
8515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
9269700076 Latch CoverLatch Cover
-
10269000015 Latch BaseLatch Base
-
11269700077 Latch LeverLatch Lever
-
12269700017 Latch SpringLatch Spring
-
13293150074 Pop RivetPop Rivet
-
14234061600 Flat Washer M6Flat Washer M6
-
15293150092 Pop Rivet 3/16''Pop Rivet 3/16''
-
16205452560 Socket Screw M5 X 25Socket Screw M5 X 25
-
17234052600 Flat Washer 5 mmFlat Washer 5 mm
-
18232551600 Hex Elastic Nut M5Hex Elastic Nut M5
-
19250000076 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
20234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
21233161600 Hex Flanged Nut M6Hex Flanged Nut M6
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
