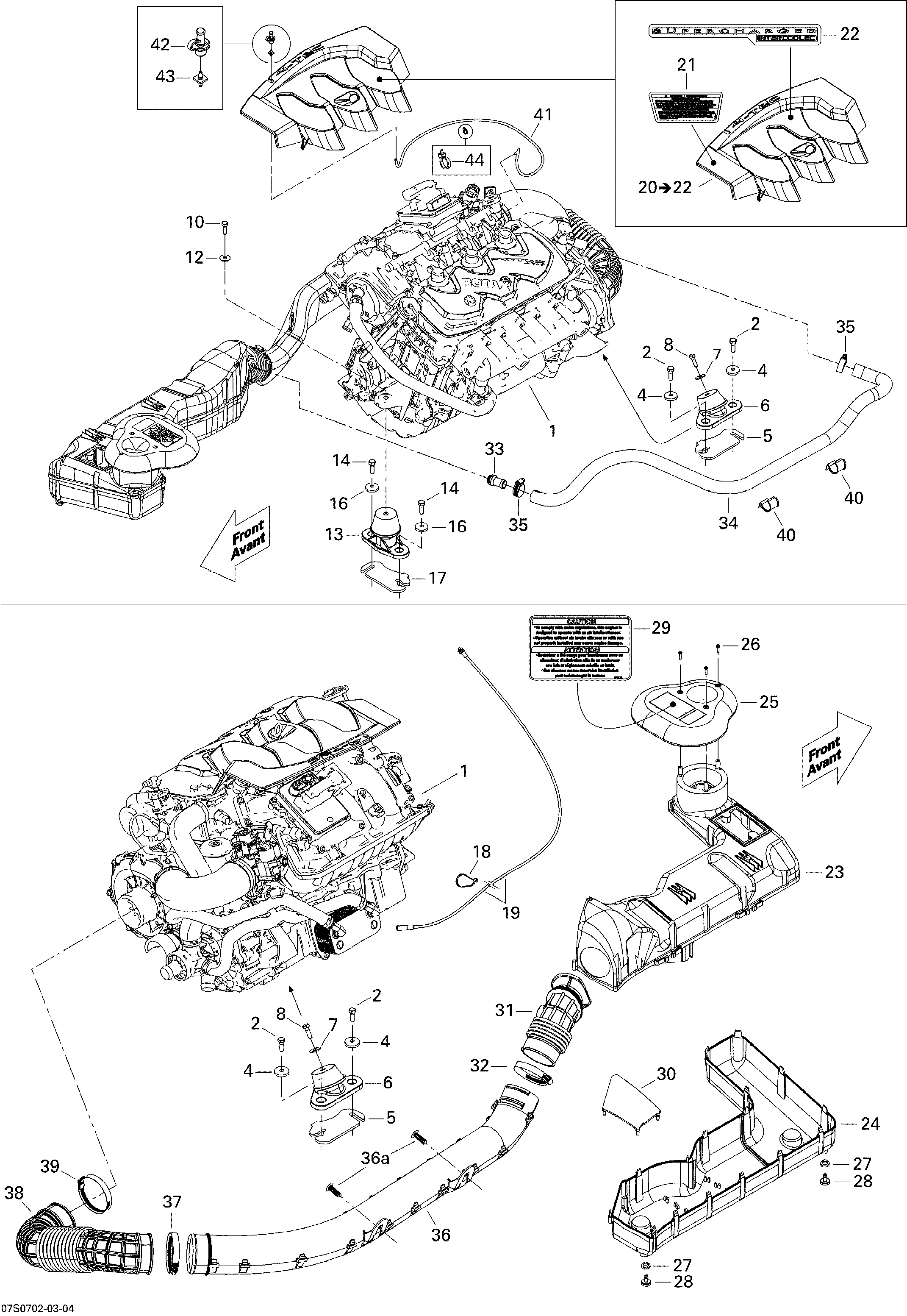

01- Engine And Air Intake Silencer для BRP GTX LTD - 2007
-
№АртикулНазвание
-
1270000686 Rotax Engine 1503 BVICRotax Engine 1503 BVIC
-
2207284060 Hex Screw M8 X 40, Scotch GripHex Screw M8 X 40, Scotch Grip
-
4250200018 Cone WasherCone Washer
-
5270000446 Shim 1.3 mmShim 1.3 mm
-
6270000669 Rubber MountRubber Mount
-
7234082600 Flat Washer 8 mmFlat Washer 8 mm
-
8207382560 Hex Screw M8 X 25, Scotch GripHex Screw M8 X 25, Scotch Grip
-
10207382560 Hex Screw M8 X 25, Scotch GripHex Screw M8 X 25, Scotch Grip
-
12234082600 Flat Washer 8 mmFlat Washer 8 mm
-
13270000690 Rubber MountRubber Mount
-
14207284060 Hex Screw M8 X 40, Scotch GripHex Screw M8 X 40, Scotch Grip
-
16250200018 Cone WasherCone Washer
-
17270000446 Shim 1.3 mmShim 1.3 mm
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19277001121 Throttle CableThrottle Cable
-
20270000679 Cover Ass'yCover Ass'y
-
21219902674 Warning Decal, MotorWarning Decal, Motor
-
22219902676 Identification Decal, Motor ScicIdentification Decal, Motor Scic
-
23273000222 Upper Air SilencerUpper Air Silencer
-
24273000190 Air Silencer LowerAir Silencer Lower
-
25273000192 Air Silencer CoverAir Silencer Cover
-
26241141660 Flanged Hex Screw K40 X 16Flanged Hex Screw K40 X 16
-
27293720064 GrommetGrommet
-
28275500454 Check ValveCheck Valve
-
29219902673 Instruction Label, Air SilencerInstruction Label, Air Silencer
-
30273000206 DeflectorDeflector
-
31273000186 Intake HoseIntake Hose
-
32293650179 Tridon Gear ClampTridon Gear Clamp
-
33273000234 BreatherBreather
-
34270000629 Formed HoseFormed Hose
-
35293650051 Tridon Gear ClampTridon Gear Clamp
-
36273000233 Hose IntakeHose Intake
-
36a293730006 Black DartBlack Dart
-
37293650179 Tridon Gear ClampTridon Gear Clamp
-
38273000188 Intake HoseIntake Hose
-
39293650179 Tridon Gear ClampTridon Gear Clamp
-
40275500664 RetainerRetainer
-
41270000469 Hose 3 mmHose 3 mm
-
42293830115 Grommet CapGrommet Cap
-
43293710107 ConnectorConnector
-
44293750002 Tie-Rap 130 mmTie-Rap 130 mm
