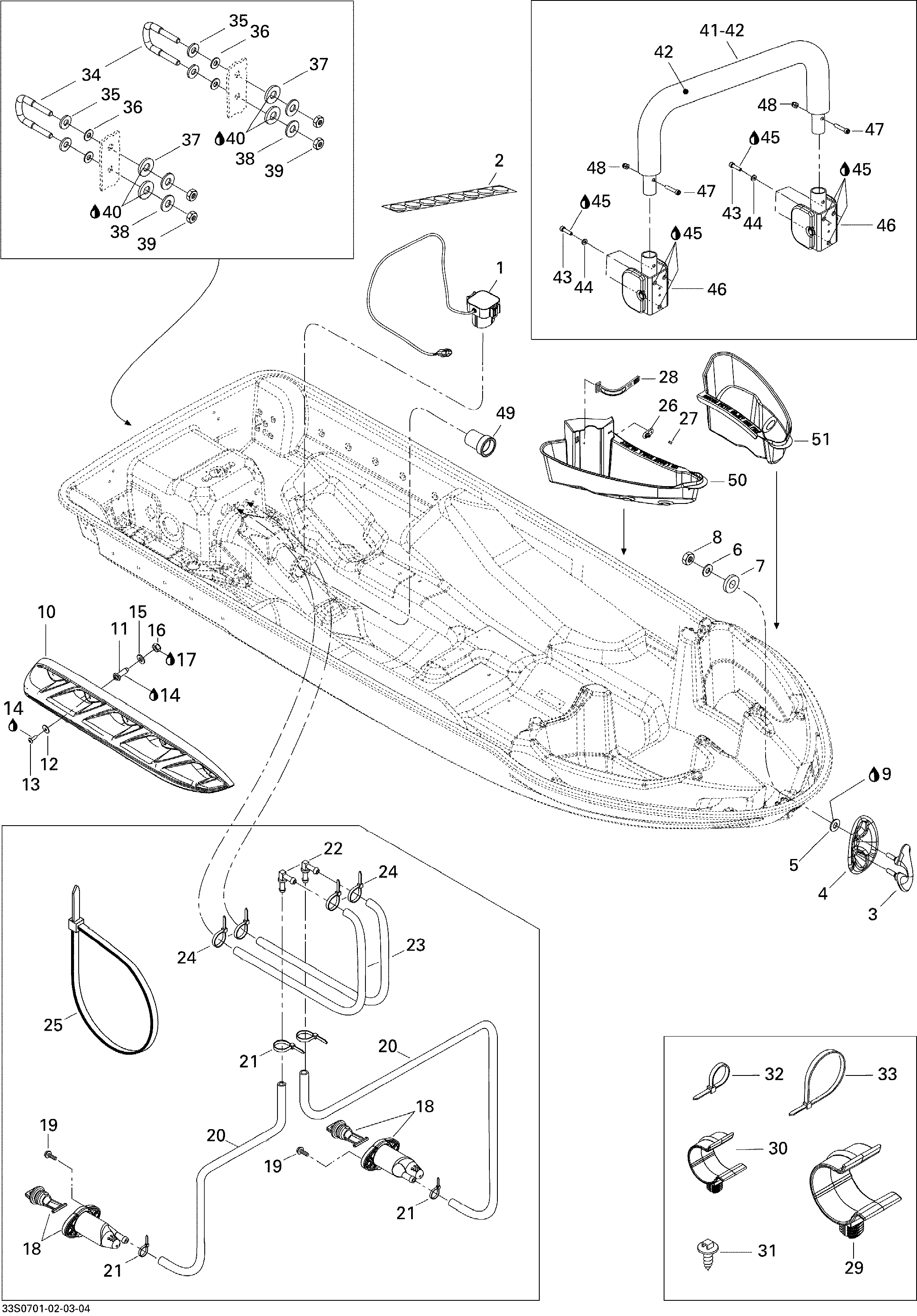

09- Hull для BRP GTX LTD - 2007
-
№АртикулНазвание
-
1278001995 Depth SensorDepth Sensor
-
2293550042 Gel PadGel Pad
-
3292000708 Bow Eye Ass'y, BlackBow Eye Ass'y, Black
-
4292000453 Shell, BlackShell, Black
-
5234081600 Flat Washer 8 mmFlat Washer 8 mm
-
6250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
7293830037 Rubber WasherRubber Washer
-
8232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
9296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
10292001174 RH SponsonRH Sponson
-
10292001175 LH SponsonLH Sponson
-
11292001046 Sponson AdapterSponson Adapter
-
12250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
13250000299 Torx Screw M6.6 x 20, StainlessTorx Screw M6.6 x 20, Stainless
-
14296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
15250200053 Flat Washer M12Flat Washer M12
-
16250100078 Elastic Stop Nut M12Elastic Stop Nut M12
-
17293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
18292001075 Drain Plug Ass'yDrain Plug Ass'y
-
19211000023 Hex Screw 10-14 X 7/8''Hex Screw 10-14 X 7/8''
-
20275000007 Hose 8 mmHose 8 mm
-
21293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
22293710117 Elbow Fitting 90°Elbow Fitting 90°
-
23275000007 Hose 8 mmHose 8 mm
-
24293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
25293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30275500527 RetainerRetainer
-
31293730040 Mount DartMount Dart
-
32414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
33293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
34292000933 U-ClampU-Clamp
-
35293050001 Flat WasherFlat Washer
-
36234081100 Flat Washer 8 mmFlat Washer 8 mm
-
37293830037 Rubber WasherRubber Washer
-
38250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
39232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
40296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
41292001038 Ladder Tube Ass'yLadder Tube Ass'y
-
42292001067 Protective SleeveProtective Sleeve
-
43250000076 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
44234061600 Flat Washer M6Flat Washer M6
-
45293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
46292001115 Stair SupportStair Support
-
47250000288 Socket Head Screw din 912a2 Scotch GripSocket Head Screw din 912a2 Scotch Grip
-
48232361600 Nut M6Nut M6
-
49292000975 Hull Insert, 41 mmHull Insert, 41 mm
-
50292001158 RH Storage TrayRH Storage Tray
-
51292001159 LH Storage TrayLH Storage Tray
